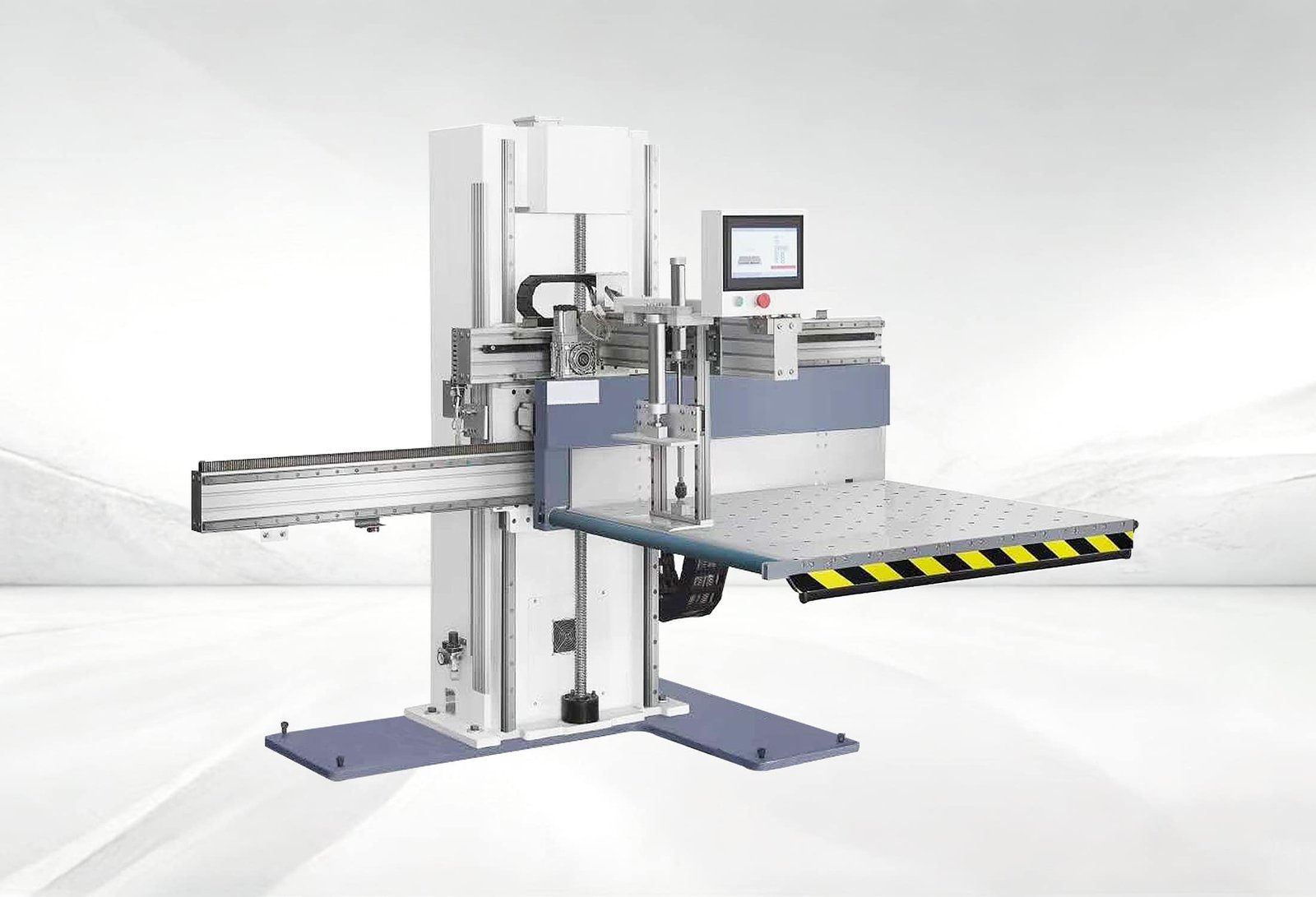

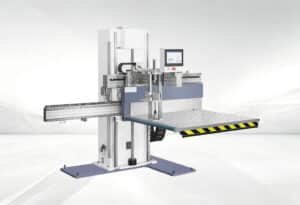

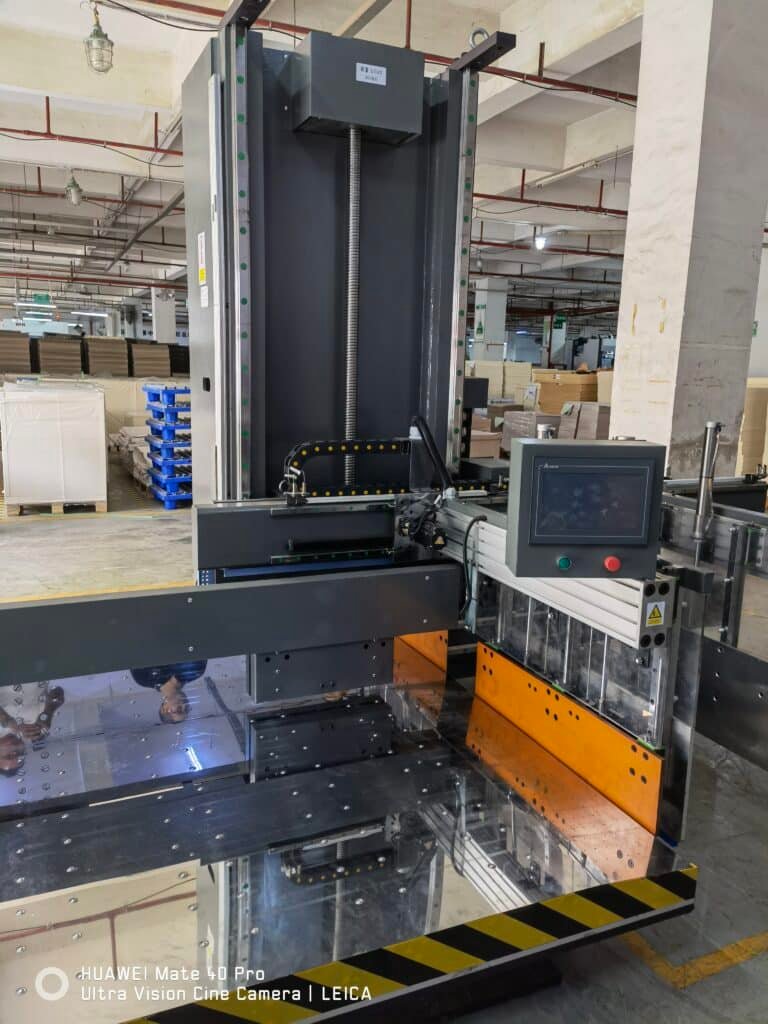

LD-2 Automatic loader machine

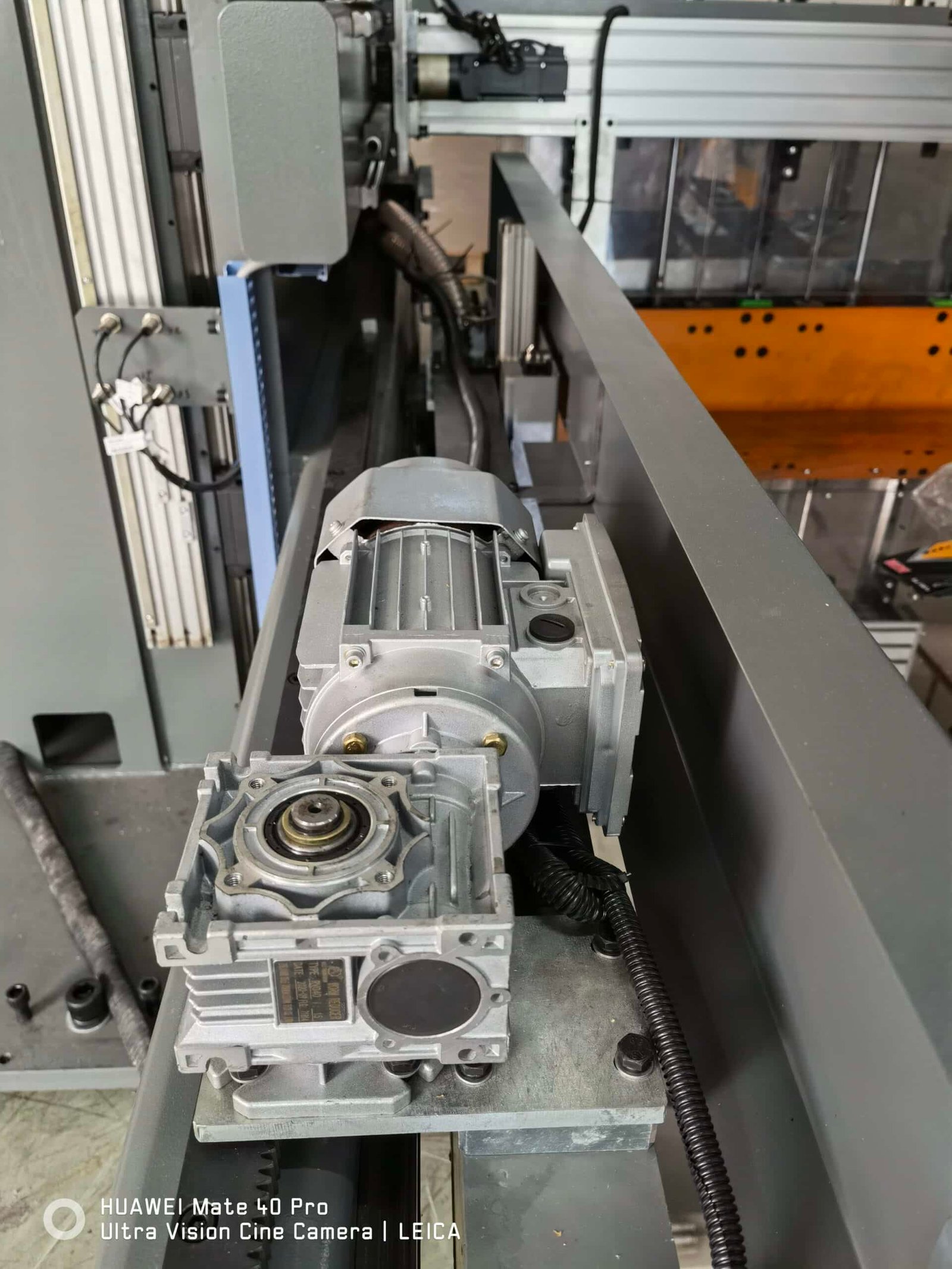

The machine worktable is equipped with an air cushion device, and the lifting process is driven by a variable frequency drive through a worm gear reducer and a linear double guide rail with ball screws, ensuring accurate and smooth movement of the worktable. The worktable is driven by a variable frequency drive to move left and right, driven by a worm gear reducer and a gear rack transmission. The linear double guide rail slider positioning makes the worktable move easily and freely. The paper is driven by Delta servo system. This machine has the advantages of automatic, accurate, and efficient paper feeding.
Computer section:
Adopting German control and feedback systems, drawing on the smooth and efficient technology of high-speed rail. Zifeng has developed control hardware that overcomes interference and ensures stability
Infrared position detection device accurately detects the position of the paper, ensuring that the paper is not sandwiched between paper rolls and neatly stacked. Anti collision flexible bumper effectively prevents accidental impacts during machine movement.
Optimized the design of overweight safety parking protection. The work platform is equipped with a blowing structure, which facilitates paper loading, feeding, and pushing. The chrome plated work platform saves users maintenance time.
The paper feeding, unloading, and stacking functions quickly remove the paper from the workbench and stack it neatly in the designated position, greatly reducing the labor intensity of workers.
