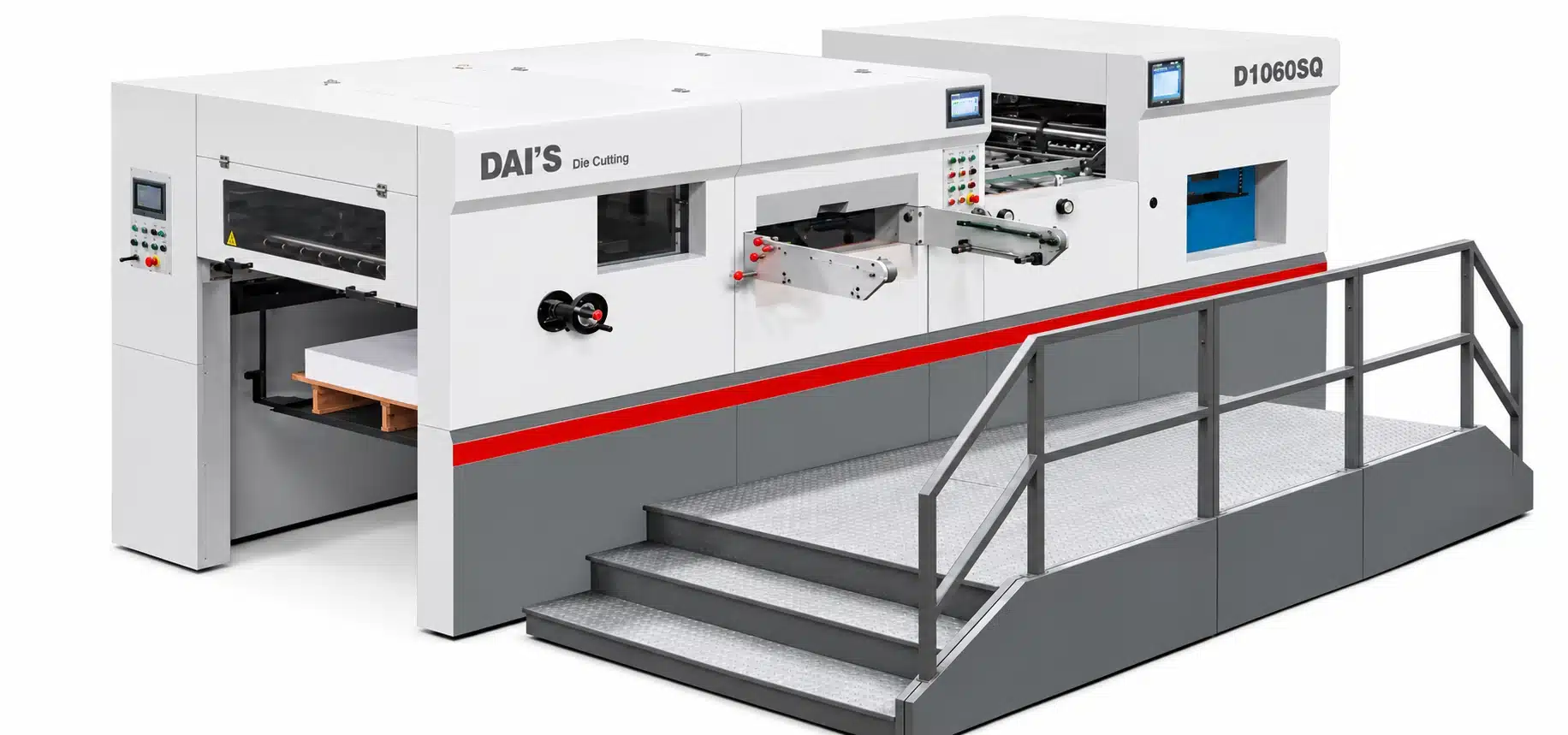

D1060Q Automatic Die Cutting Machine with Waste Stripping
The DAIS D1060Q is a high-performance flatbed die cutting machine designed for packaging manufacturers requiring precise cutting, reliable waste stripping performance, and stable long-term production efficiency.
With advanced mechanical structure, high-strength components, and intelligent control systems, the D1060Q provides a dependable solution for carton, corrugated packaging, and printed paper product manufacturers.
D1060Q Automatic Die Cutting Machine for Efficient Packaging Production
The DAIS D1060Q Automatic Die Cutting Machine with Waste Stripping is developed for packaging manufacturers who need high precision, stable operation, and improved production efficiency.
As an advanced flatbed die cutting machine, the D1060Q integrates automatic paper feeding, precision die cutting, optional waste stripping, and automated paper receiving systems into one complete production solution.
The machine is designed to process a wide range of packaging materials, including white board paper and corrugated board, making it suitable for folding carton manufacturing, food packaging, pharmaceutical packaging, and general paper product production.
With a maximum paper size of 1060 × 770 mm, a maximum die cutting size of 1050 × 760 mm, and cutting accuracy up to ±0.1 mm, the D1060Q helps manufacturers achieve consistent quality while improving production efficiency.
Designed as an integrated automatic flatbed die cutting platform for precise sheet handling, die cutting, optional waste stripping, and organized delivery.
D1060Q Automatic Die Cutting Machine Specifications
Core operating parameters of the D1060Q automatic flatbed die cutting machine with optional waste stripping configuration.
| Parameter | Specification |
|---|---|
| Machine Type | Automatic Flatbed Die Cutting Machine |
| Waste Stripping Function | Optional Waste Stripping System |
| Maximum Paper Size | 1060 × 770 mm |
| Maximum Die Cutting Size | 1050 × 760 mm |
| Minimum Paper Size | 400 × 260 mm |
| Maximum Working Pressure | 300 Tons |
| Applicable Materials | White Board Paper ≥100g / Corrugated Paper ≤8mm |
| Die Cutting Precision | ±0.1 mm |
| Maximum Working Speed | 7000 Sheets/Hour |
| Maximum Waste Stripping Speed | 6500 Sheets/Hour |
| Machine Weight | 16 Tons |
| Overall Dimension | 4626 × 4350 × 2325 mm |
Technical configuration may vary according to the selected machine specification and waste stripping setup.
Built for Precision, Rigidity and Reliable Industrial Production
The D1060Q combines high-strength structural components, precision transmission engineering, proven electrical components, and stable mechanical performance for demanding packaging production environments.

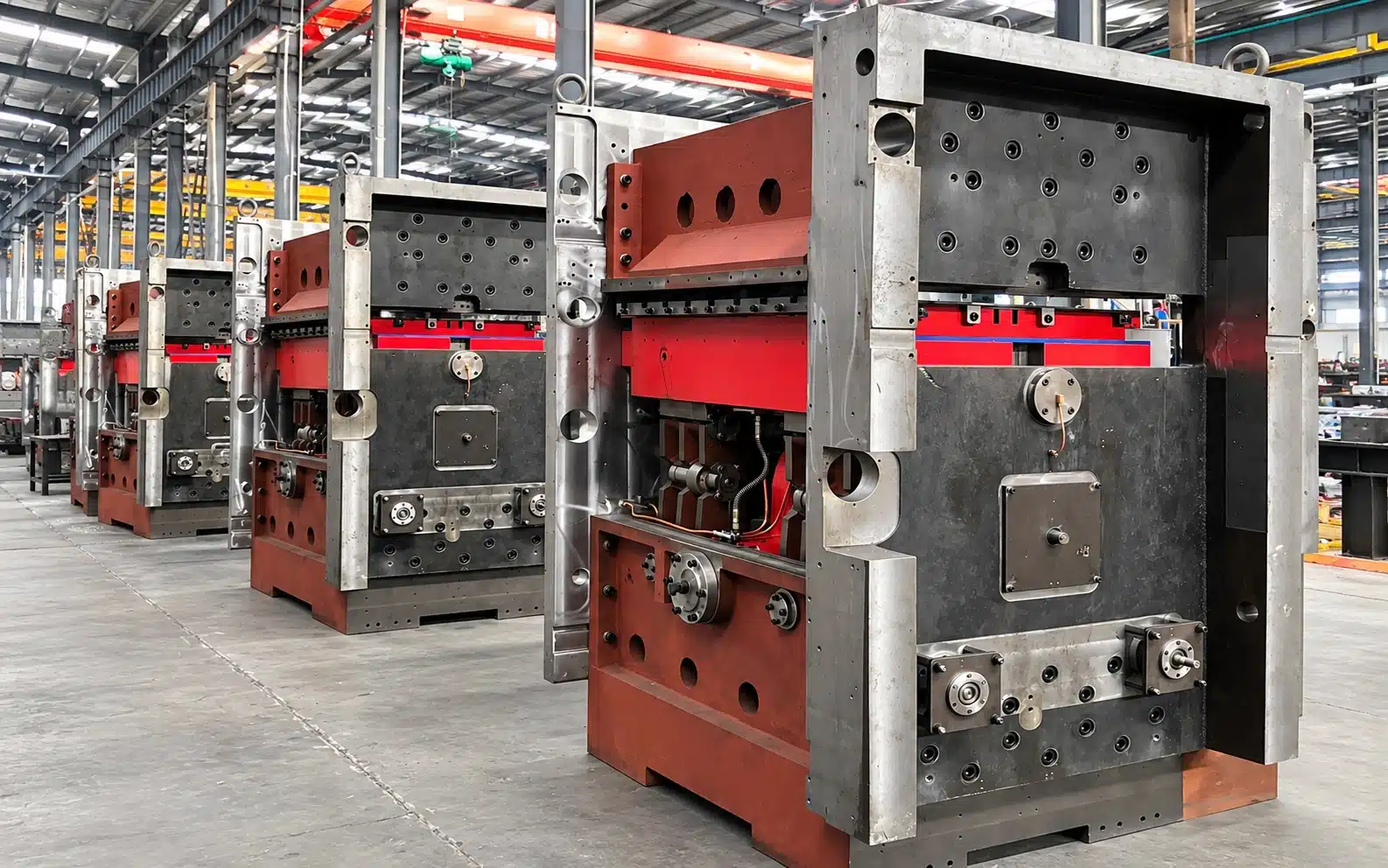

High-Strength QT600-3 Ductile Iron Structure
The machine body uses QT600-3 ductile iron, providing excellent strength, rigidity, and deformation resistance.

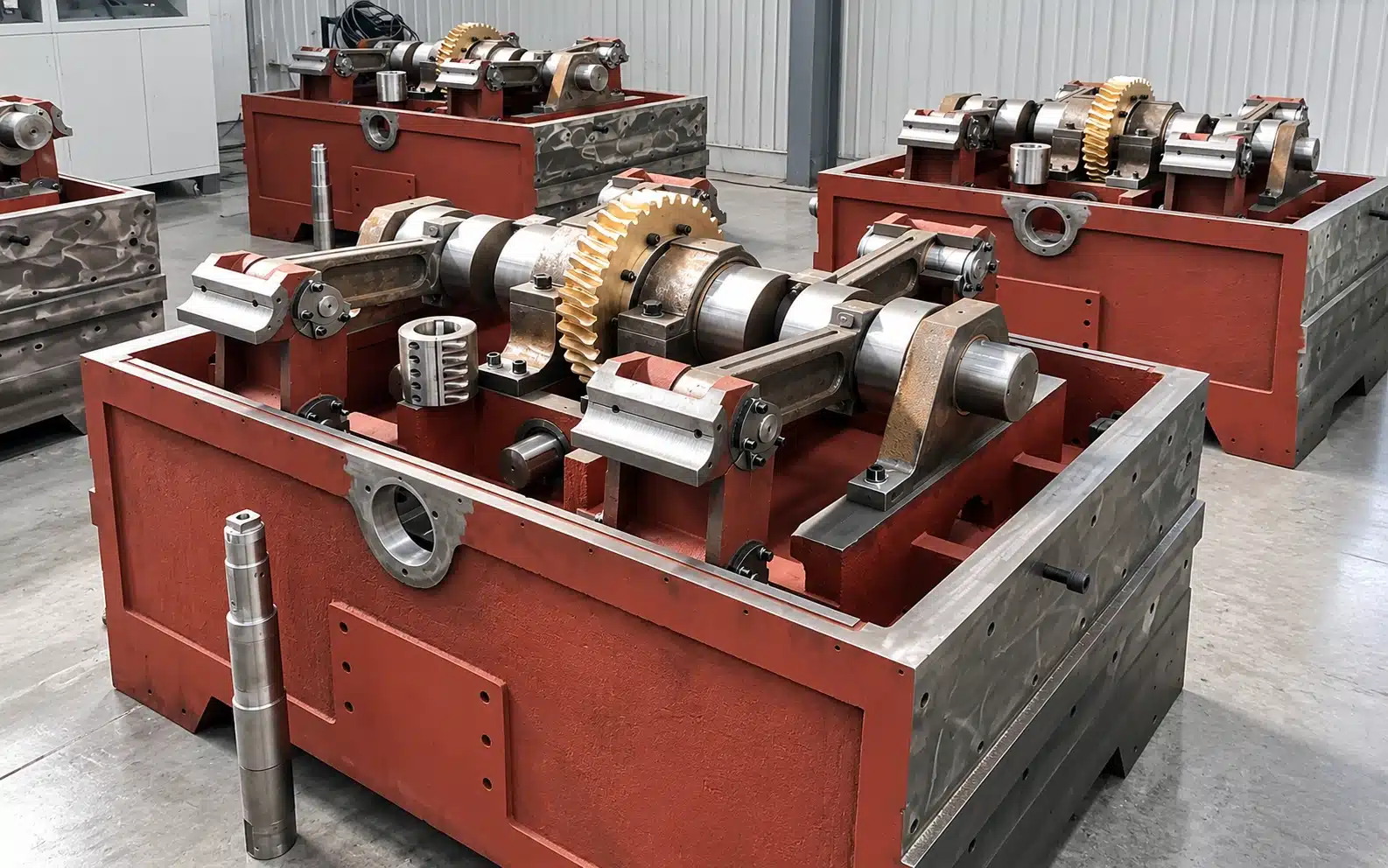

Precision Transmission System
The D1060Q uses a high-precision transmission system designed for smooth and reliable operation.
International Brand Components
The machine integrates internationally recognized components including NSK bearings, Schneider electrical components, and Omron photoelectric systems.
Stable Industrial Performance
The engineering design ensures reliable operation under demanding packaging production conditions.

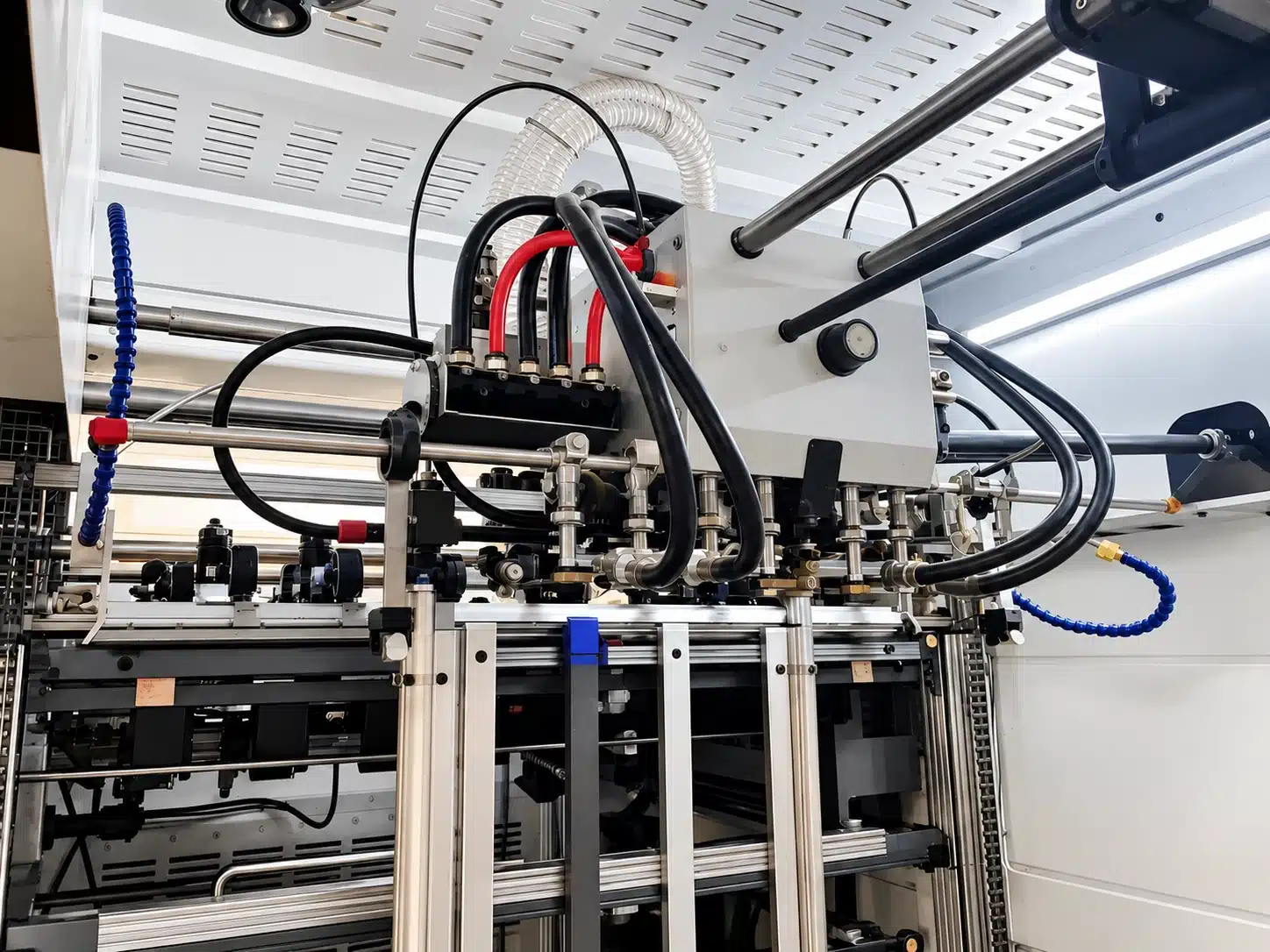

Stable Paper Feeding System for Accurate Sheet Positioning
A reliable feeding system is essential for maintaining consistent die cutting quality during high-volume packaging production.
The DAIS D1060Q adopts an advanced paper feeding system designed to improve sheet delivery stability, reduce positioning errors, and support continuous production.
Photoelectric Double Detection System
Imported Paper Conveyor Belt
Wear-Resistant Polyurethane Paper Transport Wheels
Adjustable Rubber Wheels
Brush Wheel Positioning System
Front and Side Positioning System
Powerful Die Cutting Unit with 300 Tons Working Pressure
The die cutting section is the core performance unit of an automatic die cutting machine.
The DAIS D1060Q is engineered with a high-strength mechanical structure and precision transmission system to provide stable cutting performance under demanding industrial production conditions.
QT600-3 Ductile Iron Structure
Precision Crankshaft System
High Precision Worm Gear Mechanism

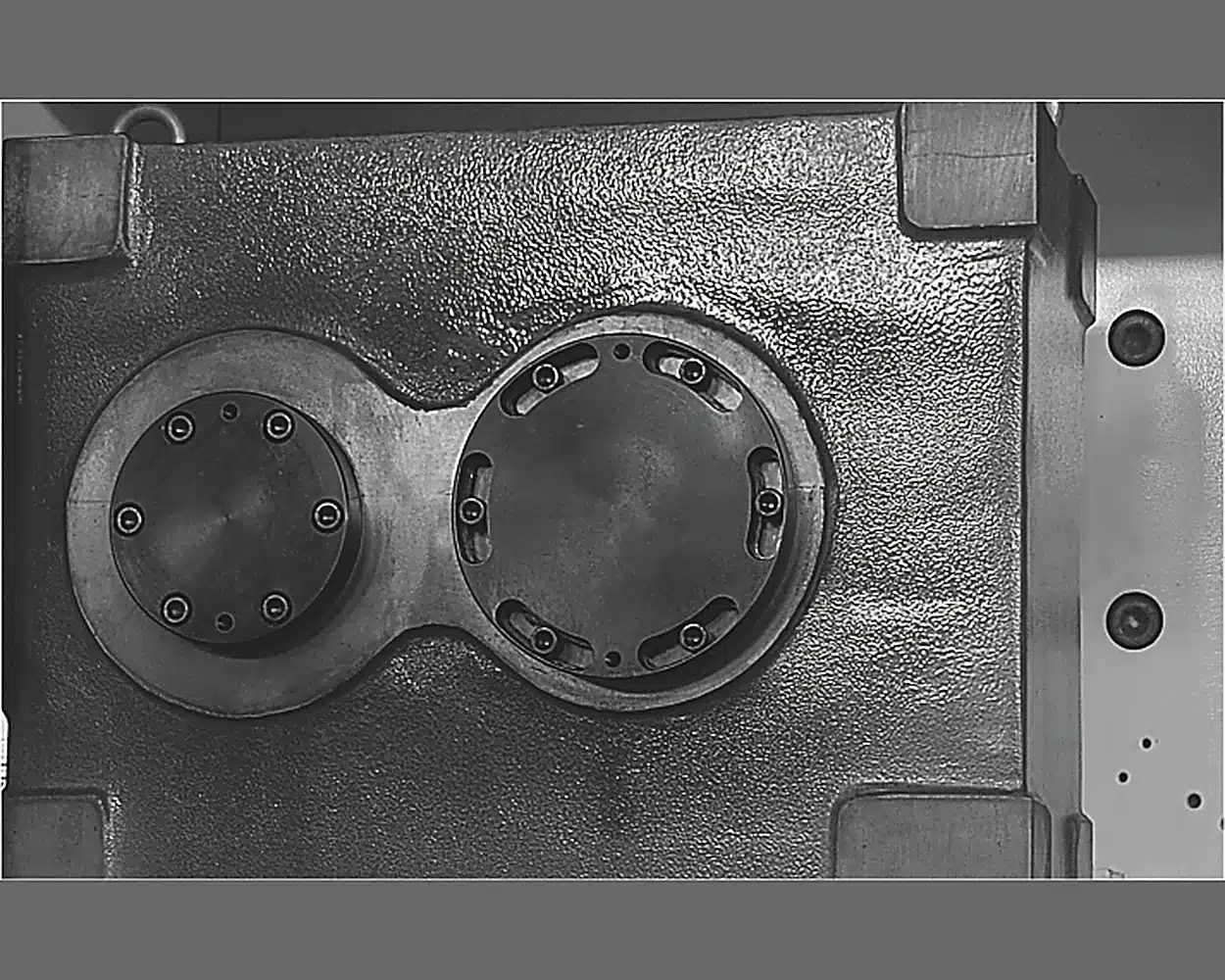

240-Degree Intermittent Mechanism
Pneumatic Locking Device
Strong Lubrication System

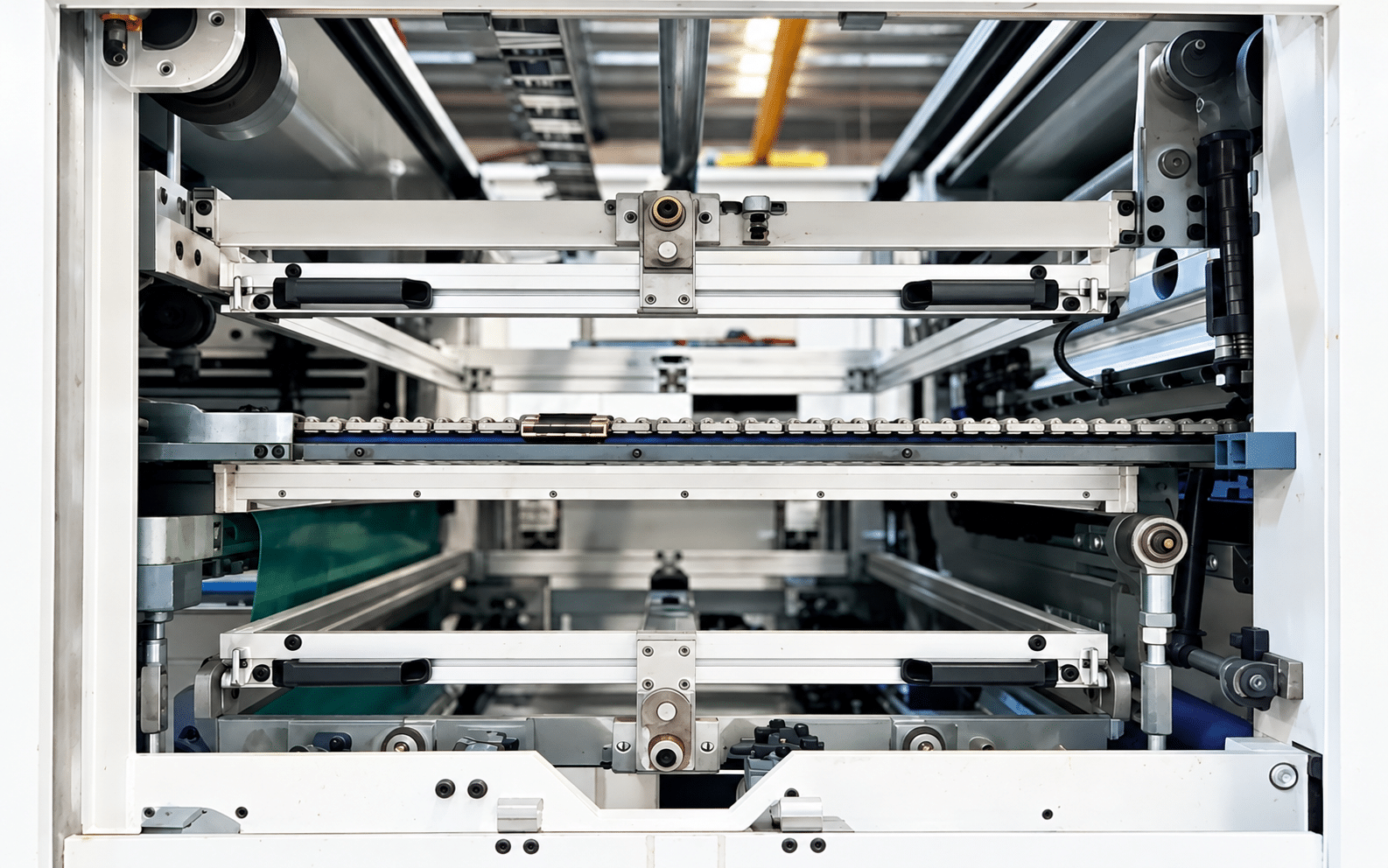

Automatic Waste Stripping System for Efficient Packaging Production
The D1060Q can be equipped with optional waste stripping systems to improve finishing efficiency after the die cutting process.
Plate Type System
Plate Waste Stripping System
Designed to remove unwanted material after precision die cutting, helping packaging manufacturers reduce manual finishing work and improve downstream production efficiency.
- Internal Small Holes
- Unwanted Waste Areas
- Outer Waste Materials
Needle Type Waste Stripping System
A three-frame stripping structure designed for convenient installation, accurate positioning, and faster production adjustment.
Three-Frame Structure
Easy Installation
Accurate Positioning
Faster Adjustment

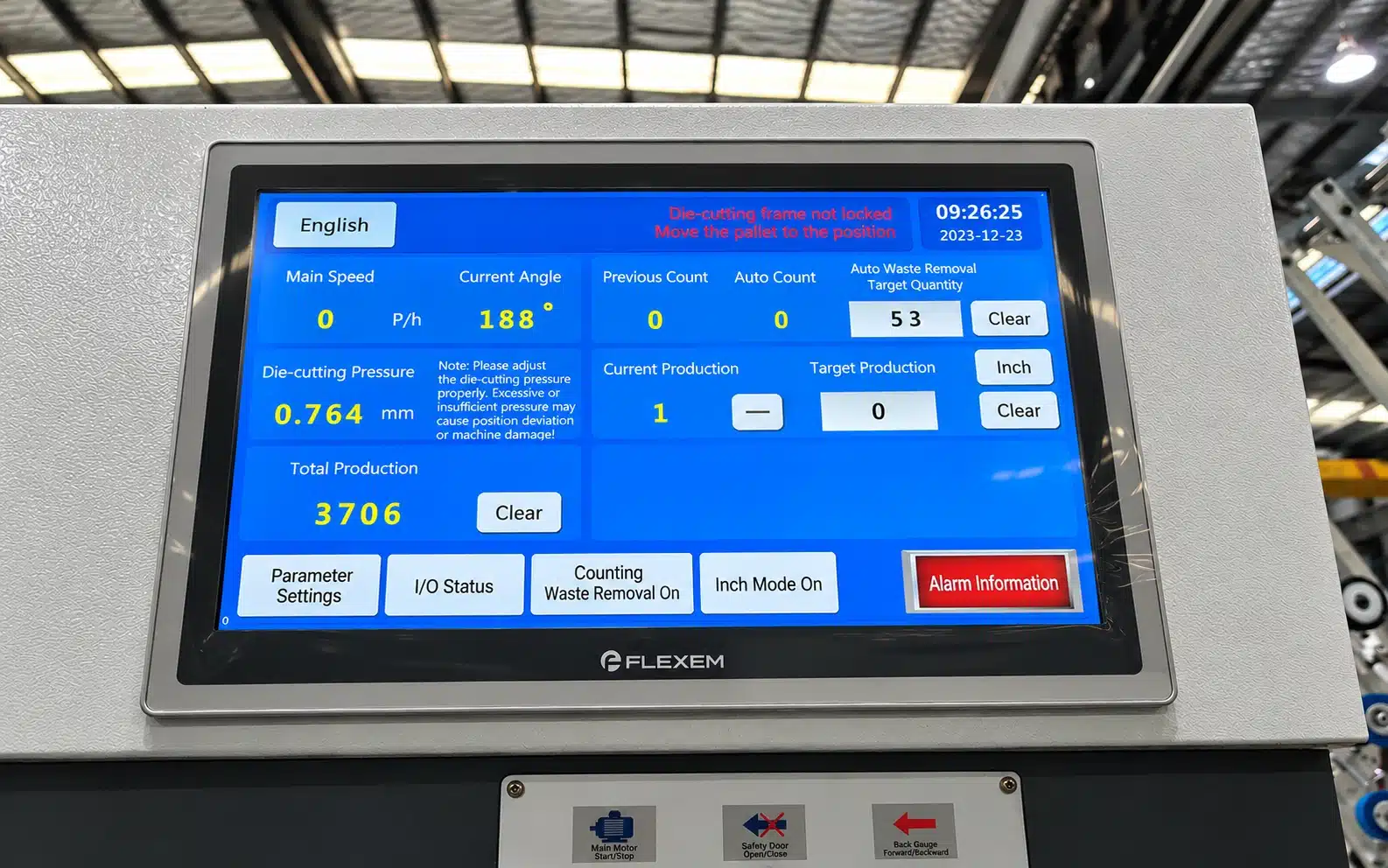

Reliable Electrical Control System for Stable Machine Operation
Core electrical, photoelectric, safety detection, and industrial control components form the control system of the D1060Q.
Schneider Electrical Components
Omron Photoelectric System
Safety Detection System
Industrial Control Modules

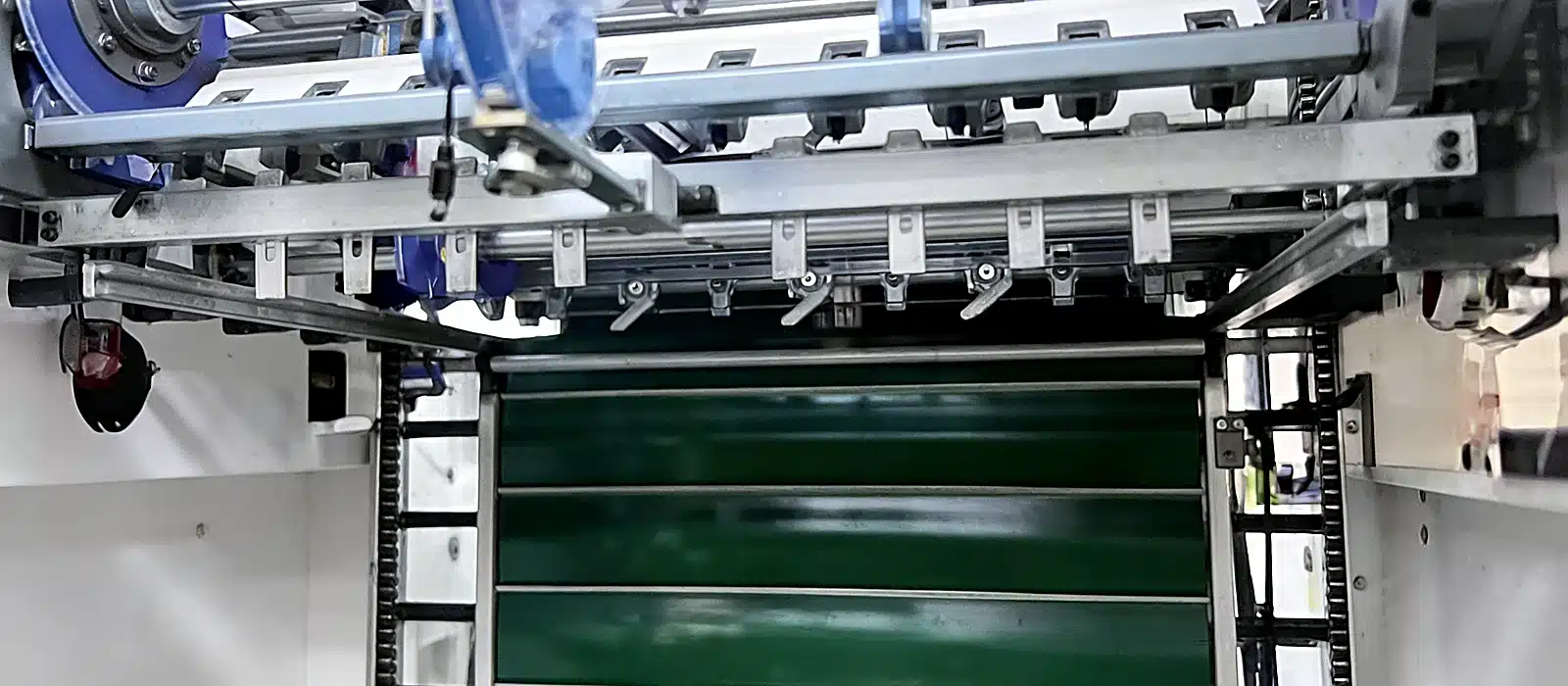

Automatic Paper Receiving System for Organized Production Output
The D1060Q receiving section combines paper leveling, airflow assistance, photoelectric detection, lifting control, and a non-stop operation device for organized sheet delivery.
Automatic Paper Leveling
Two-Way Blowing System
Photoelectric Paper Receiving Detection
Automatic Lifting Control
Non-Stop Operation Device
Applications of D1060Q Automatic Die Cutting Machine
Designed for diverse paper and corrugated packaging production, the D1060Q supports manufacturers handling precision die cutting across multiple packaging applications.
Folding Carton Manufacturing
Suitable for food boxes, pharmaceutical cartons, cosmetic packaging, and other precision folding carton products.
Corrugated Packaging Production
Supports industrial packaging, corrugated boxes, and shipping carton production requiring accurate flatbed die cutting.
Printed Paper Products
Suitable for paper displays, shaped printed materials, and specialty paper products requiring precise cutting and finishing.
Packaging Manufacturers
An automated die cutting solution for packaging manufacturers seeking stable output, precise processing, and improved production efficiency.
Manufactured by DAIS Printing Machinery — A Reliable Industrial Equipment Partner
With decades of experience in printing and post-press machinery manufacturing, DAIS specializes in professional packaging equipment and integrated production solutions.

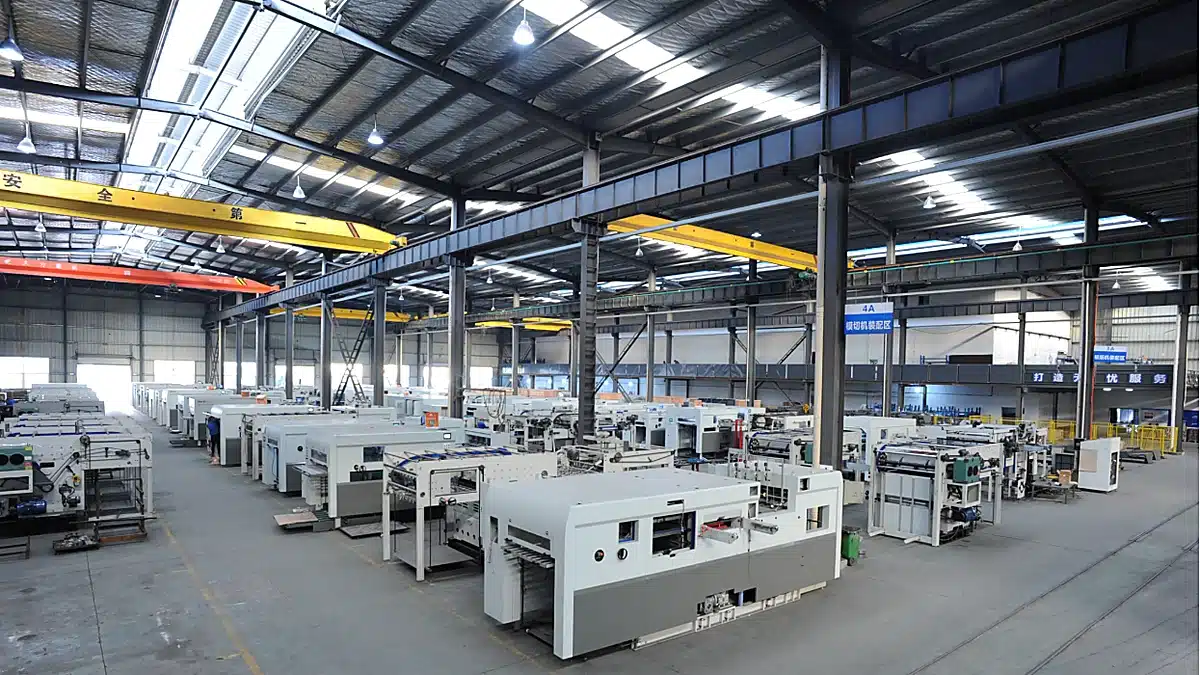

DAIS operates a 50,000 square meter manufacturing facility supported by more than 100 sets of CNC equipment, providing the machining and production capability required for large-format industrial printing and packaging machinery.

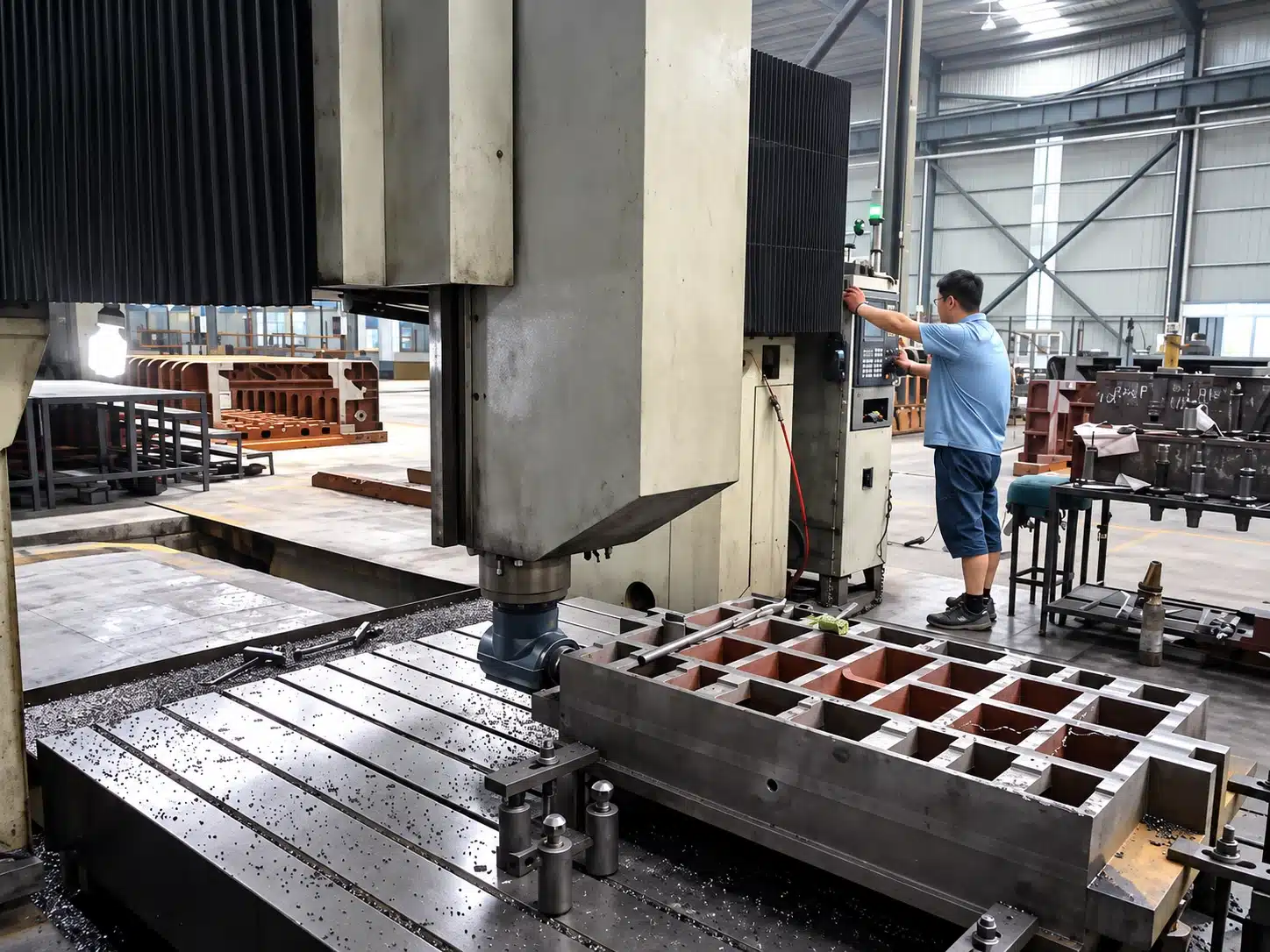

Five-Face Gantry Machining Centers
High-Precision Vertical Machining Centers
Robotic Plasma Cutting Equipment
Global Shipping Support for DAIS Industrial Machinery
DAIS provides professional export support for customers worldwide, covering machine preparation, protective packaging, transportation coordination, and installation guidance.
From Machine Inspection to Installation Guidance
Each export project follows a structured delivery process to support the transition from completed machinery to customer installation.
Machine Inspection
Equipment inspection before export preparation.
Export Preparation
Preparation of the machine for international delivery.
Protective Packaging
Protective preparation for industrial machinery transportation.
Transportation Coordination
Coordination of the equipment delivery process.
Installation Guidance
Technical guidance supporting machine installation after delivery.
Professional Installation and Long-Term Service Support
DAIS supports customers beyond equipment delivery with installation guidance, commissioning support, spare parts supply, and ongoing technical assistance.
Installation Guidance
Technical guidance supporting proper machine installation after equipment delivery.
Commissioning Support
Support during machine setup and commissioning for production preparation.
Spare Parts Supply
Spare parts support for maintenance and long-term machine operation.
Technical Assistance
Ongoing technical assistance for customers operating DAIS machinery.
Core Advantages of the D1060Q Automatic Die Cutting Machine
From precision cutting and heavy-duty mechanical construction to waste stripping and integrated automation, the D1060Q is engineered as a complete solution for demanding packaging production.
High Precision Cutting
Die cutting accuracy up to ±0.1 mm supports consistent production quality across demanding packaging applications.
Strong Mechanical Structure
Heavy-duty structural engineering and QT600-3 ductile iron components support long-term production stability.
Efficient Waste Stripping
Optional waste stripping configurations help reduce downstream manual finishing and improve production efficiency.
Reliable Components
Schneider electrical components, Omron photoelectric systems, and NSK bearings support dependable machine operation.
Complete Production Solution
Feeding, positioning, die cutting, waste stripping, control, and receiving functions form an integrated production platform.
D1060Q Automatic Die Cutting Machine FAQ
Answers to common questions about materials, waste stripping, production capacity, machine configuration, and international support for the DAIS D1060Q.
Product · Application · Configuration · Service
01 What is the D1060Q automatic die cutting machine used for?
The D1060Q is designed for automatic flatbed die cutting in packaging production. It integrates paper feeding, precision die cutting, optional waste stripping, and automated paper receiving for folding cartons, corrugated packaging, printed paper products, and other packaging applications.
02 What materials can the D1060Q process?
The D1060Q is specified for white board paper of at least 100 g and corrugated paper up to 8 mm, supporting applications such as folding cartons, food packaging, pharmaceutical packaging, corrugated boxes, and general printed paper products.
03 What is the maximum die cutting size of the D1060Q?
The maximum die cutting size is 1050 × 760 mm. The machine supports a maximum paper size of 1060 × 770 mm and a minimum paper size of 400 × 260 mm.
04 What is the working speed of the D1060Q?
The D1060Q has a maximum working speed of 7000 sheets per hour. When configured for waste stripping, the specified maximum waste stripping speed is 6500 sheets per hour.
05 Does the D1060Q support automatic waste stripping?
Yes. The D1060Q can be equipped with an optional waste stripping system. Available configurations include plate waste stripping for removing internal holes, unwanted areas, and outer waste, as well as a needle type system with a three-frame structure for convenient installation and adjustment.
06 What is the die cutting accuracy of the D1060Q?
The specified die cutting precision of the D1060Q is up to ±0.1 mm, supporting consistent cutting quality for demanding paper and packaging production.
07 What is the working pressure of the D1060Q?
The D1060Q provides a maximum working pressure of 300 tons. Its die cutting unit combines a heavy-duty mechanical structure with precision crankshaft, worm gear, intermittent motion, locking, and lubrication systems.
08 What are the main advantages of choosing the DAIS D1060Q?
Key advantages include high precision cutting, a strong QT600-3 ductile iron structure, optional automatic waste stripping, precision transmission engineering, Schneider electrical components, Omron photoelectric systems, NSK bearings, and an integrated feeding-to-receiving production configuration.
09 How does DAIS support international customers?
DAIS provides export preparation, protective packaging, transportation coordination, installation guidance, commissioning support, spare parts supply, and technical assistance. DAIS machinery has been delivered to customers across more than 50 countries and regions.
