SEMI-AUTOMATIC FLATBED DIE CUTTING
D1060 Semi-Automatic Die Cutting Machine

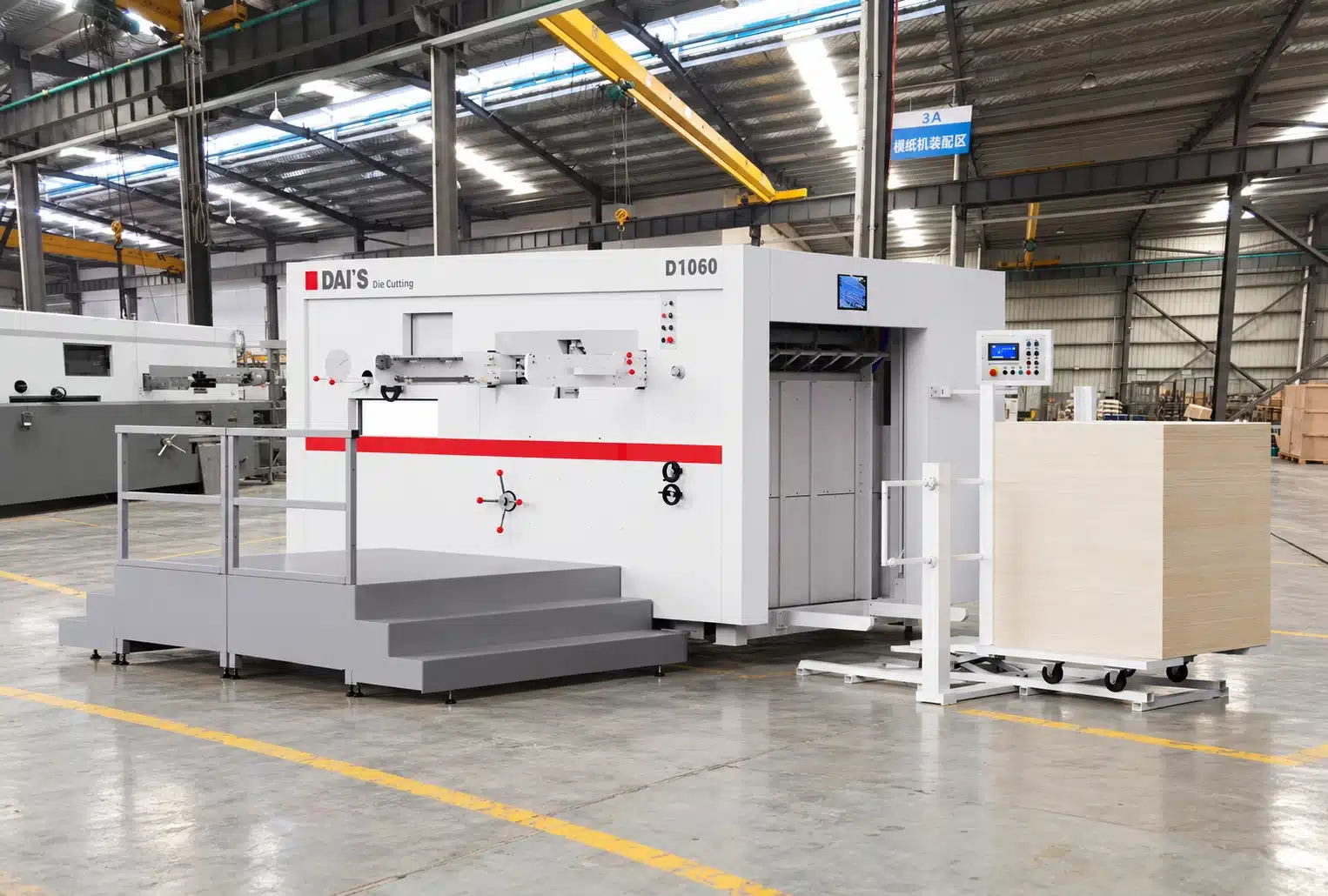

The DAIS D1060 is a heavy-duty semi-automatic flatbed die cutting machine engineered for white board and corrugated board converting. It combines strong working pressure, accurate sheet registration and a robust mechanical platform for demanding production environments.
MACHINE OVERVIEW & APPLICATIONS
Semi-Automatic Die Cutting for Paperboard and Corrugated Board
The D1060 is designed for converters that need the strength and accuracy of industrial flatbed die cutting while retaining a semi-automatic production configuration.
Its working range covers sheets from 400 × 260 mm up to 1060 × 770 mm, with a maximum die-cutting area of 1050 × 760 mm. The standard material specification includes white board from 100 g and corrugated board up to 8 mm thick.
This combination makes the D1060 suitable for a range of paperboard and corrugated converting requirements where stable registration, consistent cutting pressure and durable machine construction are important.
Material Capability
White Board
Suitable for white board from 100 g according to the standard machine specification.
Corrugated Board
Handles corrugated material up to 8 mm in thickness.
Large Sheet Format
Processes sheets up to 1060 × 770 mm with a maximum die-cutting size of 1050 × 760 mm.
A Practical Step Into Industrial Die Cutting
For production environments that do not require a fully automatic feeding configuration, the D1060 provides a straightforward way to combine semi-automatic operation with the mechanical strength, pressure and control expected from an industrial flatbed die cutter.
TECHNICAL SPECIFICATIONS
D1060 Semi Automatic Die Cutting Machine Specifications
The following specifications represent the standard D1060 configuration. Final machine configuration should be confirmed with DAIS according to the sales contract and application requirements.
| Specification | D1060 |
|---|---|
| Machine Type | Semi-Automatic Flatbed Die Cutting Machine |
| Max. Sheet Size | 1060 × 770 mm |
| Min. Sheet Size | 400 × 260 mm |
| Max. Die-Cutting Size | 1050 × 760 mm |
| Min. Gripper Margin | 8 mm |
| Max. Working Pressure | 300 tons |
| Material Range | White board ≥100 g; corrugated board thickness ≤8 mm |
| Die-Cutting Precision | ±0.25 mm |
| Max. Working Speed | 5,000 sheets/hour |
| Max. Pile Height | 1300 mm |
| Max. Delivery Height | 1200 mm |
| Main Motor Power | 11 kW |
| Rated Power | 20 kW |
| Machine Weight | Approx. 14 tons |
| Overall Dimensions | 3684 × 3837 × 2356 mm |
Need to confirm whether the D1060 fits your material and sheet size?
Send DAIS your board type, thickness, sheet dimensions and production requirements for machine selection support.
FEEDING & REGISTRATION SYSTEM

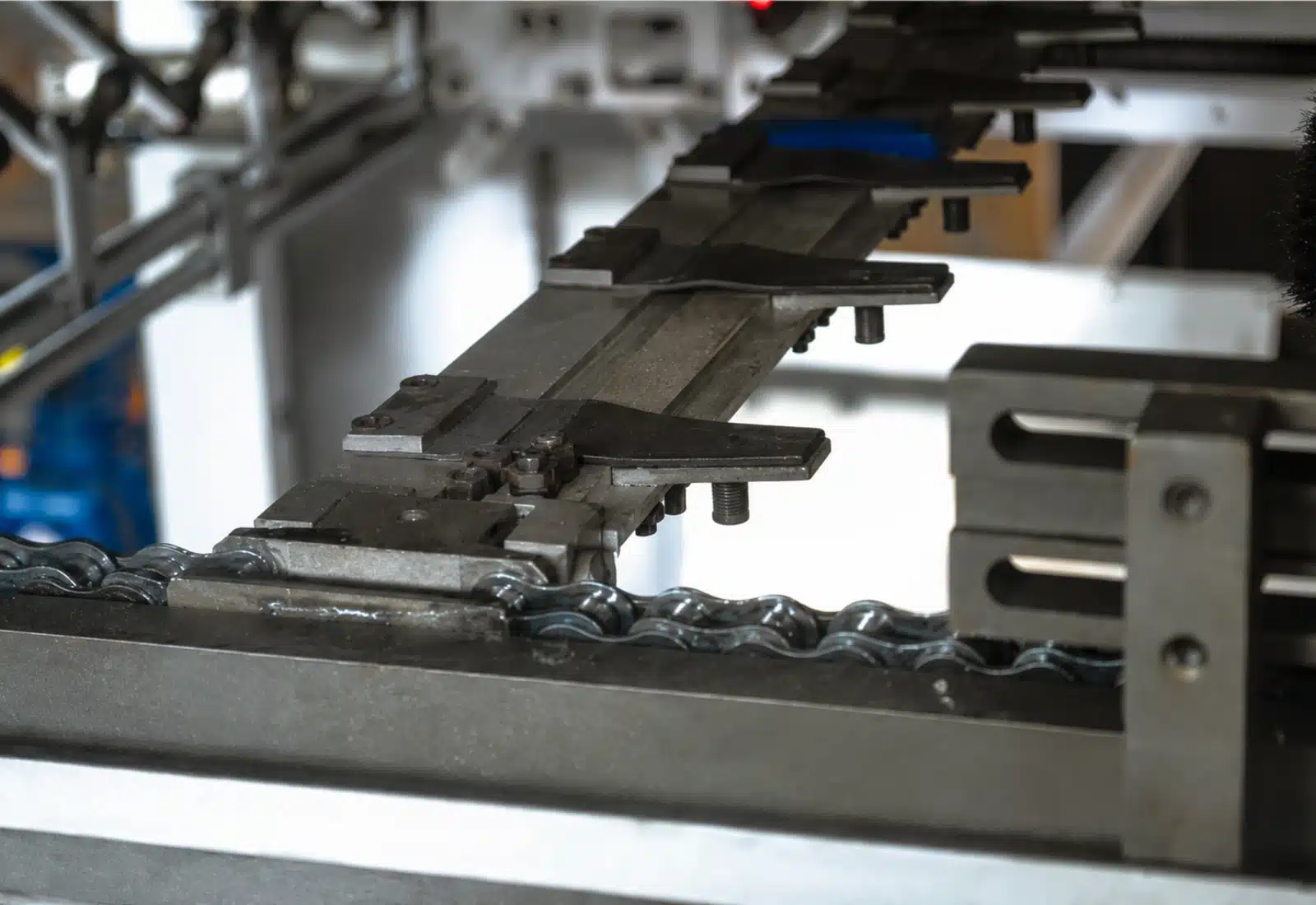

Reliable Sheet Feeding and Registration

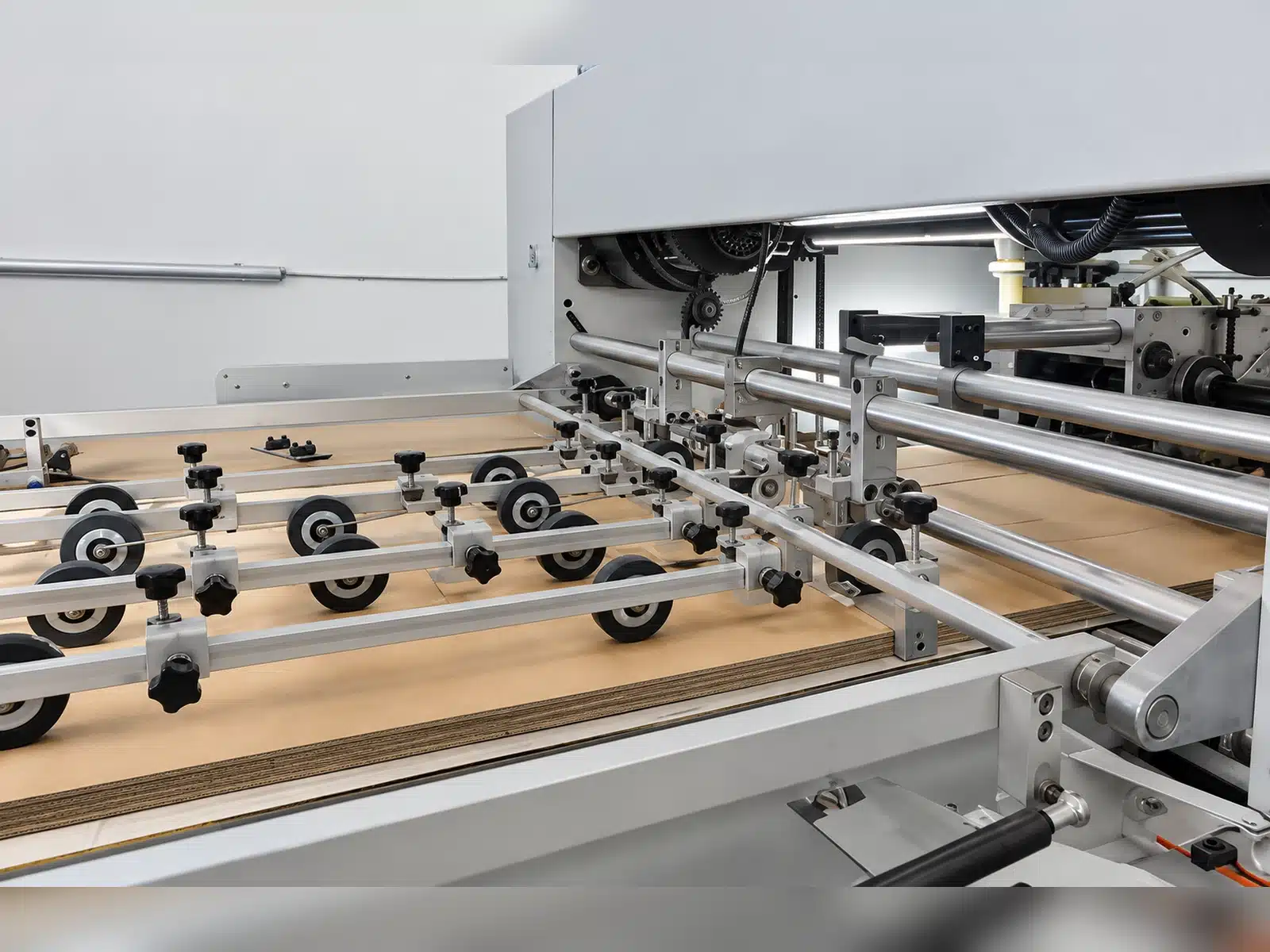

Accurate die cutting starts before the sheet reaches the platen. The D1060 uses a dedicated registration system to help position incoming sheets consistently before each die-cutting cycle.
Front and Side Gauge Positioning
A pre-check system monitors sheet arrival, while left and right push-pull side gauges accommodate different registration requirements.
This arrangement allows the operator to prepare the machine according to the positioning requirements of the printed or converted sheet.
Stable Sheet Control
The sheet pressing structure applies controlled, uniform force to help keep material positioned as it enters the working section.
Designed Around Repeatable Positioning
By combining sheet arrival detection with front and side registration, the feeding section provides a stable foundation for the die-cutting process that follows.
DIE-CUTTING & DRIVE SYSTEM
Heavy-Duty Flatbed Die-Cutting System
At the center of the D1060 is a mechanical die-cutting system built around strong pressure-bearing components, precision transmission and continuous lubrication.
300-Ton Working Pressure
The D1060 provides a maximum working pressure of 300 tons, giving the machine the force required for demanding paperboard and corrugated board die-cutting operations within its specified material range.
QT600-3 Pressure-Bearing Structure
Key pressure-bearing components use QT600-3 ductile iron. This material provides the structural strength required in the main die-cutting area and helps maintain a rigid mechanical platform during operation.
Precision Intermittent Drive
A high-precision 240-degree intermittent mechanism controls the working cycle of the die-cutting section.
The drive system also incorporates a wear-resistant worm gear and worm arrangement together with the crankshaft and transmission components required for consistent machine movement.

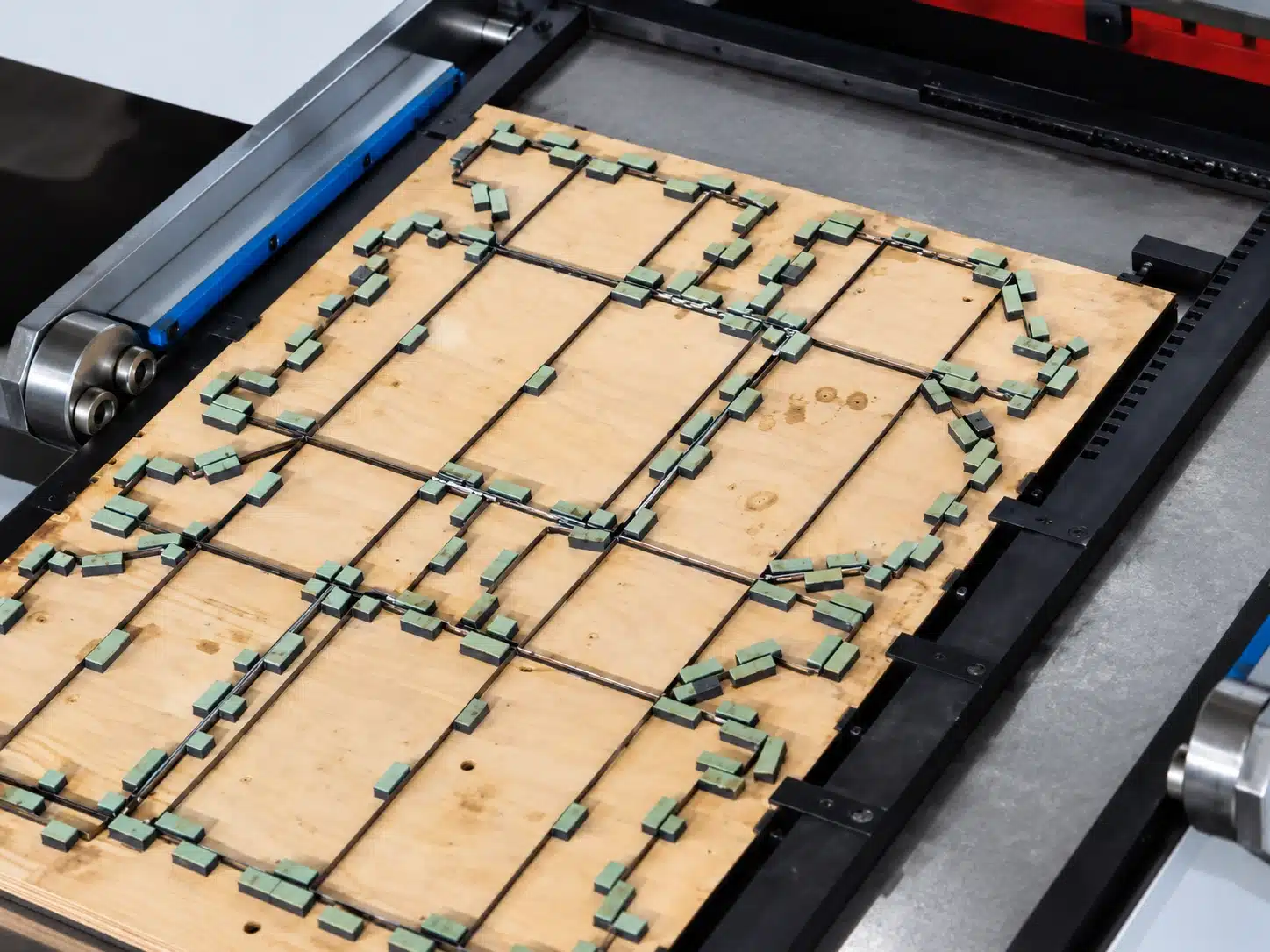

Pneumatic Plate Locking
A pneumatic locking device helps make die plate positioning and locking faster and more convenient during machine setup.
The die-cutting plate frame also incorporates an intermediate positioning and fine-adjustment arrangement for setup control.
Forced Lubrication
A strong oil-supply lubrication system provides lubrication to the main rotating mechanisms. The machine is designed to stop automatically if normal oil supply is not available, helping protect critical transmission components.
Oil-Air Cooling
An oil-air cooling system assists with temperature management in the transmission and lubrication system during operation.
The result is a die-cutting section designed around mechanical stability, controlled pressure and practical maintenance rather than unnecessary complexity.
ELECTRICAL CONTROL & SAFETY
Electrical Control for Stable Machine Operation

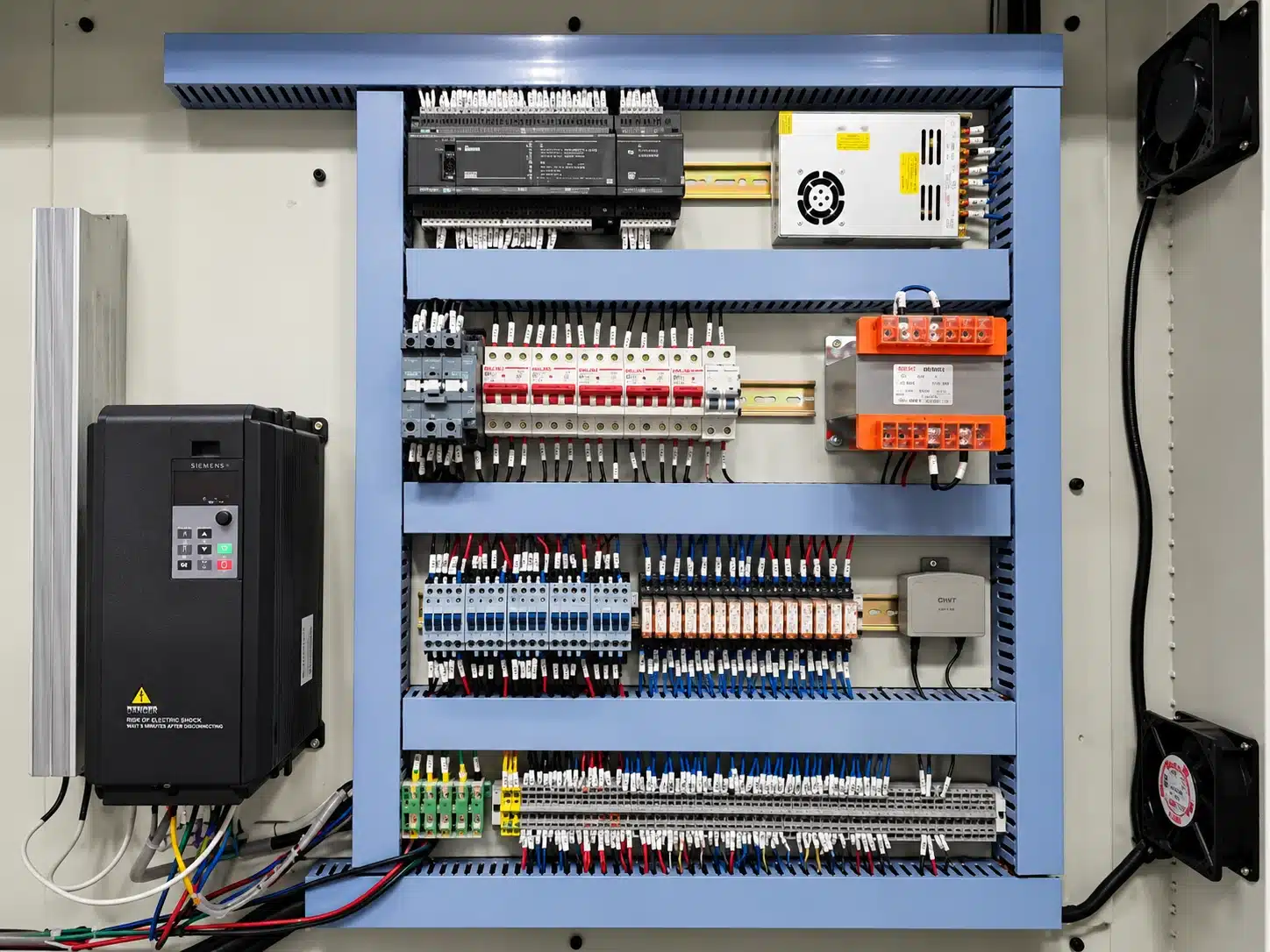

The D1060 combines mechanical construction with PLC-based electrical control, photoelectric sensing and protective electrical components to coordinate the major operating functions of the machine.
Centralized Machine Control
The control system manages the machine's operating sequence and allows operators to monitor working status from the control interface.
Photoelectric Monitoring
Photoelectric sensors are used in key operating areas to monitor sheet movement and machine conditions.
Electrical Protection
Circuit breakers, relays, limit switches and related protection components are integrated into the control system to support stable electrical operation.
Safety Monitoring
The D-series design incorporates safety sensing and operating protection around key machine functions to reduce unnecessary operator exposure to moving mechanisms.
Representative Component Configuration
Depending on production configuration, representative components may include brands such as Schneider, Omron, NSK, TYC, Delixi and other specified industrial component suppliers.
As machine designs and components are updated, individual purchased components may be replaced by equivalent-brand components of the same or higher quality. Final component configuration is subject to the confirmed machine specification and sales contract.
PAPER RECEIVING SYSTEM
Controlled and Organized Sheet Delivery

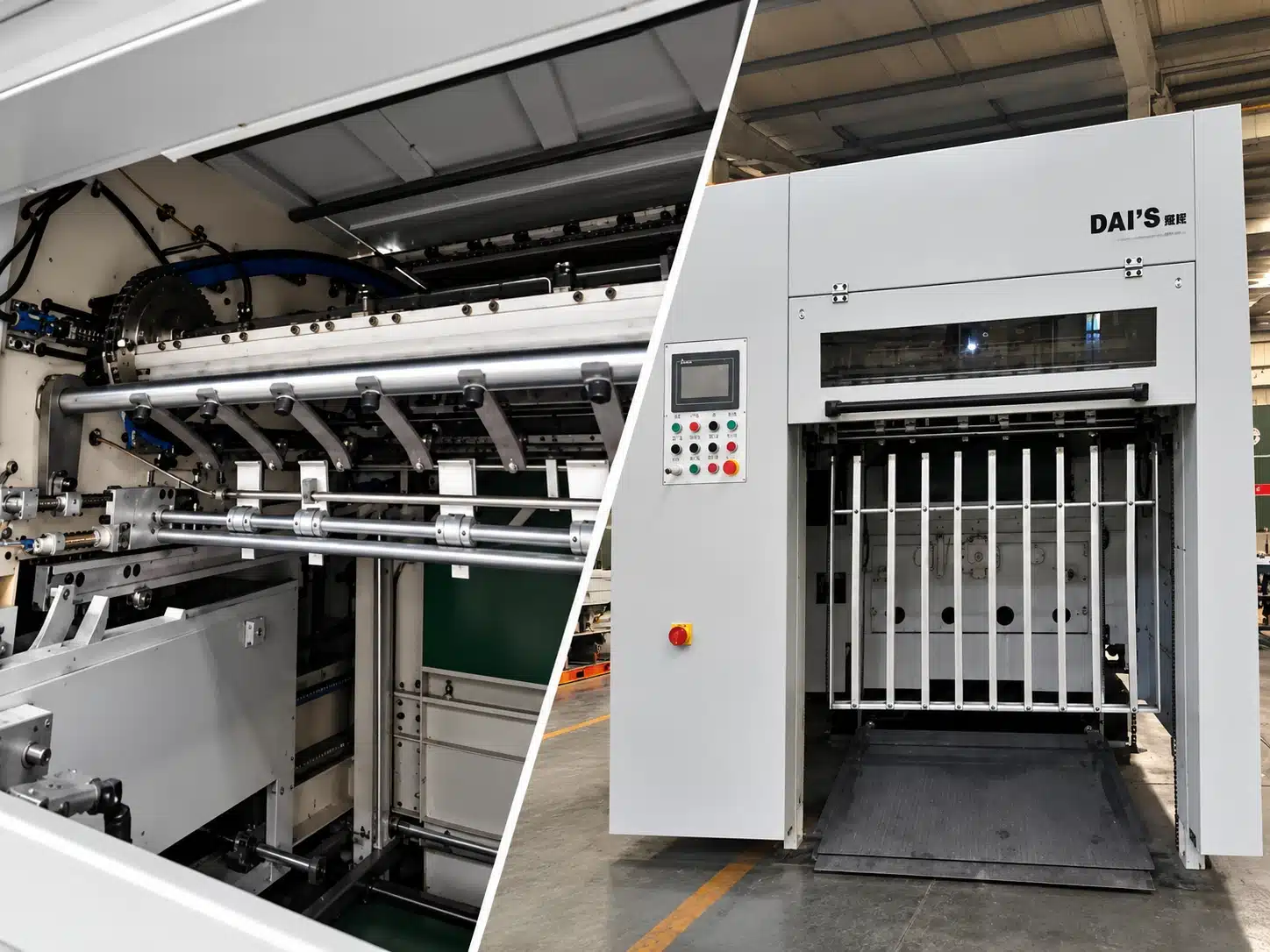

After die cutting, the receiving section helps organize finished sheets and maintain a controlled delivery process across different board conditions.
Automatic Sheet Leveling
The receiving system incorporates an automatic paper-leveling arrangement together with two-way air blowing to assist sheet collection.
Handling for Different Board Conditions
The receiving section is designed to collect both thinner and thicker sheet materials within the machine's specified operating range.
Photoelectric Delivery Monitoring
Photoelectric monitoring supports orderly sheet receiving, while an automatic lifting control system adjusts the receiving table as the pile changes.
Non-Stop Sampling
A non-stop sampling function allows die-cutting results to be checked during production without requiring the entire receiving process to be stopped for every inspection.
Delivery Protection
The receiving section also incorporates an anti-return paper device and main-chain protection as part of the overall delivery mechanism.
Together, these functions are designed to make finished-sheet handling more organized and practical for production operators.
MACHINE CONSTRUCTION & KEY COMPONENTS
Engineered for Long-Term Industrial Operation
The performance of a flatbed die cutting machine depends on more than speed or pressure. Frame rigidity, transmission components, bearings, lubrication and component quality all influence how the machine performs over years of production.
The D1060 is built around a heavy industrial mechanical platform designed for repeated die-cutting cycles.
QT600-3 Ductile Iron Body
The main body uses QT600-3 ductile iron to provide a strong structural foundation for the die-cutting mechanism.
Reinforced Frame Construction
The machine configuration incorporates manganese steel plate within the frame structure, supporting the rigid construction required around the working sections.
Transmission Components
The mechanical system incorporates the intermittent mechanism, crankshaft, worm gear and worm, transmission chains and related drive components that coordinate each die-cutting cycle.
Industrial Bearings and Motion Components
NSK bearings are specified within the machine configuration, together with dedicated transmission chains, encoder and other motion-control components.
Automatic Lubrication Support
A microcomputer-controlled electric lubrication pump and forced lubrication arrangement help maintain oil delivery to critical machine mechanisms.
Component Selection With Serviceability in Mind
Electrical, pneumatic and mechanical components are selected as part of an integrated machine system. Where product upgrades require a component change, DAIS may use an equivalent or higher-quality replacement rather than restricting the machine to one fixed supplier for its entire production life. This approach allows the machine specification to evolve while maintaining the required operating standard.
INSTALLATION & FOUNDATION
D1060 Installation and Foundation Requirements

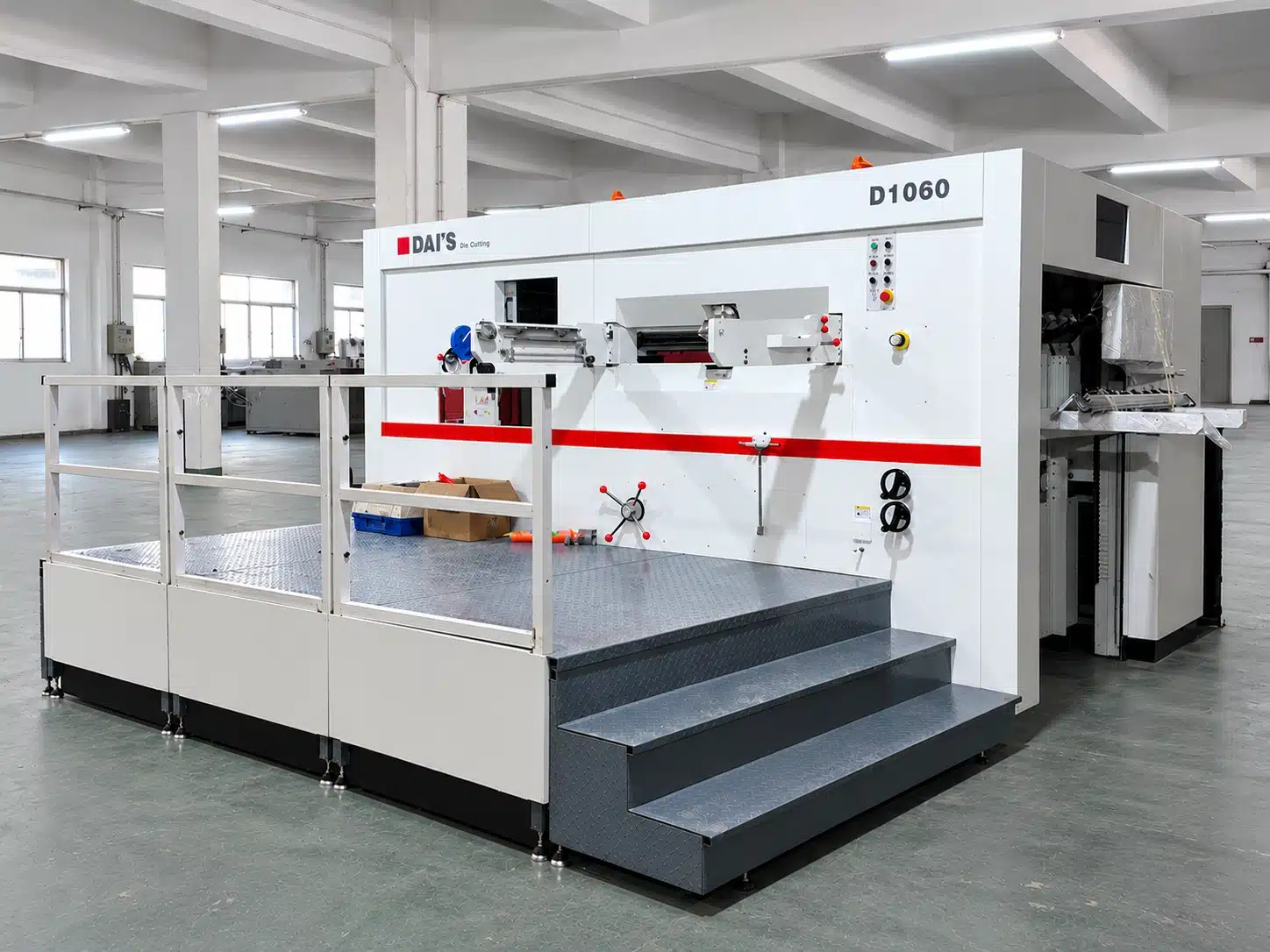

A 14-ton die cutting machine requires proper site preparation before installation.
The D1060 has an overall machine size of approximately 3684 × 3837 × 2356 mm. Sufficient working space should also be reserved around the equipment for operation, maintenance and material handling.
The installation foundation should be prepared according to the approved D1060 installation drawing before the machine arrives on site.
Prepare Before Delivery
Before installation, confirm the final machine layout, foundation requirements and installation conditions with the DAIS technical team.
STANDARD SUPPLY & ACCESSORIES
What Comes With the D1060
The standard D1060 supply includes the main machine together with the principal die-cutting accessories and maintenance items required for initial setup and operation.
| Item | Standard Quantity / Supply |
|---|---|
| Complete D1060 Machine | 1 set |
| Die-Cutting Steel Plate | 1 set, installed on machine |
| Die-Cutting Frame | 2 sets — one installed, one supplied separately |
| Paper-Gripping Bar | 1 set |
| Gripper Pads | 10 pcs |
| Manual Waste-Cleaning Unit | 1 set |
| Labeling Unit | 1 set, installed |
| Toolbox | 1 set |
The exact supply scope should always be checked against the final sales contract, especially when optional equipment or customer-specific accessories are included.
Need additional tooling or accessories? Discuss your required configuration with DAIS before order confirmation.
MANUFACTURING & QUALITY CAPABILITY
Built by DAIS for Industrial Production
DAIS has specialized in printing and post-press machinery manufacturing since 1993.
Our manufacturing base in Zhejiang, China covers approximately 50,000 square meters and is supported by more than 100 sets of CNC and advanced manufacturing equipment, including five-face gantry machining centers, high-precision vertical machining centers and robotic plasma cutting equipment.
For equipment such as the D1060, the quality of large structural parts and mechanical assemblies has a direct effect on machine alignment, pressure stability and long-term operation. DAIS invests in machining capability so these critical manufacturing processes can be controlled to consistent production standards.
Dedicated manufacturing capacity for printing and post-press equipment.

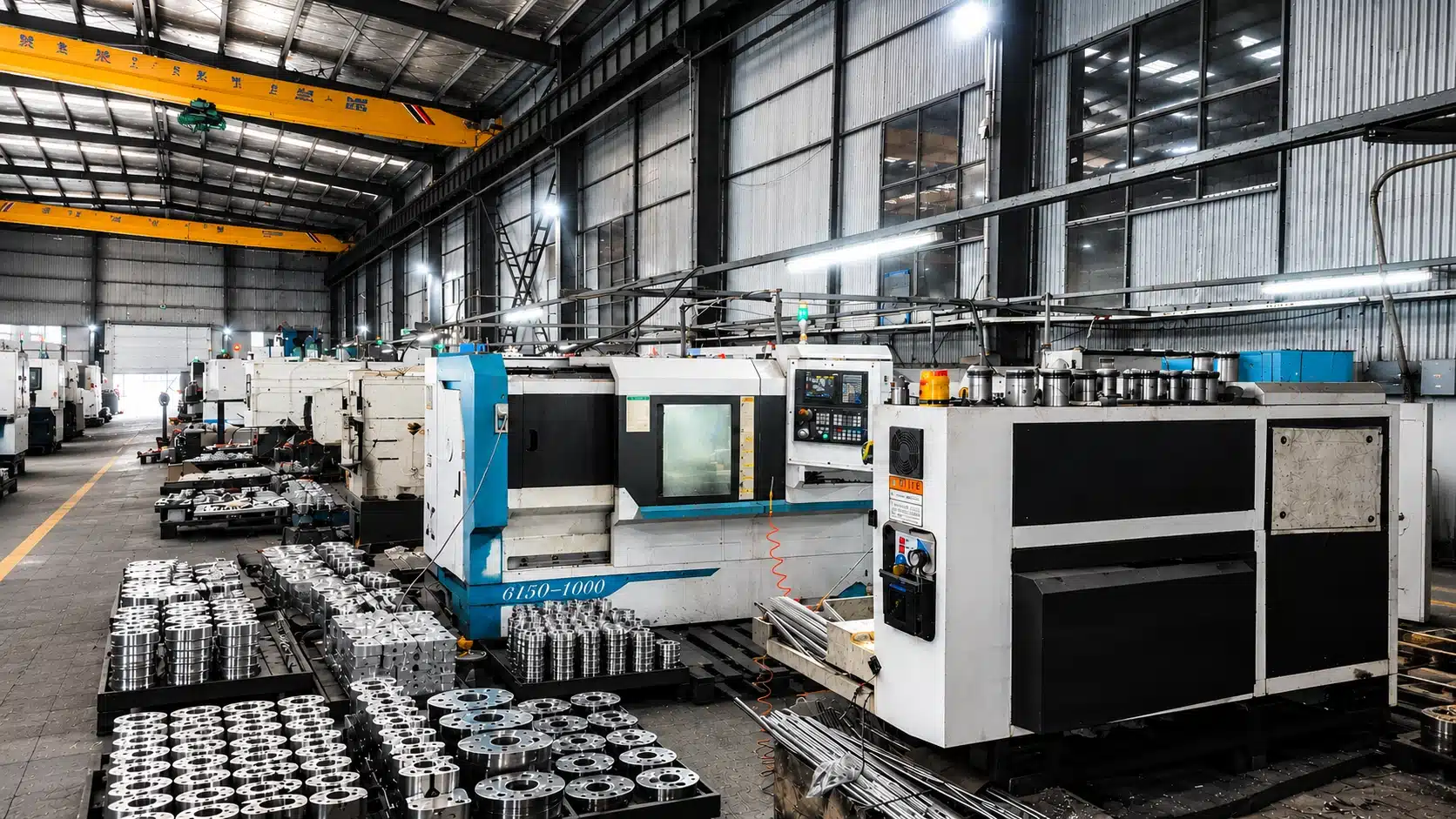

CNC machining and automated fabrication equipment support precision component production.
Long-term experience in the design and manufacturing of industrial printing and converting machinery.
DAIS holds multiple national patents covering die-cutting, sheet handling, safety and supporting machine mechanisms.
Selected Die-Cutting Related Patents
Feeding Unit of Die Cutting Machine
Patent No. ZL201820328715.3
Supporting Rotating Disc of Die-Cutting Machine
Patent No. ZL201820328948.3
Pumping Plate Bracket Device of Die Cutting Machine
Patent No. ZL201820328769.X
Three-Phase Travel Limiting Combination Device of Die Cutting Machine
Patent No. ZL201820328766.6
For international buyers, this combination of manufacturing infrastructure, product development and long-term industry experience provides a clearer basis for evaluating the manufacturer behind the machine — not only the specifications shown on a product sheet.
GLOBAL DELIVERY & EXPORT SUPPORT
Global Delivery & Export Support
Buying a large industrial die cutting machine involves more than selecting the right specification. Packing, loading, international transportation and destination planning also need to be considered before the machine leaves the factory.
DAIS printing and post-press equipment has been supplied to customers in more than 50 countries and regions, including markets in North America, Europe, Asia, South America and other international regions.
50+ Countries & Regions
DAIS has experience supplying industrial machinery to customers across a wide range of international markets.
Shipment Planning for Heavy Equipment
For a machine such as the D1060, shipping arrangements should take its approximately 14-ton machine weight and overall dimensions into account. Packing and loading requirements are confirmed according to the final machine configuration and agreed shipping terms.
Container Loading Coordination
Machine layout, removable components, supplied accessories and the agreed transport method can be considered when preparing the shipment and loading arrangement.
Confirm Shipping Before Dispatch
Before shipment, buyers should confirm the destination, required shipping terms, packing arrangement and final supply scope with the DAIS sales team.
Planning an international D1060 order?
Tell us your destination country or port when requesting a quotation so shipping requirements can be discussed together with the machine configuration.
AFTER-SALES SUPPORT
After-Sales Support for Your D1060
Industrial machinery is a long-term investment, so equipment support should continue beyond the initial delivery.
Under correct operation and maintenance conditions, DAIS provides a 12-month service period from completion of machine installation and commissioning, according to the agreed sales terms.
Machine parts damaged by non-human factors during the applicable warranty period are handled according to the warranty conditions. Consumable wear, improper operation and damage caused by incorrect use are excluded from standard warranty coverage.
After the warranty period, replacement parts remain available according to DAIS spare-parts policy, and long-term maintenance support can continue as required.
For international customers requiring an overseas engineer visit, the buyer is responsible for the related engineer costs according to the agreed service terms.
12-Month Service Period
Service period begins from completion of installation and commissioning under the agreed sales terms.
Spare Parts Support
Replacement parts remain available according to DAIS spare-parts policy after the standard service period.
Long-Term Maintenance
Technical guidance and maintenance support can continue according to machine condition and service requirements.
Overseas Technical Service
Overseas engineer visits can be arranged, with related engineer costs handled according to agreed service terms.
Final warranty, spare-parts and on-site service conditions are subject to the signed sales contract.
1060 SERIES MODEL SELECTION
Which DAIS 1060 Series Model Is Right for You?
DAIS offers several 1060-series die cutting machine configurations for different automation requirements.
D1060
Semi-Automatic Die Cutting Machine
The model shown on this page. A semi-automatic configuration for buyers who require industrial flatbed die cutting without moving to a fully automatic model.

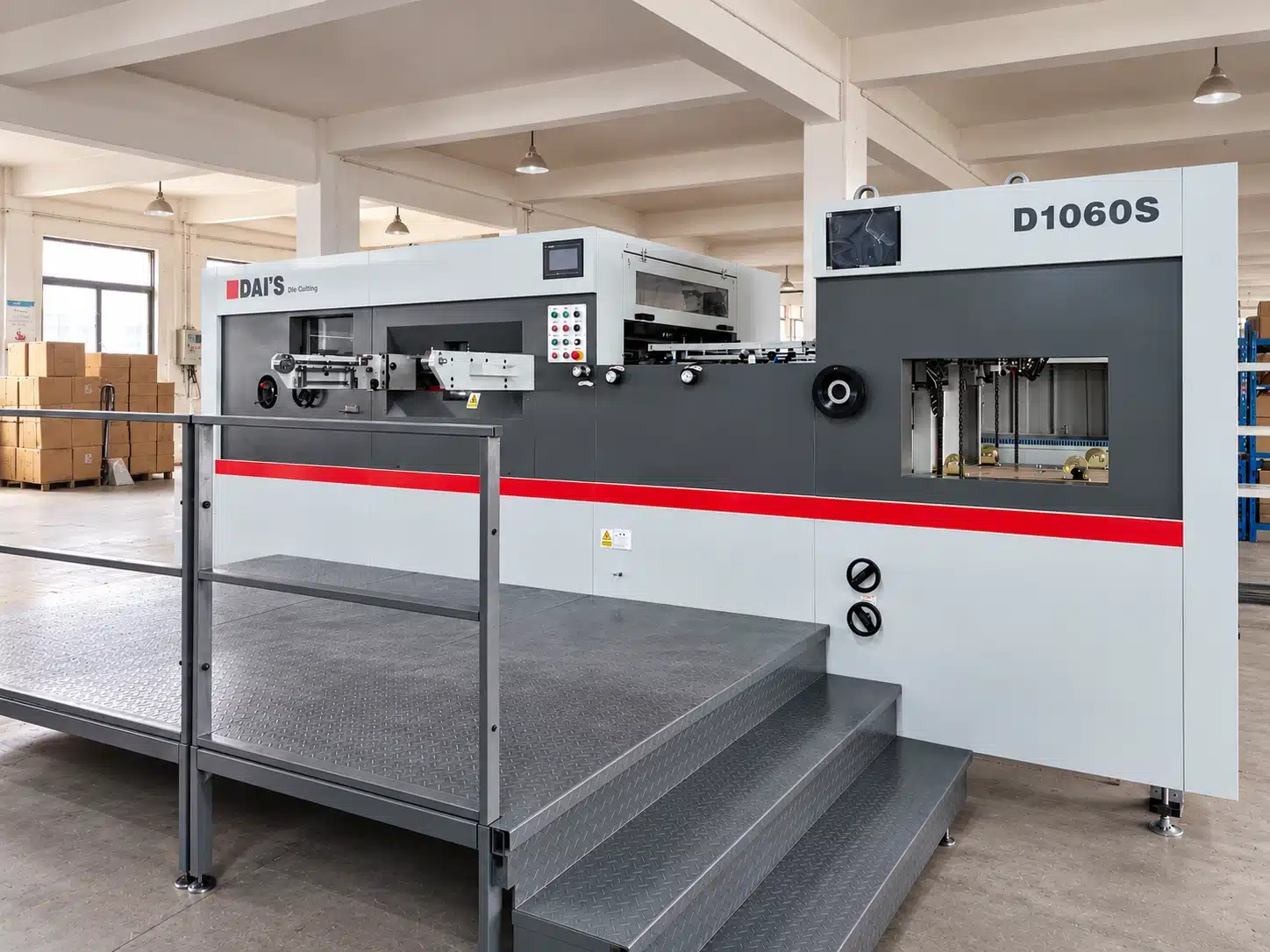

D1060S
Automatic Die Cutting Machine
For buyers looking for a higher level of production automation within the DAIS 1060 series.
D1060SQ
Automatic Die Cutting Machine With Stripping
For applications where automatic die cutting and an integrated stripping function are required.
Not sure which model to choose?
Send us your material, sheet size, required output and automation requirements. DAIS can help you compare the available 1060-series configurations before you place an order.
D1060 FAQ
D1060 Semi Automatic Die Cutting Machine FAQ
What is the maximum sheet size of the D1060?
The D1060 accepts sheets up to 1060 × 770 mm. The minimum sheet size is 400 × 260 mm, while the maximum die-cutting area is 1050 × 760 mm.
What materials can the D1060 process?
According to the standard machine specification, the D1060 is suitable for white board from 100 g and corrugated board up to 8 mm thick.
What is the maximum die-cutting pressure?
The D1060 provides a maximum working pressure of 300 tons.
What is the die-cutting accuracy of the D1060?
The standard D1060 specification lists die-cutting precision at ±0.25 mm.
What is the maximum production speed?
The standard D1060 maximum working speed is 5,000 sheets per hour. Actual production output can vary according to material, die layout, operating conditions and production setup.
Does the D1060 require a special foundation?
The D1060 weighs approximately 14 tons, so the installation area and foundation should be prepared according to the approved machine installation drawing. DAIS can provide the installation drawing so site preparation can be completed before installation.
What is the difference between the D1060, D1060S and D1060SQ?
The D1060 is a semi-automatic die cutting machine. The D1060S is an automatic die cutting machine, while the D1060SQ adds an automatic stripping function. The appropriate model depends on your production process and required level of automation.
Can DAIS supply the D1060 internationally?
Yes. DAIS equipment is supplied to customers in more than 50 countries and regions. International buyers should provide their destination when requesting a quotation so the machine configuration and shipment requirements can be discussed together.
What after-sales support is available?
DAIS provides a 12-month service period from completion of installation and commissioning under correct machine operation and maintenance, subject to the agreed contract terms. Spare-parts and long-term maintenance support remain available after the standard service period. Overseas engineer costs are handled according to the agreed international service terms.
REQUEST A QUOTE
Discuss Your Die-Cutting Requirements With DAIS
Choosing the right die cutting machine starts with the material and production requirement — not only the machine model.
Send us your:
- Sheet dimensions
- Material type
- Board thickness
- Required production output
- Die-cutting requirements
- Preferred automation level
- Destination country or port
Our team can review your requirements and help determine whether the D1060 or another DAIS 1060-series machine is the more suitable configuration.
