D1060S Automatic Flatbed Die Cutting Machine
High Precision Die Cutting Solution for Paper Packaging and Printing Manufacturers
The D1060S automatic flatbed die cutting machine is designed for packaging manufacturers and printing companies requiring stable production, high cutting accuracy, and reliable long-term operation. With a 300-ton maximum working pressure, ±0.1mm die cutting precision, and advanced feeding and control systems, it provides an efficient solution for paperboard and corrugated packaging production.
Maximum Working Speed
Working Pressure
Precision
Sheet Size
D1060S Automatic Die Cutting Machine Overview
The D1060S is a high-performance automatic flatbed die cutting machine developed for modern packaging and printing production environments.
Designed for processing paperboard, corrugated board, and other packaging materials, the machine combines a rigid mechanical structure, precision transmission system, automatic feeding technology, and intelligent control features to achieve stable production performance.
With its optimized design and reliable components, the D1060S helps manufacturers improve production efficiency while maintaining consistent die cutting quality during continuous operation.
D1060S Technical Specifications
Core machine dimensions, working capacity, processing range, power requirements, and production parameters for evaluating D1060S installation and production suitability.
| Specification | D1060S |
|---|---|
| Machine Type | Automatic Flatbed Die Cutting Machine |
| Maximum Sheet Size | 1060 × 770 mm |
| Minimum Sheet Size | 400 × 260 mm |
| Maximum Die Cutting Size | 1050 × 760 mm |
| Maximum Working Pressure | 300 Tons |
| Applicable Materials | White board ≥100g / Corrugated board ≤4mm |
| Die Cutting Precision | ±0.1 mm |
| Maximum Working Speed | 6500 sheets/hour |
| Maximum Paper Stack Height | 1600 mm |
| Maximum Delivery Height | 1500 mm |
| Main Motor Power | 15 kW |
| Rated Power | 30 kW |
| Machine Weight | 16 Tons |
| Machine Dimension | 6823 × 4048 × 2182 mm |
Engineering Advantages of D1060S Automatic Flatbed Die Cutting Machine
Built for industrial packaging production, the D1060S combines robust mechanical engineering with precision components to ensure stable operation, accurate cutting, and long service life.
Heavy-Duty QT600-3 Ductile Iron Structure
The main frame of the D1060S uses QT600-3 ductile iron processed through advanced manufacturing technology. This high-strength structure improves machine stability and reduces deformation during long-term high-pressure operation.
Precision Transmission and Intermittent Mechanism
The machine adopts a high-precision intermittent mechanism and optimized transmission structure to maintain smooth movement and accurate positioning during continuous production.
International Brand Components
Key components are selected from recognized suppliers, including NSK bearings, Omron encoder components, Schneider electrical components, and other precision parts to improve reliability and operational stability.
Enhanced Safety Protection
Integrated safety systems, photoelectric protection, and reliable control components help create a safer operating environment while maintaining efficient production.
High Precision Flatbed Die Cutting Unit with 300 Ton Pressure
The die cutting section is the core performance system of the D1060S, engineered to deliver stable pressure distribution and accurate cutting during continuous industrial production.
Working Pressure
Built for Stable High-Pressure Die Cutting
The machine uses a high-strength QT600-3 structure, precision mechanical transmission, and optimized lubrication system to provide stable pressure distribution and accurate die cutting results.

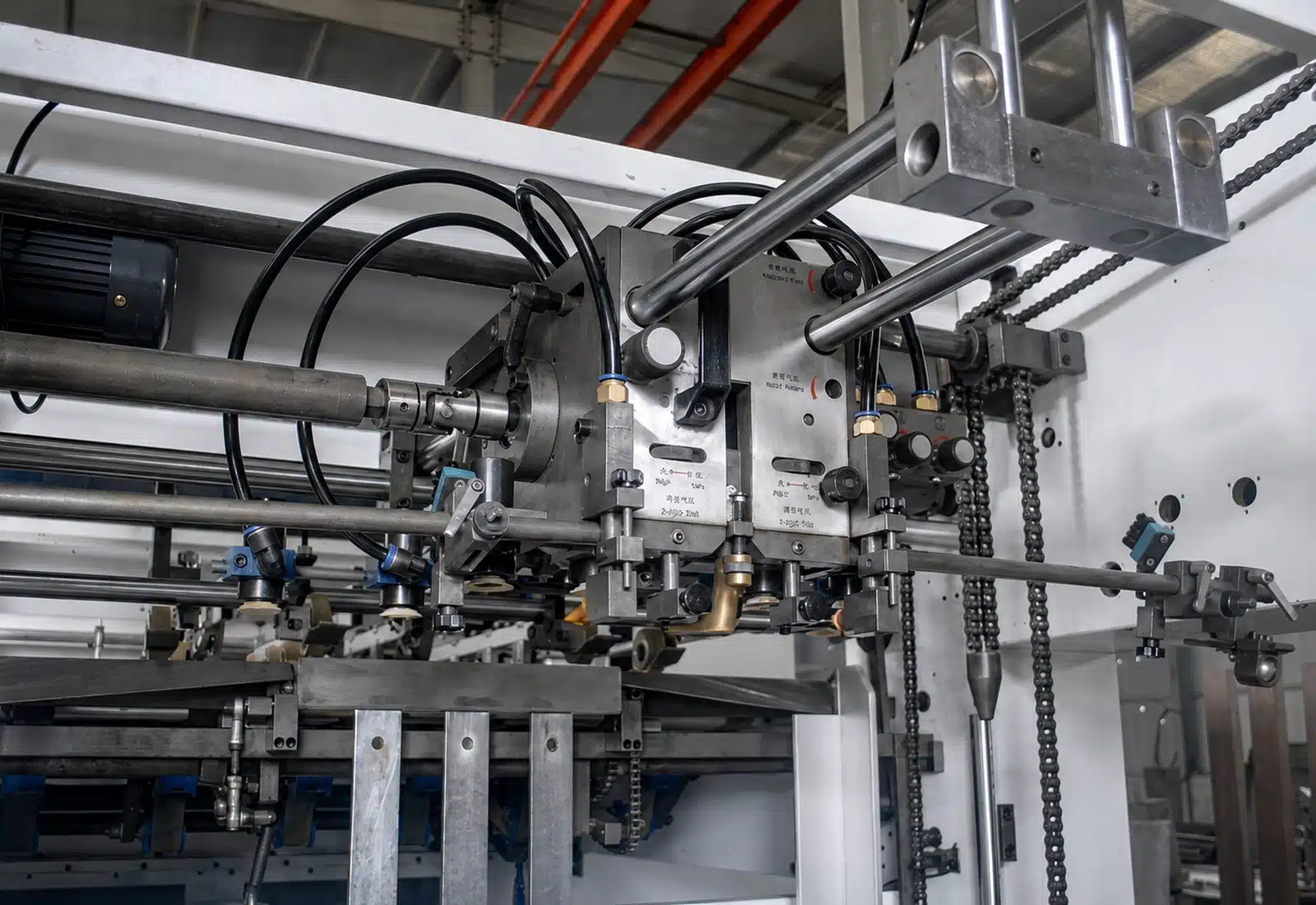

High Precision Automatic Feeding System for Stable Sheet Handling
The D1060S is equipped with an advanced automatic feeding system designed to improve sheet handling accuracy and production stability.
The European technology Feida head uses servo-controlled adjustment to optimize suction angle and feeding height according to different material conditions.

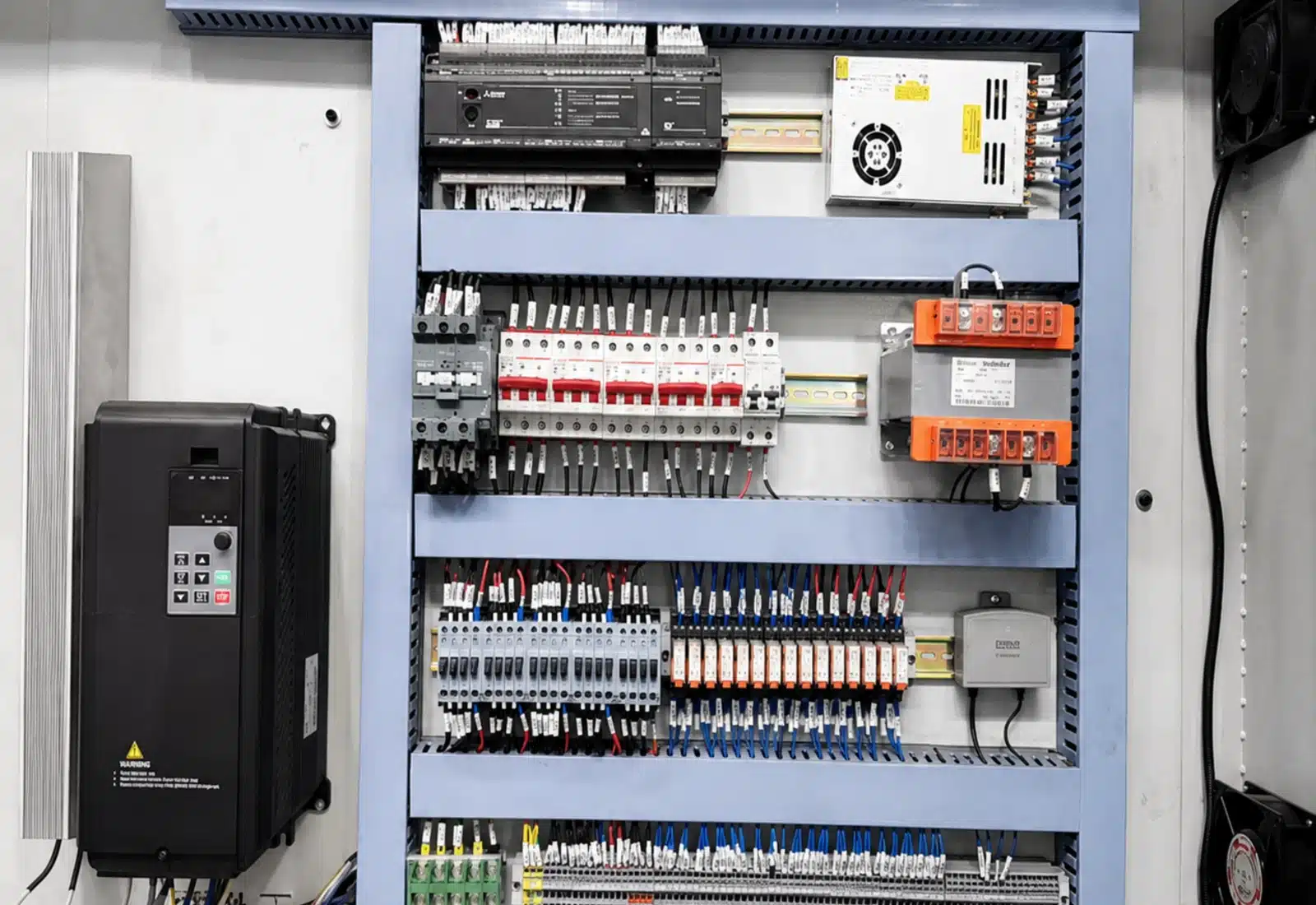

Reliable Electrical Control System for Stable Machine Operation
The D1060S automatic die cutting machine is equipped with a reliable electrical control system designed to support stable operation, accurate control, and efficient production management.
Stable Control Components
Reliable electrical components support stable machine control and continuous production under demanding industrial operating conditions.
Intelligent Operation Interface
The operator interface provides centralized machine control and production monitoring for efficient daily operation and parameter management.
Precision Detection System
Integrated detection components help monitor machine operation and support accurate, reliable production control throughout the die cutting process.

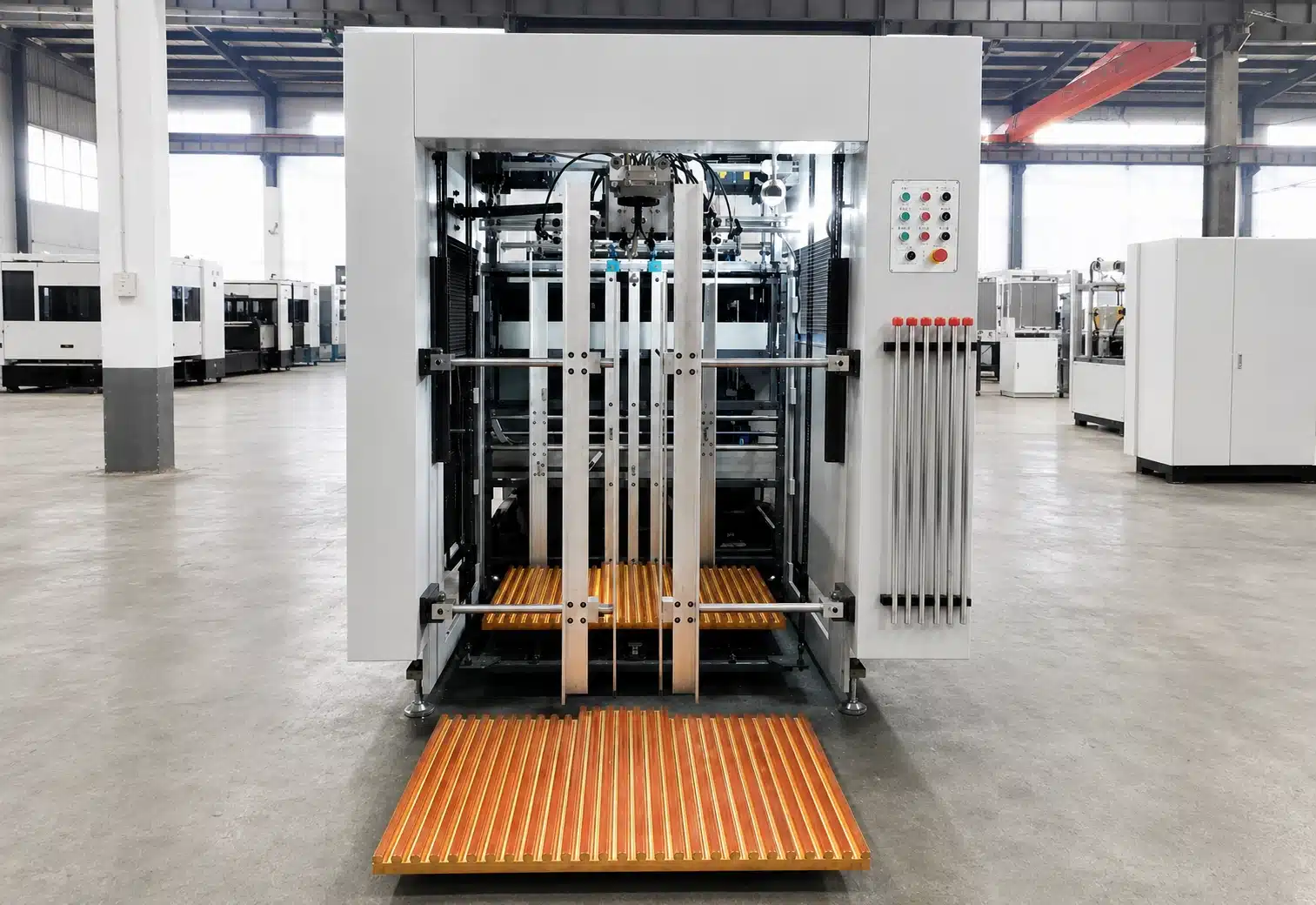

Automatic Paper Receiving System for Efficient Production Workflow
After the die cutting process, the D1060S automatic delivery system helps collect finished sheets efficiently and maintain smooth production flow.
Automatic Paper Leveling
Supports orderly sheet collection at the delivery end for a more organized receiving process.
Photoelectric Detection
Detection components assist the delivery system in monitoring sheet receiving during production.
Non-Stop Operation Support
Designed to support an efficient production workflow and continuous sheet delivery.

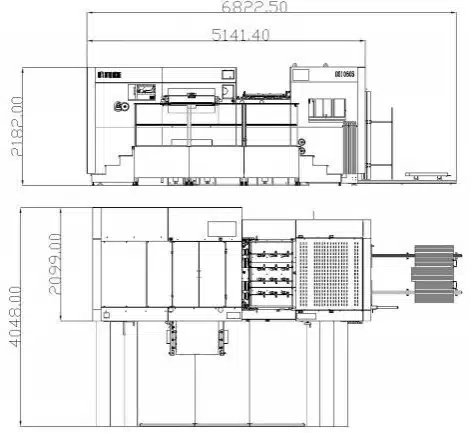

D1060S Installation Layout and Space Requirements
Before installing the D1060S automatic flatbed die cutting machine, customers should prepare sufficient production space according to machine dimensions and operating requirements.
Worldwide Shipping & Delivery Support for Global Customers
DAIS provides professional export support for customers worldwide.
With years of experience in international machinery supply, we support customers from factory preparation to shipment coordination.
Global Export Experience
International machinery delivery support for customers across global markets.
Professional Export Packing
Equipment preparation and export packing support for long-distance machinery transportation.
Delivery Coordination
Shipment coordination to support an organized transition from factory preparation to delivery.
Why Choose DAIS as Your Automatic Die Cutting Machine Manufacturer

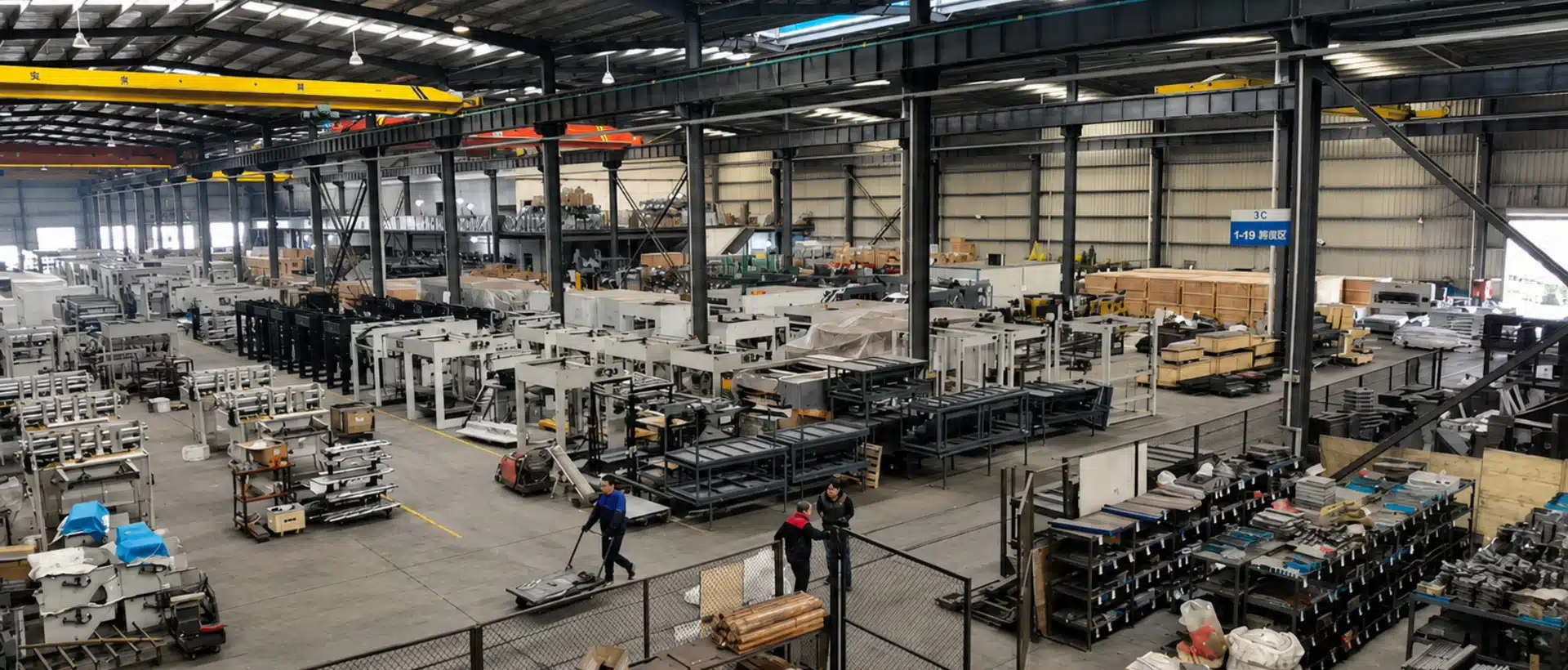

Established in 2000, DAIS Printing Machinery specializes in the research, design, manufacturing, sales, and service of automated equipment for cutting, die cutting, foil stamping, and laminating applications.
Main Components and Configuration of D1060S
Key mechanical, electrical, encoder, PLC, and pneumatic components used in the D1060S machine configuration.
| Component | Brand / Origin |
|---|---|
| Bearing | NSK Japan |
| Encoder | Omron Japan |
| Electrical Components | Schneider France |
| PLC Components | Jun Chuang |
| Pneumatic Components | SanChi |

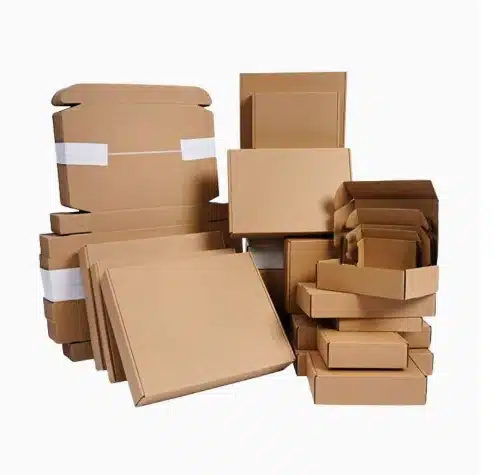

Applications of D1060S Automatic Flatbed Die Cutting Machine
The D1060S is designed for industrial paper packaging production where stable sheet handling, precise die cutting, and consistent output are required.
01
Carton Packaging Production
Suitable for die cutting paperboard used in commercial carton and printed packaging production where accurate cutting and consistent sheet processing are required.
02
Paper Box Manufacturing
Supports paper box manufacturing for printed folding cartons and other paperboard packaging products requiring repeatable die cutting performance.
03
Corrugated Packaging
Designed to process corrugated board up to the specified machine range for packaging applications requiring accurate flatbed die cutting.
Standard Accessories Included with D1060S
The D1060S is supplied with a set of standard accessories to support machine installation, die cutting preparation, maintenance, and daily production operation.
After-Sales Support for D1060S Customers
DAIS supports customers after equipment delivery with technical assistance for installation, machine operation, maintenance, and ongoing spare parts requirements.
Installation Support
Technical assistance for machine installation, setup, commissioning preparation, and production startup.
Maintenance Guidance
Practical technical guidance to support routine maintenance and reliable long-term machine operation.
Spare Parts Supply
Continued spare parts support helps customers maintain equipment availability throughout the machine service cycle.
Frequently Asked Questions About D1060S Automatic Die Cutting Machine
Quick answers to common questions about D1060S material compatibility, working pressure, die cutting precision, international delivery, and model selection.
01 What materials can the D1060S automatic die cutting machine process?
The D1060S is designed for paper packaging applications including white board of 100g or above and corrugated board up to 4mm, making it suitable for carton, paper box, and corrugated packaging production.
02 What is the maximum working pressure of D1060S?
The D1060S provides a maximum working pressure of 300 tons. Its heavy-duty mechanical structure is designed to support stable pressure during continuous flatbed die cutting production.
03 What is the die cutting accuracy of D1060S?
The specified die cutting precision of the D1060S is ±0.1 mm, supporting accurate and repeatable processing for paperboard and corrugated packaging applications.
04 Does DAIS provide overseas shipping support?
Yes. DAIS provides export support for international customers, including machinery preparation, professional export packing, shipment coordination, and delivery support for customers worldwide.
05 What is the difference between D1060S and D1060SQ?
The current D1060S product information does not provide a verified technical comparison with the D1060SQ. Customers evaluating these two models can contact DAIS with their material, production speed, sheet size, and process requirements so the technical team can recommend the appropriate configuration.
Looking for a Reliable Automatic Die Cutting Machine Manufacturer?
Contact DAIS today to learn more about the D1060S automatic flatbed die cutting machine, technical specifications, delivery options, and customized production solutions.
