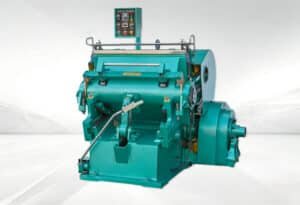

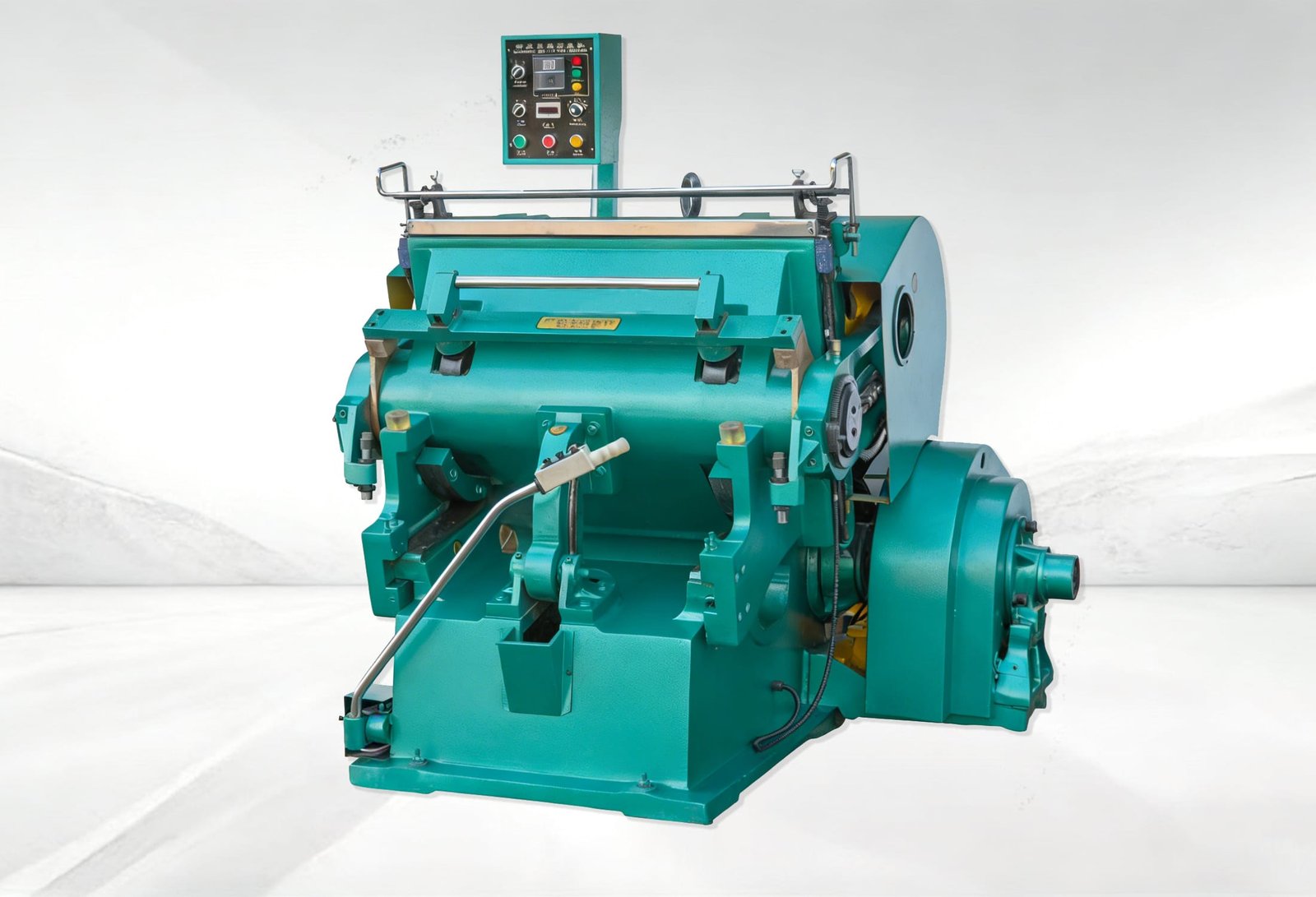

Industrial Heavy-Duty Manual Platen Die Cutting & Creasing Machine

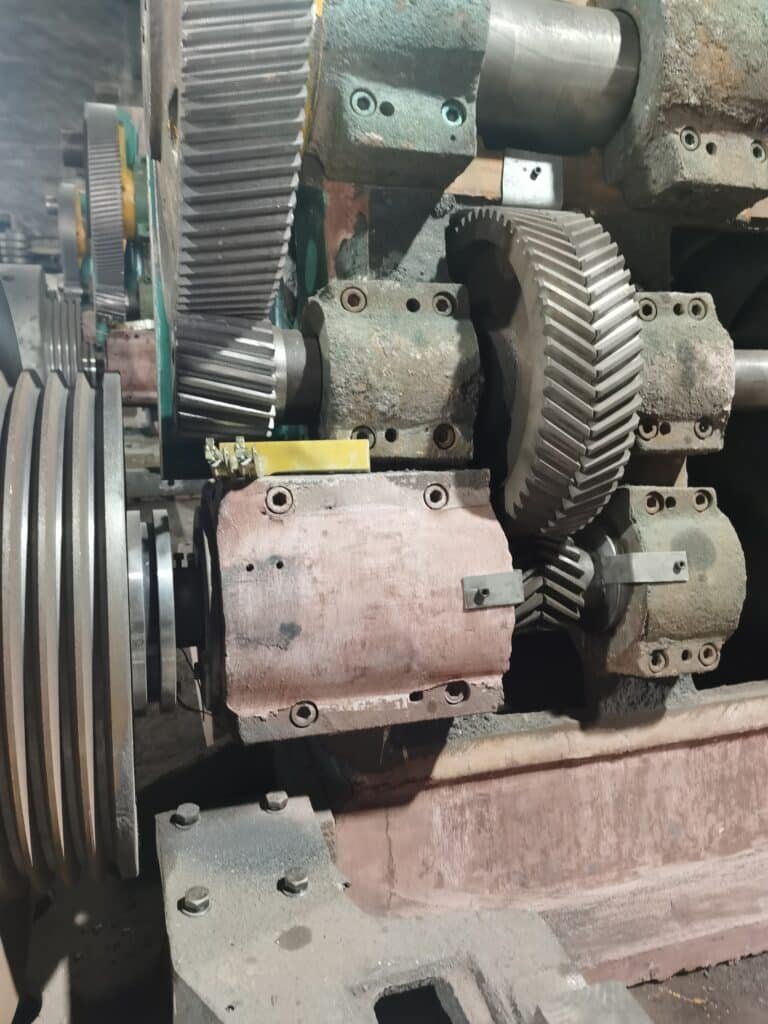

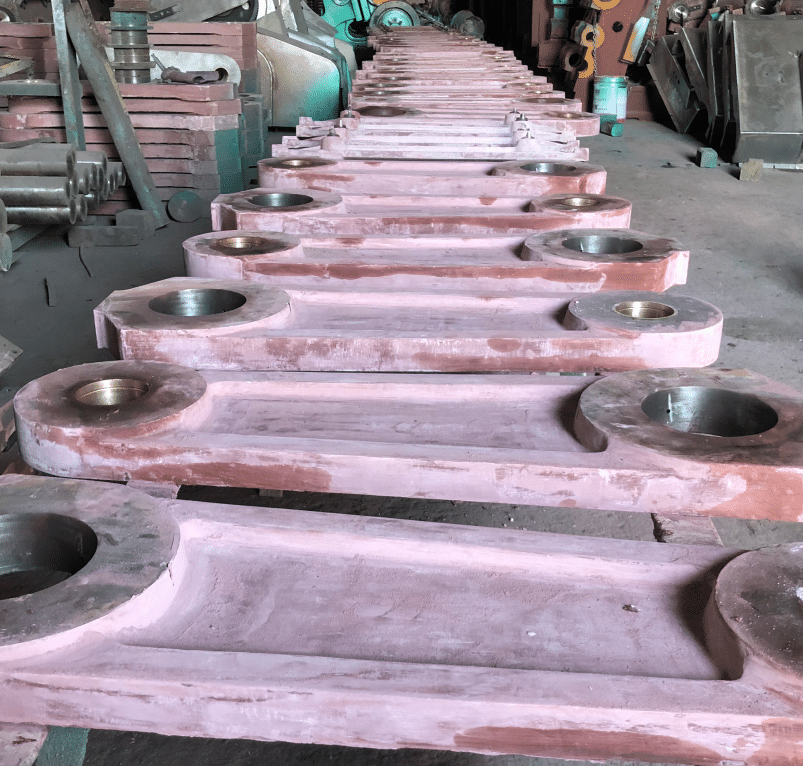

The machine is composed of machine base, moving platen, electromagnetic clutch, electrical equipment control component, automatic recorder and time delay device etc.The motor of the machine drives the flywheel, after electromagnetic effect of the electromagnetic clutch, then through speed variation of three grade gears drive the link to make the moving platen swing back and forth to finish the work cycle of feeding, creasing and cutting, and caking out finished product.Machine Base Bull wheels with eccentric shaft are fixed into two ends of the grade shaft of machine base and it drives the link to make the moving platen swing back and forth to finish the creasing and cutting of card boards.
The flywheel is used to store of free energy, and to reduce periodic velocity fluctuation of the machine so as to keep the working balance.The worm wheel and worm screw hand device is set up on one end of the transmission shaft to remove troubles during adjustment and dead halt.

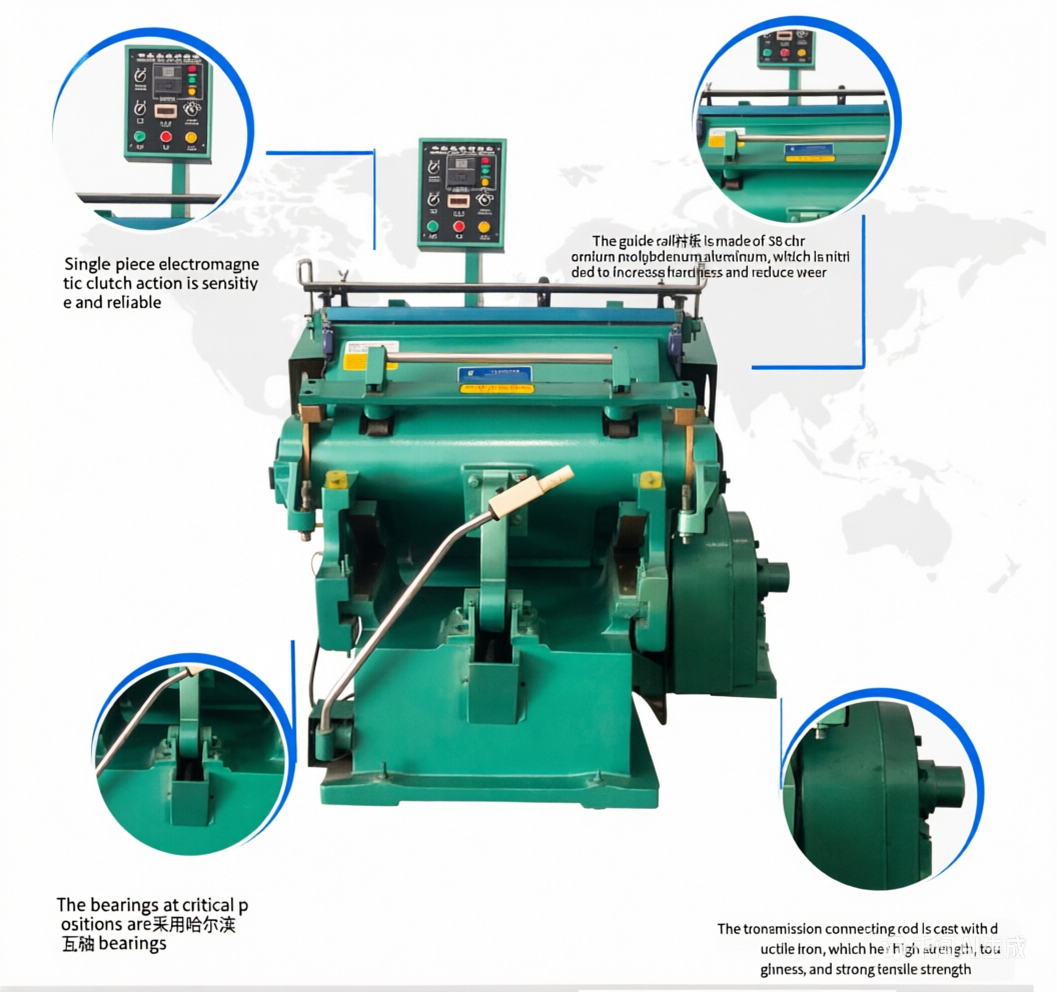

transmission shaft, and its mechanical motion of sticking and falling off drive the transmission shaft to move or bake.
There is the safeguard stop rodequipped on the top of the machine base plane, the machine can be stopped immediately through the limit switcher of them.The control rack is located in the right side of the machine base upper plane, the control rack can be set on the available position and then is fixed, it can turn out when changing prints

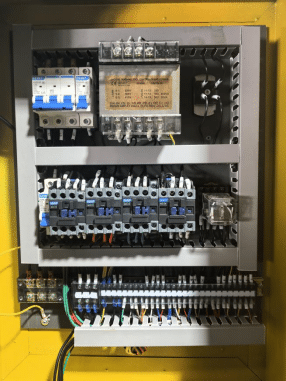

Electrical Control Components The electrical appliance casing is set on the rear of machine base. The electrical control casing Is set on the right of machine base top. The electrical control casing equips the automatic recorder, the time delay adjuster, and five switches, which include power switch, start push button, creasing and cutting push button, stop push button and choose push button
DAI‘S PRINTING MACHINE CO.,LTD
Dai’s Printing Machinery Co., Ltd. is by production Postpress equipment has a long history of Ruian City, Zhejiang Province, Xinhua printing machine factory with the French Bafang company, in 1993 as a joint venture, planning a total investment of 19 million dollars, covers an area of 50000 square meters. Company name from the original NPC vice chairman Long Fei personally wrote, located in the beautiful scenery of Zhejiang Province Lishui City Economic Development Zone and Ruian international automobile and motorcycle fittings industrial park, the traffic is very convenient. So far, Dai’s main products have been sold in more than 50 countries and regions of the United States, Britain, France, Italy, Russia, Brazil and other.
For more than 30 years, our glorious become member of China Printing Industry Printing Machinery Industry Association, and was the State Administration of quality and technical supervision sampling of qualified, the QZH1300 cutter won the provincial technical appraisal of new products, was awarded the title of famous and excellent technological products, master a number of national patents, has pentahedron gantry machining center, high precision vertical machining center and the robot plasma cutting machine, and so on computer numerical control equipment more than 150 sets, escort for the production of excellent quality products.
