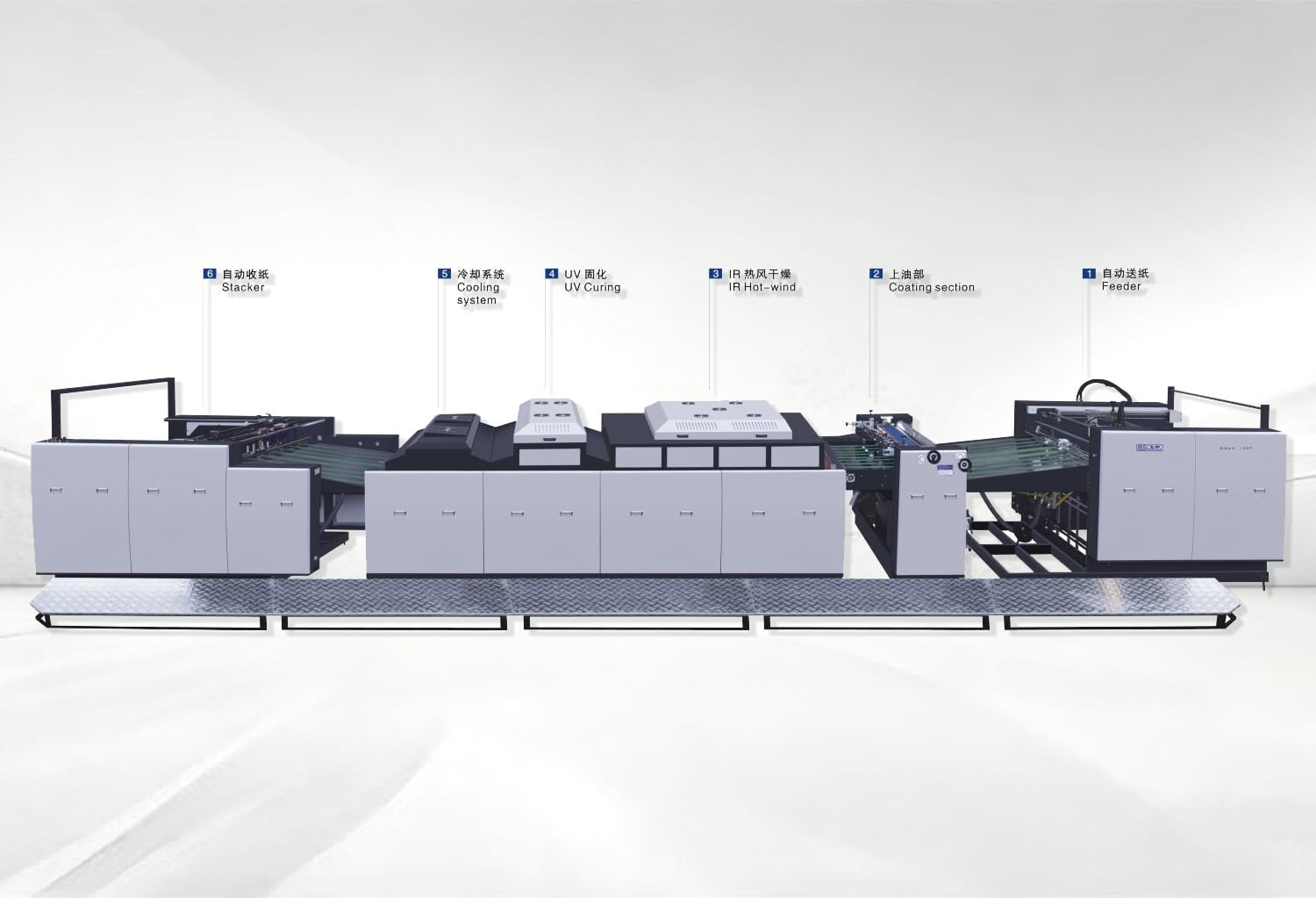

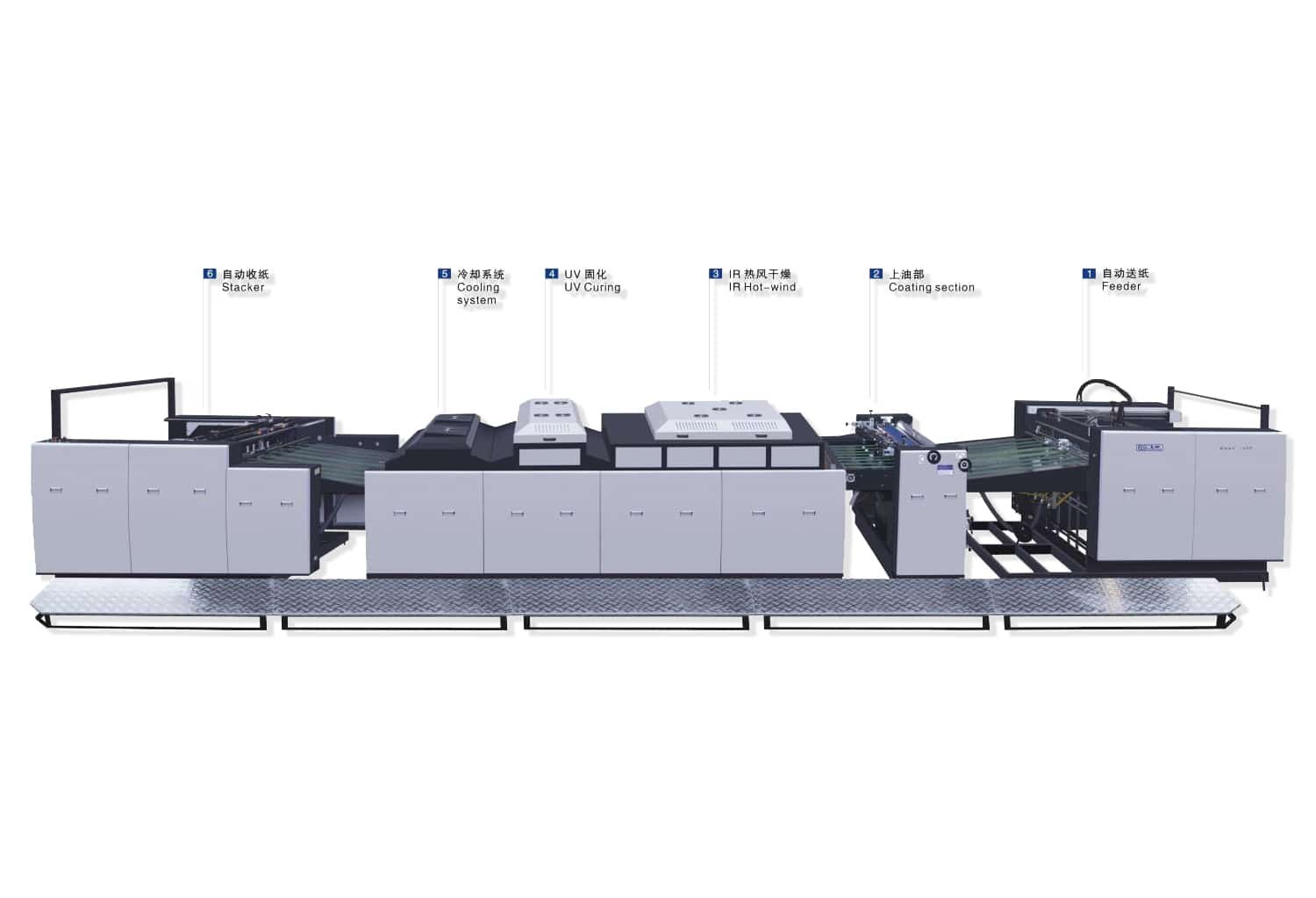

High-Precision Automatic Coating & Varnishing Machine
Paper pre – stacker，to realize non-stop paper feeding and receiving

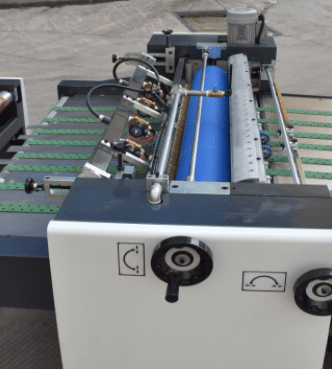

High degree of intelligence, one-button start and acceleration, more convenient and efficient than traditional segmented control.The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect!Synchronous belt transmission, the equipment is more stable, no jitter. The surface texture effect will be better in high-end products.The oil guard has high precision, and it is more difficult for water to enter the bearing than the traditional one.The air knife is easy to operate! High-precision correction, tight on both sides, no slight soft deformation and damage to the mesh belt.
| 型号 | Model | SGUV-800A | SGUV-1200A | SGUV-1200A-L |
| 最大纸张宽度 | Max. Sheet Size | 760*1050mm | 1200*1050mm | 1200*1450mm |
| 最小纸张宽度 | Min. Sheet Size | 270*270mm | 300*300mm | 300*300mm |
| 纸张克重 | Sheet Weight | 80~450g/m2 | 80~450g/m2 | 80~500g/m2 |
| 速度 | Speed | 0~80m/min | 0~80m/min | 0~80m/min |
| 整机功率 | Power | 35Kw | 40Kw | 50Kw |
| UV灯管 | UV Lamp | 2pcsx8Kw | 3pcsx9.75Kw | 3pcsx9.75Kw |
| 红外灯管 | IR Lamp | 18pcsx1.5Kw | 18pcsx1.5Kw | 18pcsx1.5Kw |
| 输纸高度 | Paper feed heigh | 1100 | 1100 | 1100 |
| 收纸高度 | Paper stack height | 1050 | 1050 | 1050 |
| 重量 | Weight | 6000kg | 6500kg | 6700kg |
| 体积 | Dimension | 1000x1800x20000mm | 11000x2000x2000mm | 13000x2200x2000mm |
The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper
delivery, feeder, and metering roller will all change according to the speed of the main machine.

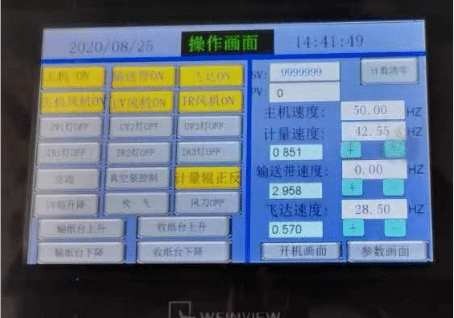

The metering roller controls the oil thickness, which can be set on the touch screen.

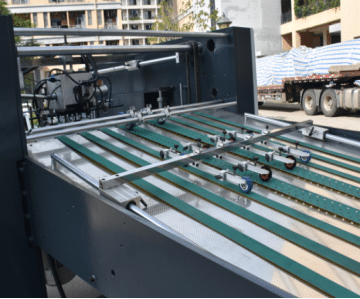

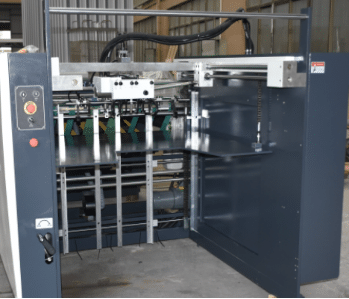

Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation, Paper photoelectric control, automatic lifting Double protection feeder lifting safety Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed indirectly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatlysave paper time and reduce the labor intensity of operators.
Paper photoelectric control, automatic lifting Double protection feeder lifting safety
Equipped with pneumatic paper flap function, you can set the number and time of the paper beat to ensure neatness Disorderly paper automatic lowering function

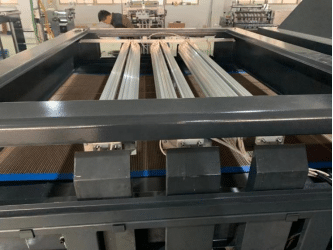

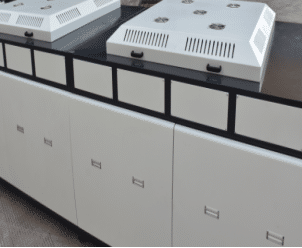

The better the leveling of the oven, the stronger the drying and curing.Equipped with UV and IR systems, which are controlled separately and cannot be used at the same time.3: 27 IR lamps and 3 UV lamps, IR lamps generally have a life of 2 years, UV lamps have a life of 800~1000H,and transformers have a life of more than one year. The UV part adopts 8-12KW adjustable electronic light source, which has greatly improved safetyperformance than the traditional voltage source light source.The light source can adjust the brightnessautomatically as the change of machine’s running speed, which can be changed from 30% to 100%. Thus the
average energy consumption is saved by more than 30%. Emergency stop or overheat protection device, when the emergency stop or the temperature insideexceeds 150 degrees, the protective cover will automatically rise to dissipate heat to prevent fire
