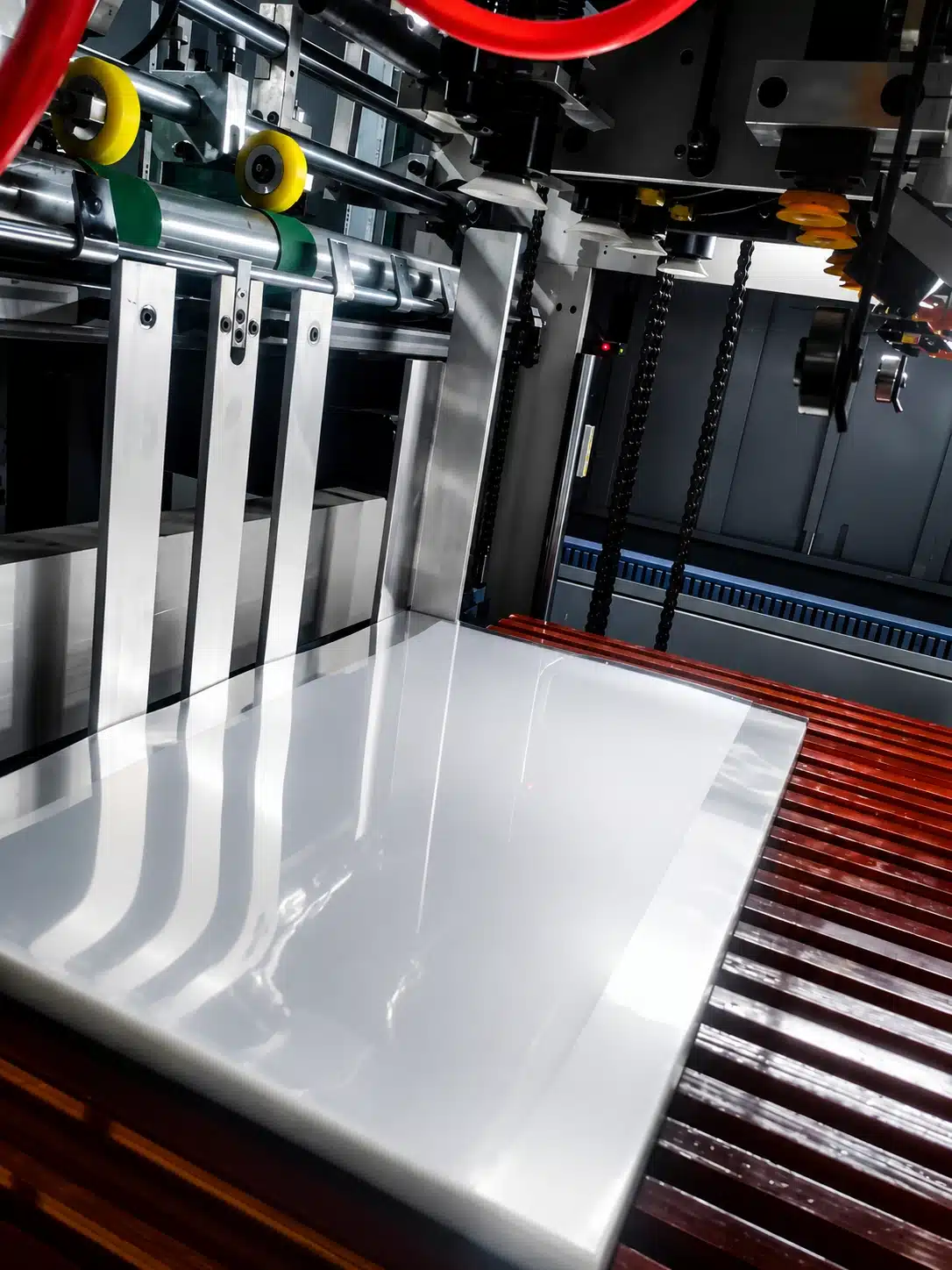

High-speed die cutting machine processing glossy paperboard sheet for precision packaging

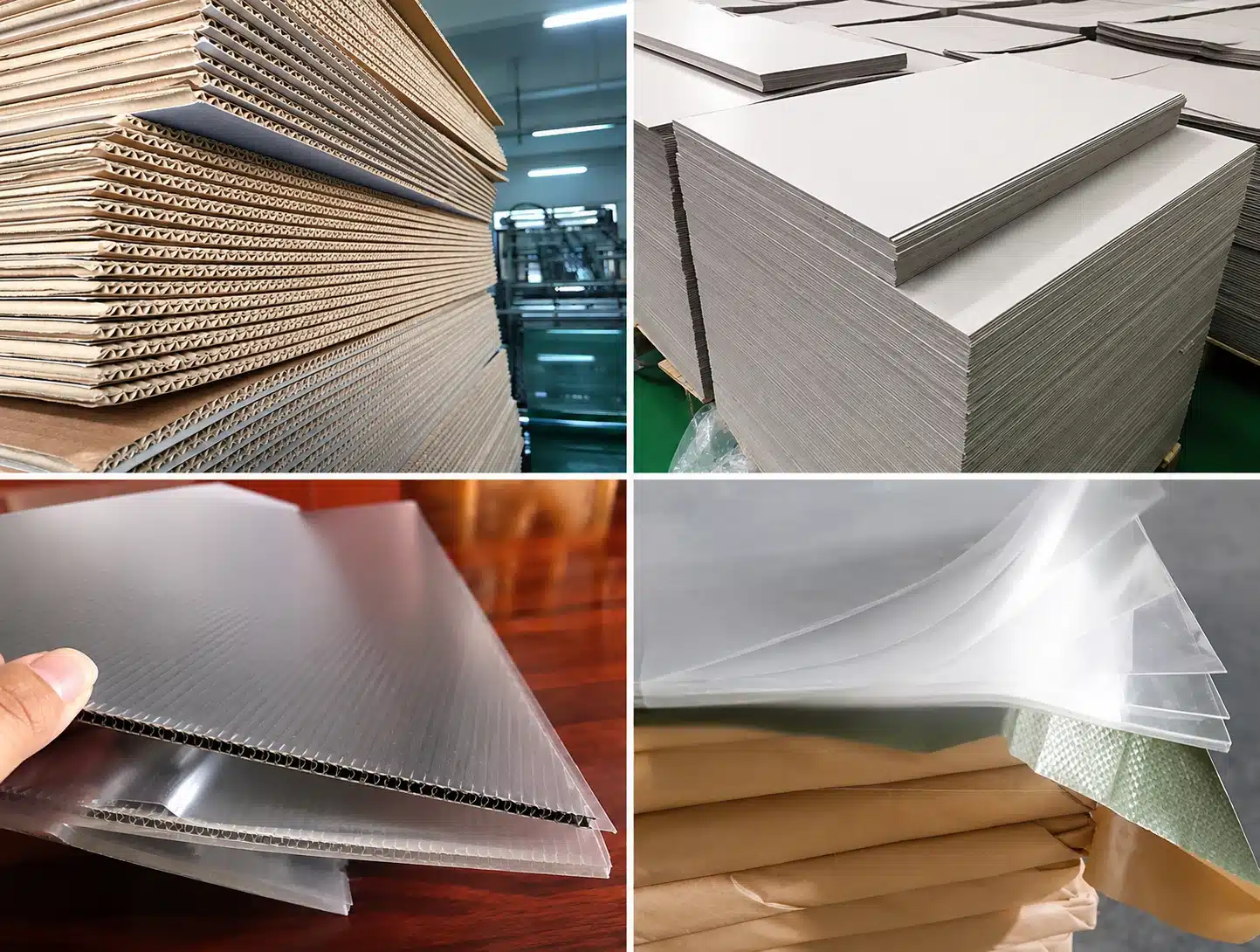

Comparison of common die cutting materials: corrugated board, greyboard, PP hollow sheet, and bubble wrap

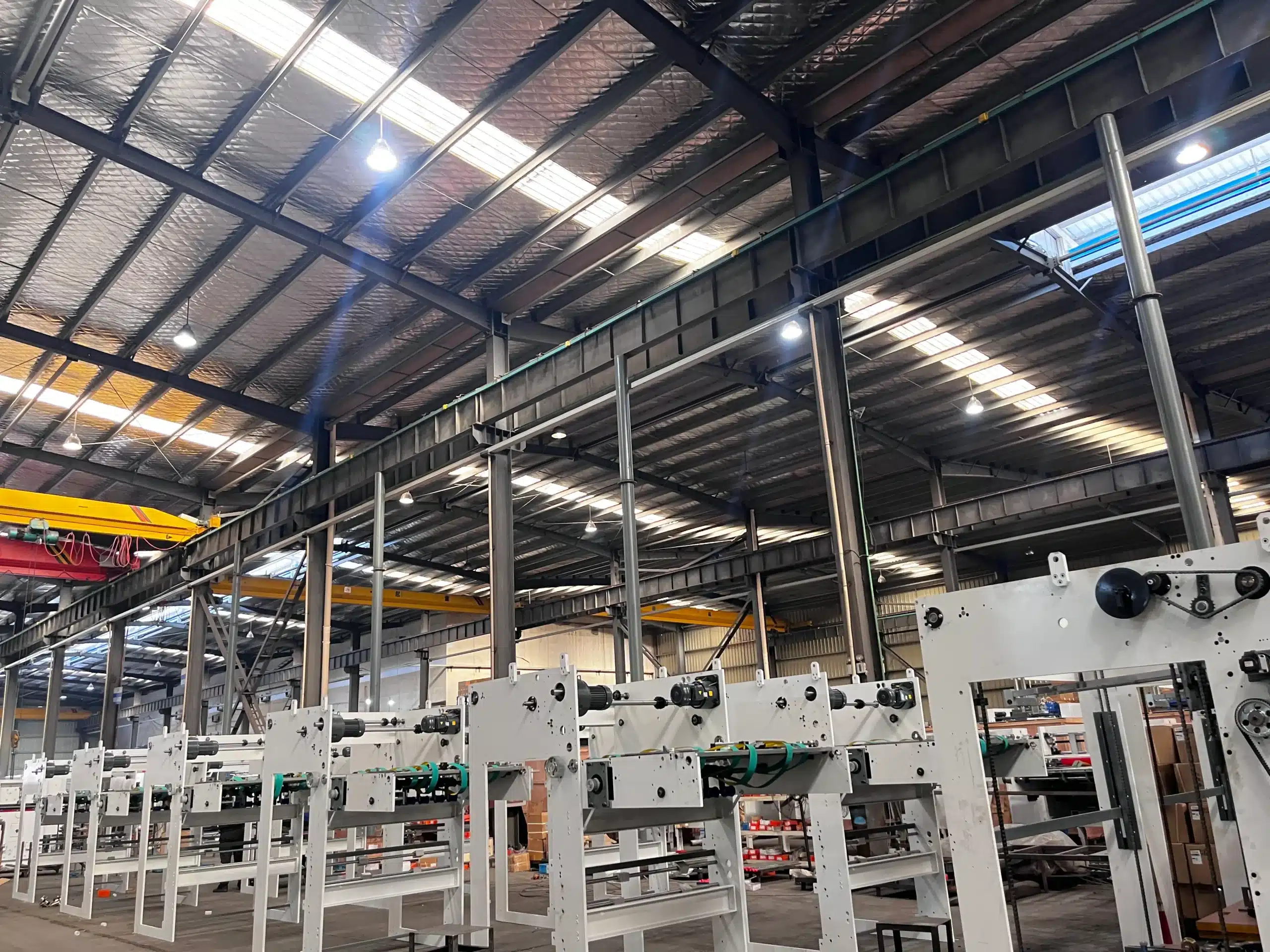

Wide-angle view of a modern die cutting workshop with multiple machine frames and overhead cranes.

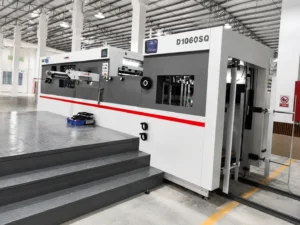

DAIS D1060SQ fully automatic die-cutting machine with servo control panel and safety features

D1060SQ Automatic Flatbed Die Cutting Machine for Carton Packaging

自1993年以来，大宇科技（DAI’S）专注于印后设备制造，产品远销全球50多个国家，凭借精准、可靠和高性价比赢得了客户的信赖。D1060SQ型号符合中国JB/T 8116.1-1998标准，并提供12个月免费保修和终生技术支持——是您升级生产线、升级升级的可靠合作伙伴。

Product Parameters
Installation drawing
Detail

D1060SQ automatic flatbed die cutting machine is designed for carton packaging factories and printing companies requiring high precision paperboard cutting and stable production performance 该机最大纸张尺寸为1060×760mm，最大支撑边距为8mm，可处理≥80gsm的白板和≤4mm厚的瓦楞纸板，适用于折叠纸盒、胶盒、瓦楞纸箱、标签、吊装、不干胶贴纸牌等。其独特的“高点压力保持”技术保证纸张模切力，防止毛边或褶皱，实现整洁的纸和纸的折痕，符合高端包装标准。

1.模切	屋顶的
2.最大纸张尺寸	1060*770毫米
3.最小纸张尺寸	450*360毫米
4.最大模切尺寸	1050*750毫米
5.最小嘴巴尺寸	8毫米
6.最大工作压力	300吨
7.适用范围	白板≥100克瓦楞纸厚≤9mm
8.模切精度	±0.1毫米
9.最大工作速度	7000转/小时
10.最大卸货速度	6500转/小时
11.最大堆高度	1600毫米
12.最大纸张收集高度	1500毫米
13.主电机功率	11千瓦
14.额定功率	23千瓦
15.机器重量	16吨
16.整体尺寸	784941472182毫米

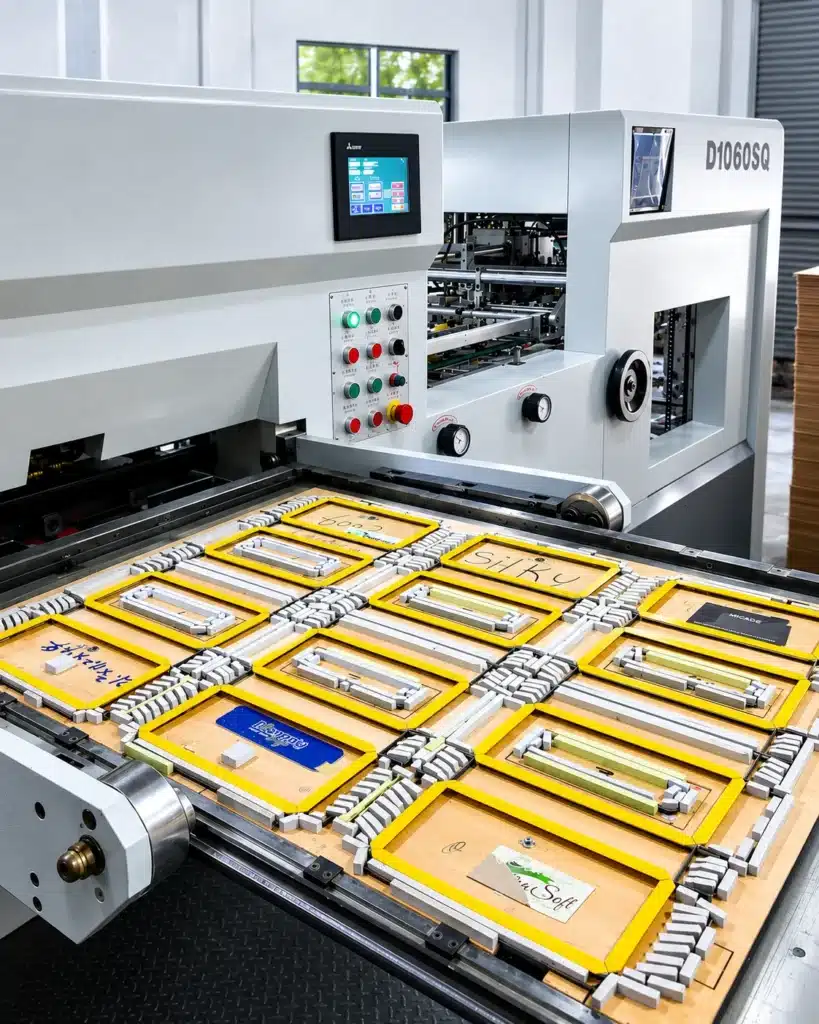

如下所示为DAI的D1060SQ型机器，传送带上承载着几个黄色相似的木制模具，已准备好进行自动化操作。该机器在处理各种纸质材料方面表现出色，从薄卡纸到厚瓦楞纸板均能轻松应对，是批量生产定制包装的理想之选。

使用DAI的D1060SQ自动模切机提升生产效率。这款自动模切机集切割、压痕和分割功能于一体，适用于纸盒和纸箱。速度快，精度高。

该配备送纸系统，顶部集成自动出纸和劳动力清理装置，最大限度减少人工干预，降低劳动强度。操作界面结合了触摸屏和机器点击实体，并支持用户设置。机器重量约18吨，焦点小，可承载大部分印刷车间布局。

DAI的D1060SQ现代平板模切机专为包装印刷行业而设计，将模切、压痕和自动剩余清空集成于一个系统中，显着提升生产效率和成品质量。该机采用高球强度墨铸铁，确保高速运转时的稳定性和耐用性；配备备用驱动和PLC智能控制系统，可实现精准定位和无级调速，最高速度6000张/完美小时，满足大批量生产需求。
