High-Speed Laminating Machine

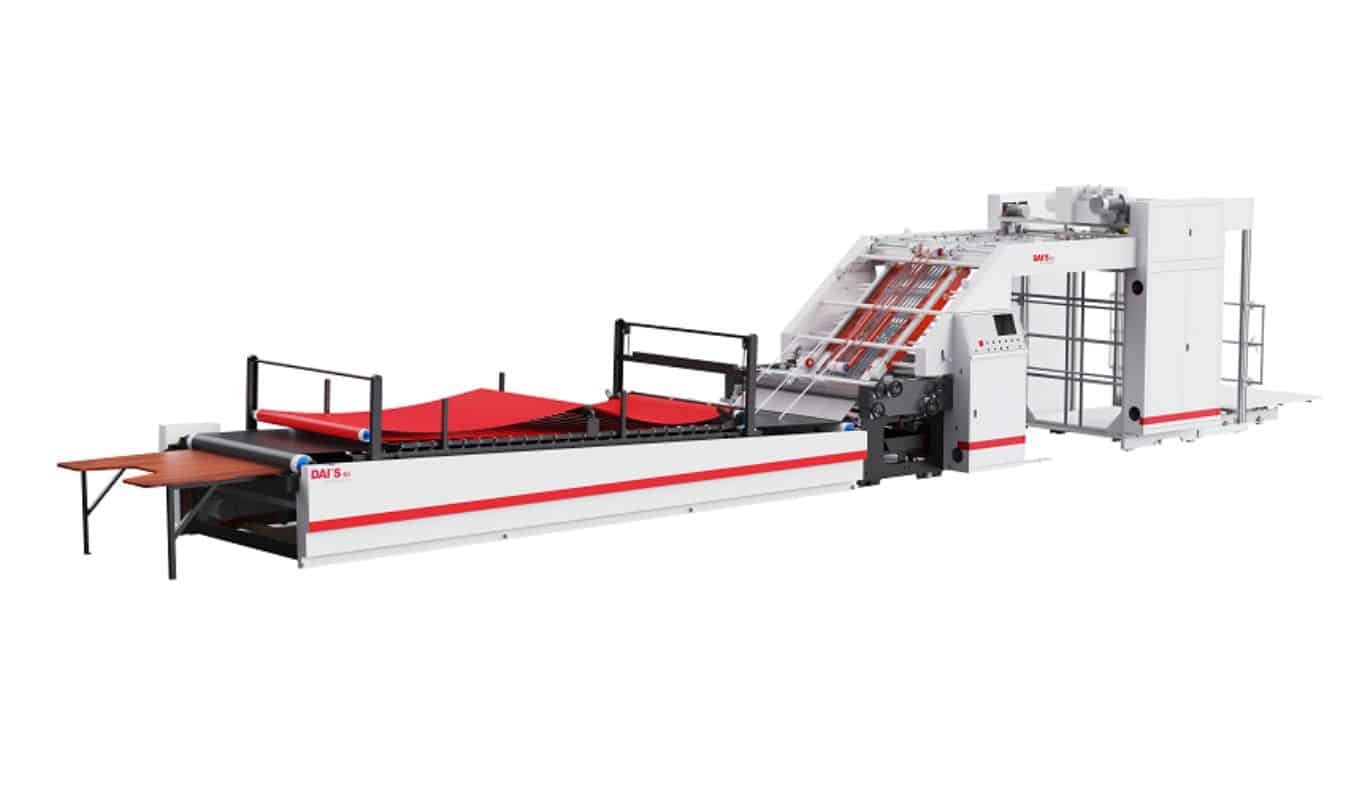

DS-1450 / DS-1650 Laminating Machine
Reach up to 150 m/min for higher productivity. Designed for stable, accurate sheet-to-flute laminating with smooth high-speed performance.
- Max speed: 12000 sheets/hour (150 m/min)
- Top sheet: 150–800 g/m²
- Bottom sheet: A/B/C/E/F flute, 3 & 5 ply
- Accuracy: ±1 mm (DS-1450) / ±1.5 mm (DS-1650)
Optional flip-flop stacker / turnover delivery supports non-stop delivery.
Introduction
The DS series adopts an international motion controller, enabling automatic adjustment after sheet size input. Compared with traditional models, it reaches up to 150 m/min to significantly improve productivity.
A dedicated positioning-and-correcting system for the top sheet, combined with a self-developed side-lay device, ensures smooth operation even at high speed. An optional turnover delivery enables non-stop production.
Core Advantages
- High-speed performance up to 150 m/min
- Stable registration with positioning & correction system
- Side-lay device for smooth high-speed feeding
- Wide material compatibility (A/B/C/E/F flute, 3 & 5 ply)
- User-friendly control with quick size changeover
- Optional flip-flop stacker for non-stop delivery
Technical Parameters
| Item | DS-1450 | DS-1650 |
|---|---|---|
| Max. Sheet Size | 1450 × 1420 mm | 1650 × 1650 mm |
| Min. Sheet Size | 400 × 400 mm | 400 × 400 mm |
| Max. Height of Bottom Sheet | 400 mm | 400 mm |
| Max. Height of Top Sheet | 1800 mm | 1800 mm |
| Top Sheet Range | 150–800 g/m² | 150–800 g/m² |
| Bottom Sheet Range | A/B/C/E/F flute, 3 & 5 ply | A/B/C/E/F flute, 3 & 5 ply |
| Laminating Accuracy | ±1 mm | ±1.5 mm |
| Max. Speed | 12000 sheets/h (150 m/min) | 12000 sheets/h (150 m/min) |
| Power Consumption | 22 kW | 25 kW |
| Dimension | 13500 × 2450 × 2600 mm | 16986 × 2650 × 2700 mm |
| Weight | 8000 kg | 9800 kg |
Request a Quote or Technical Consultation
Share your sheet size, flute type, and production target. Our engineers will recommend the right configuration.
