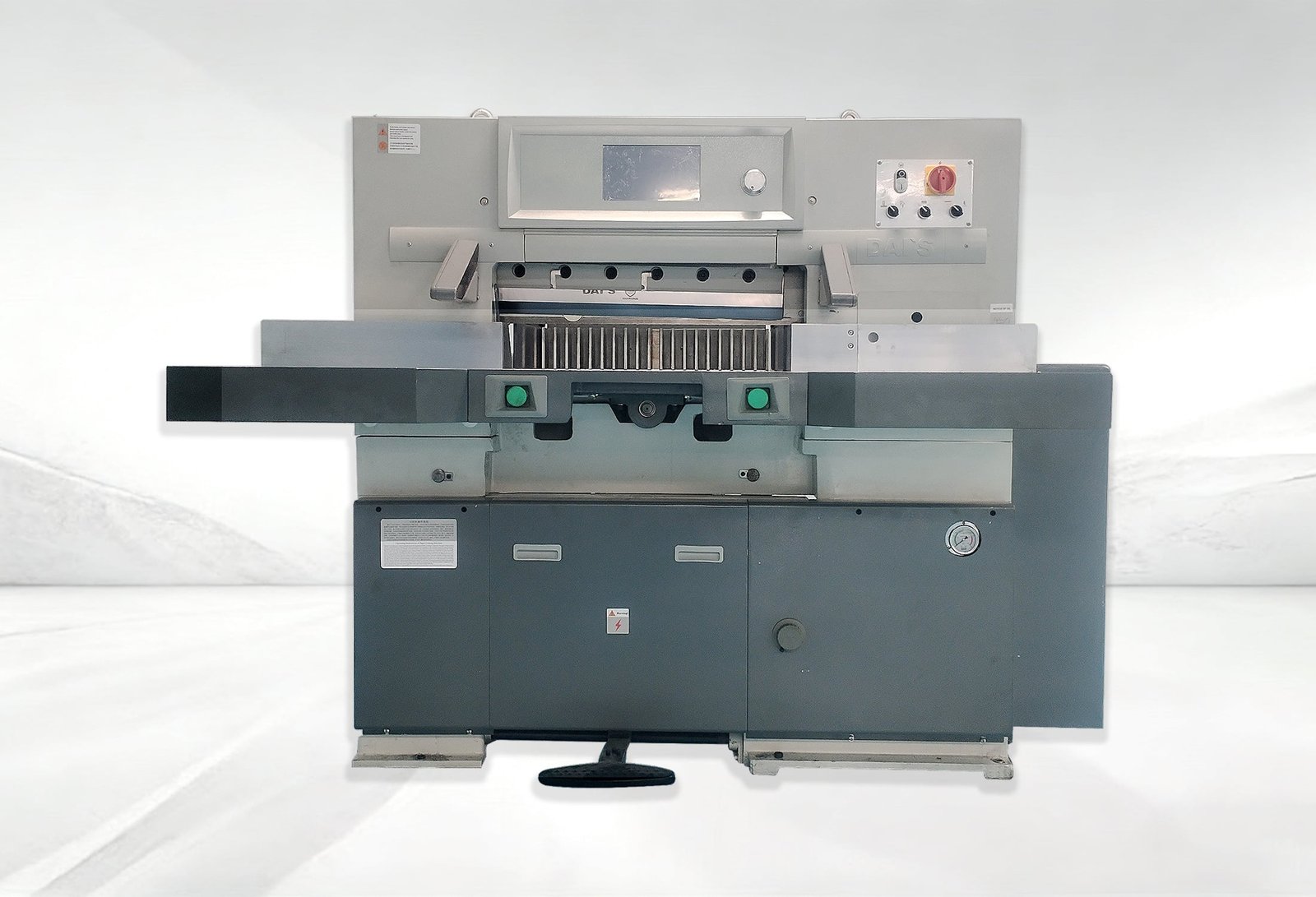

QZK660M10 Paper Cutting Machine
Uses 10 inch color touch LCD computer control system form Taiwan,with a capacity of 1,000,000 programs and over 50 self -diagnosing functions.
* Self-diagnosis displays cause of problem and solution. The interface color can be changed at the operator’s discretion.
* All major languages are available at the touch of a button. Display precision is 0.01mm,the system’s mechanical accuracy is 0.01mm,backguage speed is 15m/min.
| model | unit | QZK660M10 |
| Cutting width | mm | 660 |
| Cutting length | mm | 660 |
| The cutting height | mm | 110 |
| Front extension of bench | mm | 510 |
| Table height | mm | 930 |
| The motor power | kw | 3 |
| Maximum paper pressure | daN | 3000 |
| Cutting speed | times/min | 42 |
| The net weight | kg | 1900 |

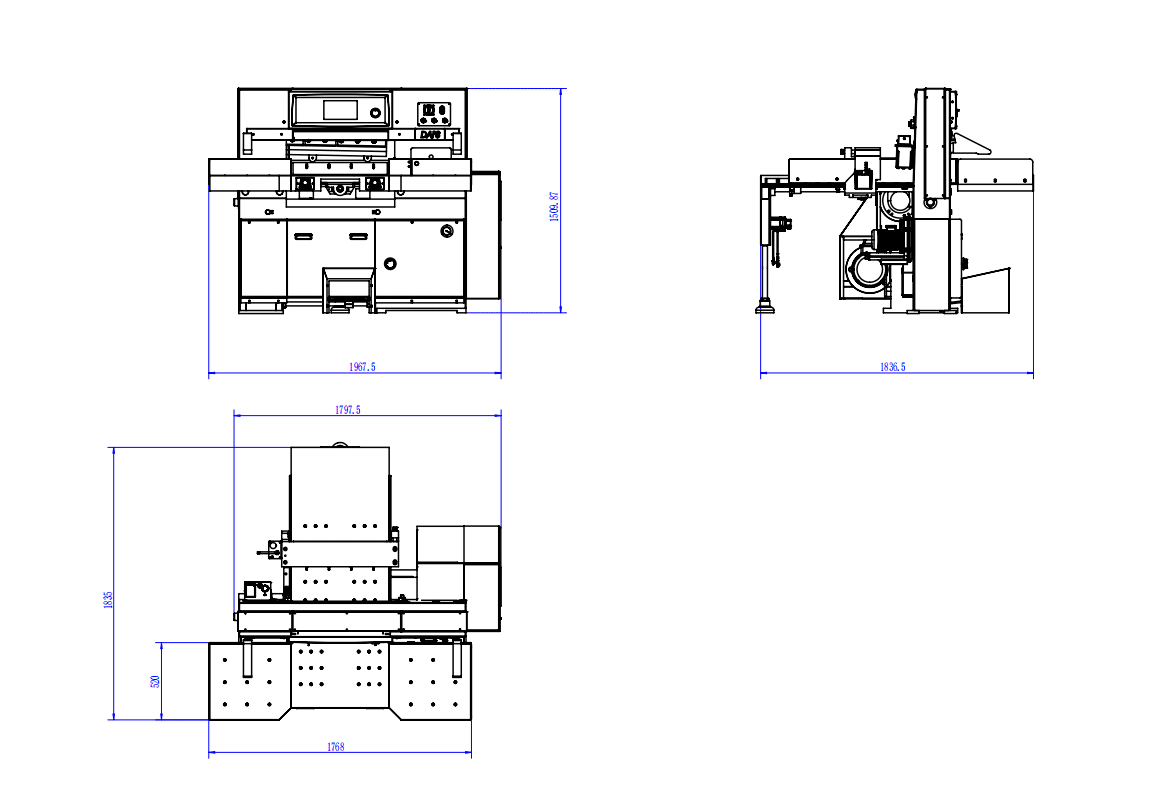

| Overall dimensions | m | 1.5×1.8×1.5 |
| Packing size | m | 1.8×1.4×1.6 |
Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.

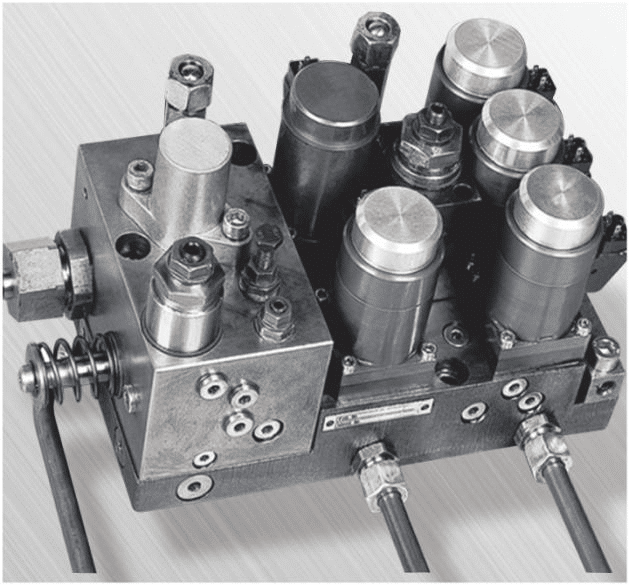

Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted,The paper is pressed twice by pressure-increased system.
Safety device for knife bed,overloading protect-ion for cutting,automatic return safety device

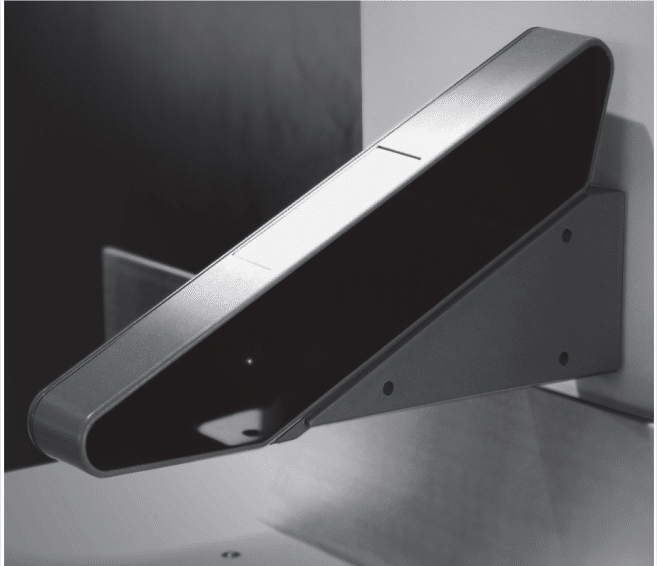

To provide infrared grating ciruit protection,in line with european ce standards.
