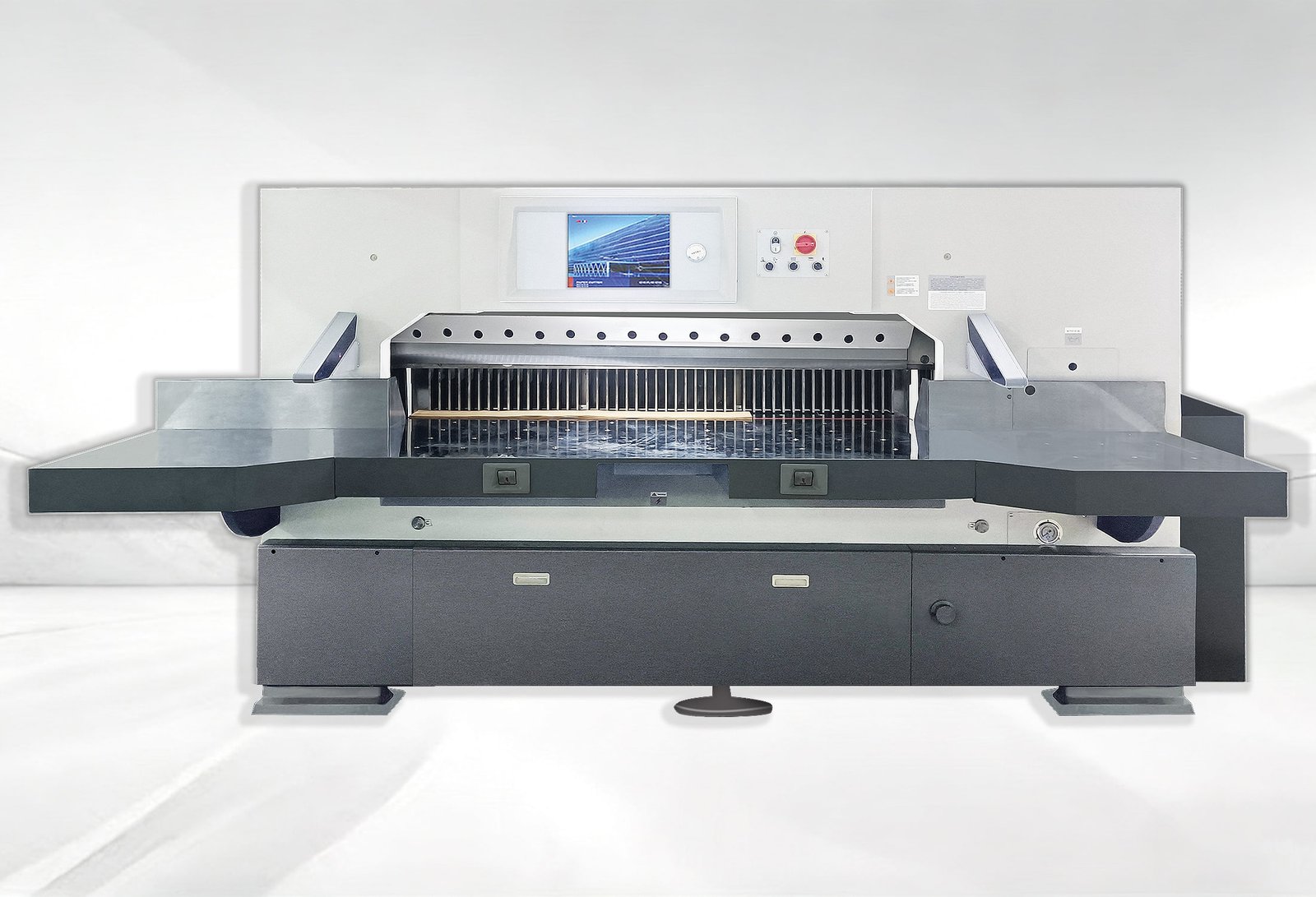

QZK2000M15 Paper Cutting Michine
Schneider ac contactor, Delixi air switch, Omron micro opening, NSK transmission bearing, 16 eye dual relay infrared protection, Hansheng sealing ring, linear guide rail and ball screw; Computer display system: 15 inch Taiwan LCD screen, with a storage capacity of 10000 programs and a paper pushing speed of up to 18 meters/minute. It has a fault self-diagnosis function and a data resolution of 0 01 mm, standard with servo drive system, brand PLC. Paper cutting system: secondary enveloping turbine reducer, dual hydraulic clutch, more stable and gentle cutting. The main motor is Yaojiang brand, with a power of 7.5KW. The air pump is manufactured by Zhejiang Sensen Group, with a power of 0.75kW and a large air volume, ensuring easy and flexible movement of the paper on the electroplating surface. Added convenient tool changing device, blade ejection device, and centralized oil supply device Hydraulic system: The height of the straight top oil cylinder is 160mm, and it is equipped with a secondary function of flexible paper pressing. The pressure of the pressing plate can be adjusted according to the material and material accuracy requirements.
| model | unit | QZK2000M15 |
| Cutting width | mm | 2000 |
| Cutting length | mm | 2000 |
| The cutting height | mm | 160 |
| Front extension of bench | mm | 700 |
| Table height | mm | 930 |
| The motor power | kw | 7.5 |
| Maximum paper pressure | daN | 6500 |
| Cutting speed | times/min | 42 |
| The net weight | kg | 6500 |

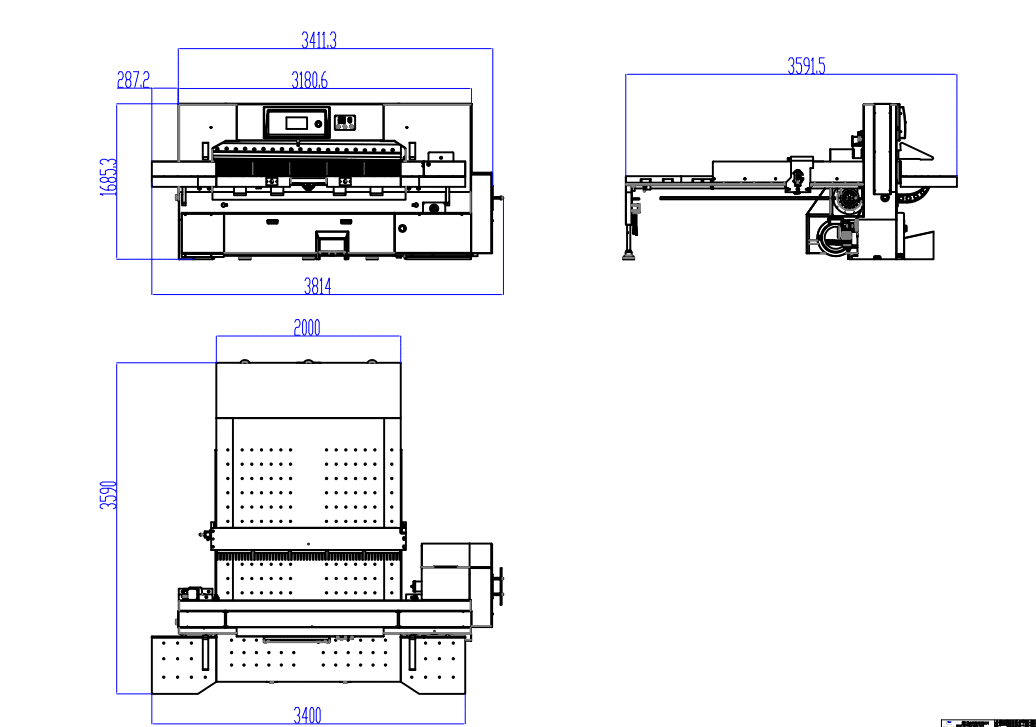

| Overall dimensions | m | 3.6×3.2×1.7 |
| Packing size | m | 3.6×1.7×2.25 |
The paper cutter adopts an advanced double-layer enveloping worm gear transmission system, manufactured with high-purity bronze base material, featuring smooth operation, wear resistance, long service life, and high transmission efficiency. The A series paper cutter employs gear pair transmission, which operates slightly slower than the M series but offers better cost-effectiveness.

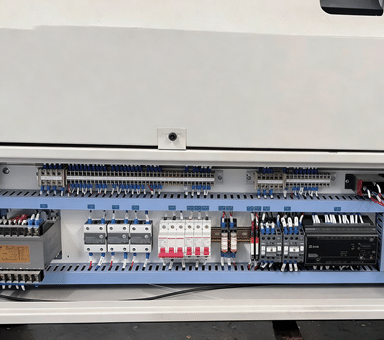

The main low-voltage electrical components are all selected fromproducts of international famous brands such as Schneider,Omron, ABB, etc.

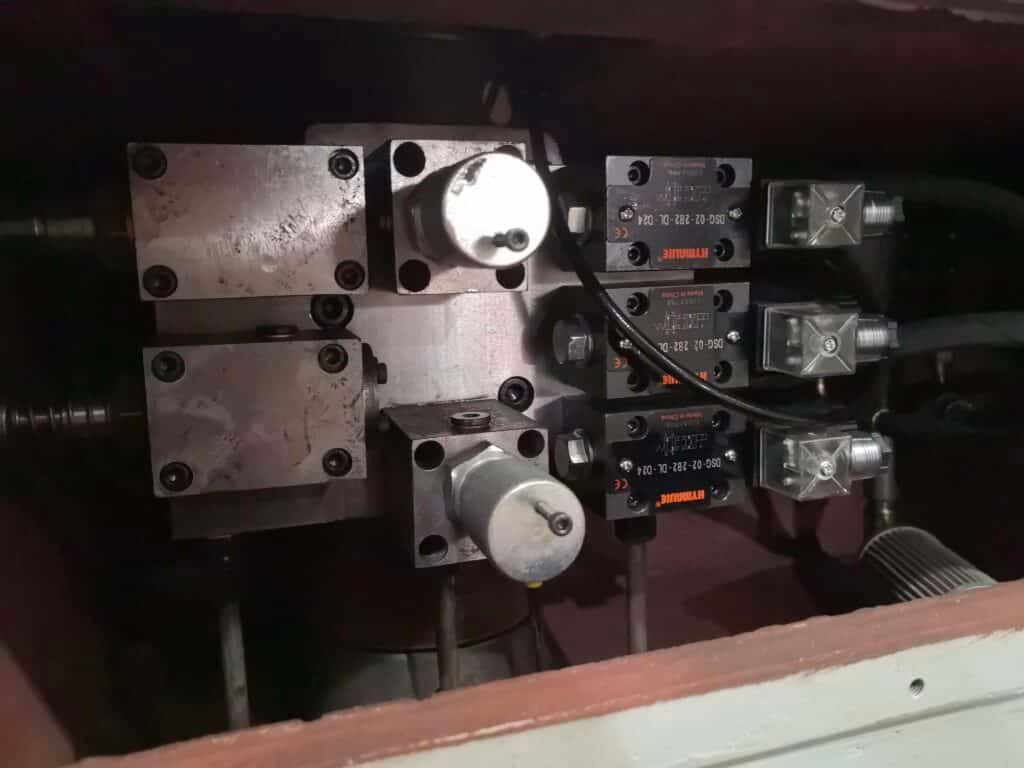

The built-in plunger type rapid booster cylinder adopting Germantechnology has a wide range of adjustable pressure to adapt to thecutting pressure of different papers. The sealing parts are selectedfrom Taiwan Escort Seal’s products. The hydraulic valves and ollpumps can be selected from Italy or domestic products that complywith the ISO standards.
Technical characteristics: the infrared grating circuitprotection system is provided, which complies with theEuropean CE standard.
DAI‘S PRINTING MACHINE CO.,LTD
Dai’s Printing Machinery Co., Ltd. is by production Postpress equipment has a long history of Ruian City, Zhejiang Province, Xinhua printing machine factory with the French Bafang company, in 1993 as a joint venture, planning a total investment of 19 million dollars, covers an area of 50000 square meters. Company name from the original NPC vice chairman Long Fei personally wrote, located in the beautiful scenery of Zhejiang Province Lishui City Economic Development Zone and Ruian international automobile and motorcycle fittings industrial park, the traffic is very convenient. So far, Dai’s main products have been sold in more than 50 countries and regions of the United States, Britain, France, Italy, Russia, Brazil and other.

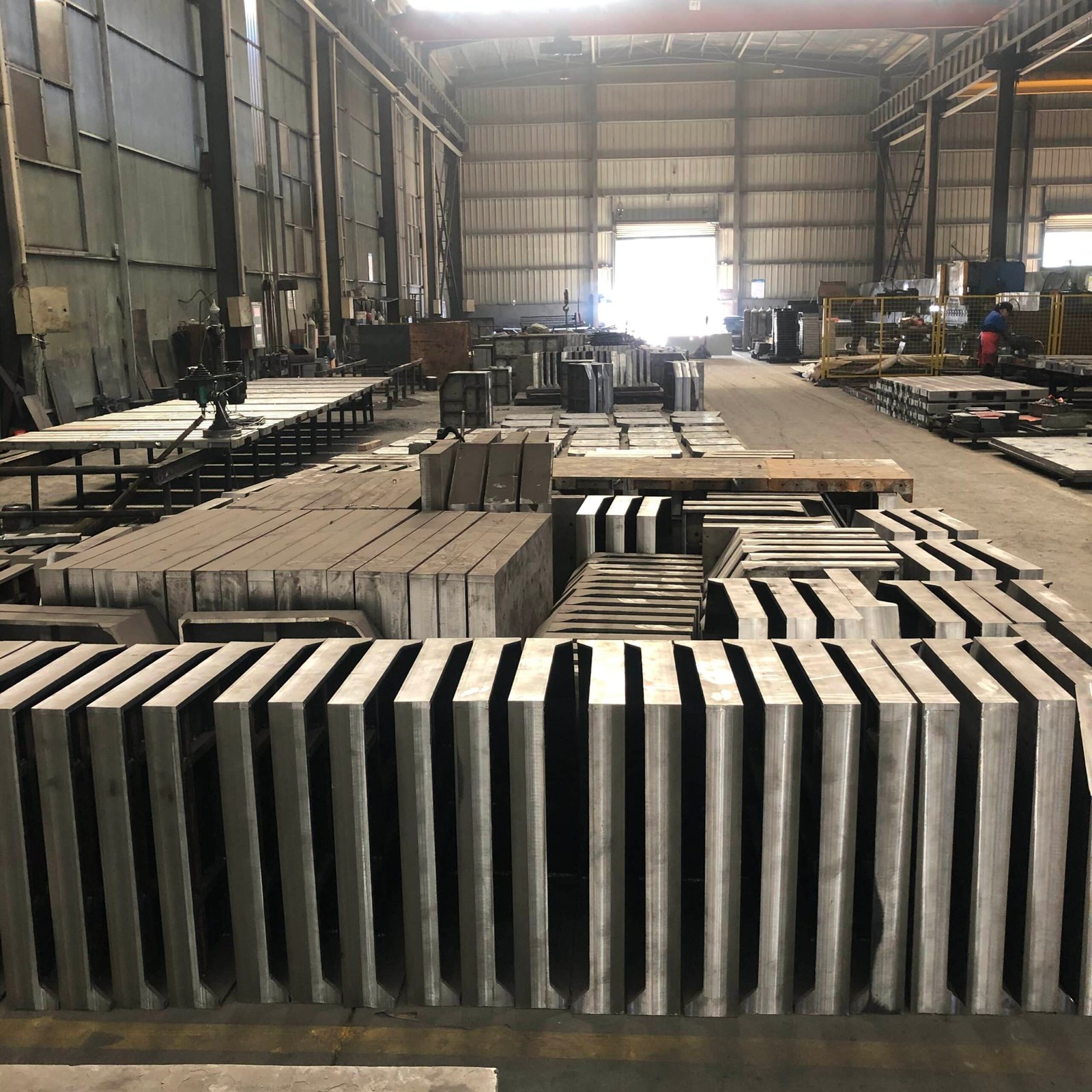

For more than 30 years, our glorious become member of China Printing Industry Printing Machinery Industry Association, and was the State Administration of quality and technical supervision sampling of qualified, the QZH1300 cutter won the provincial technical appraisal of new products, was awarded the title of famous and excellent technological products, master a number of national patents, has pentahedron gantry machining center, high precision vertical machining center and the robot plasma cutting machine, and so on computer numerical control equipment more than 150 sets, escort for the production of excellent quality products.
