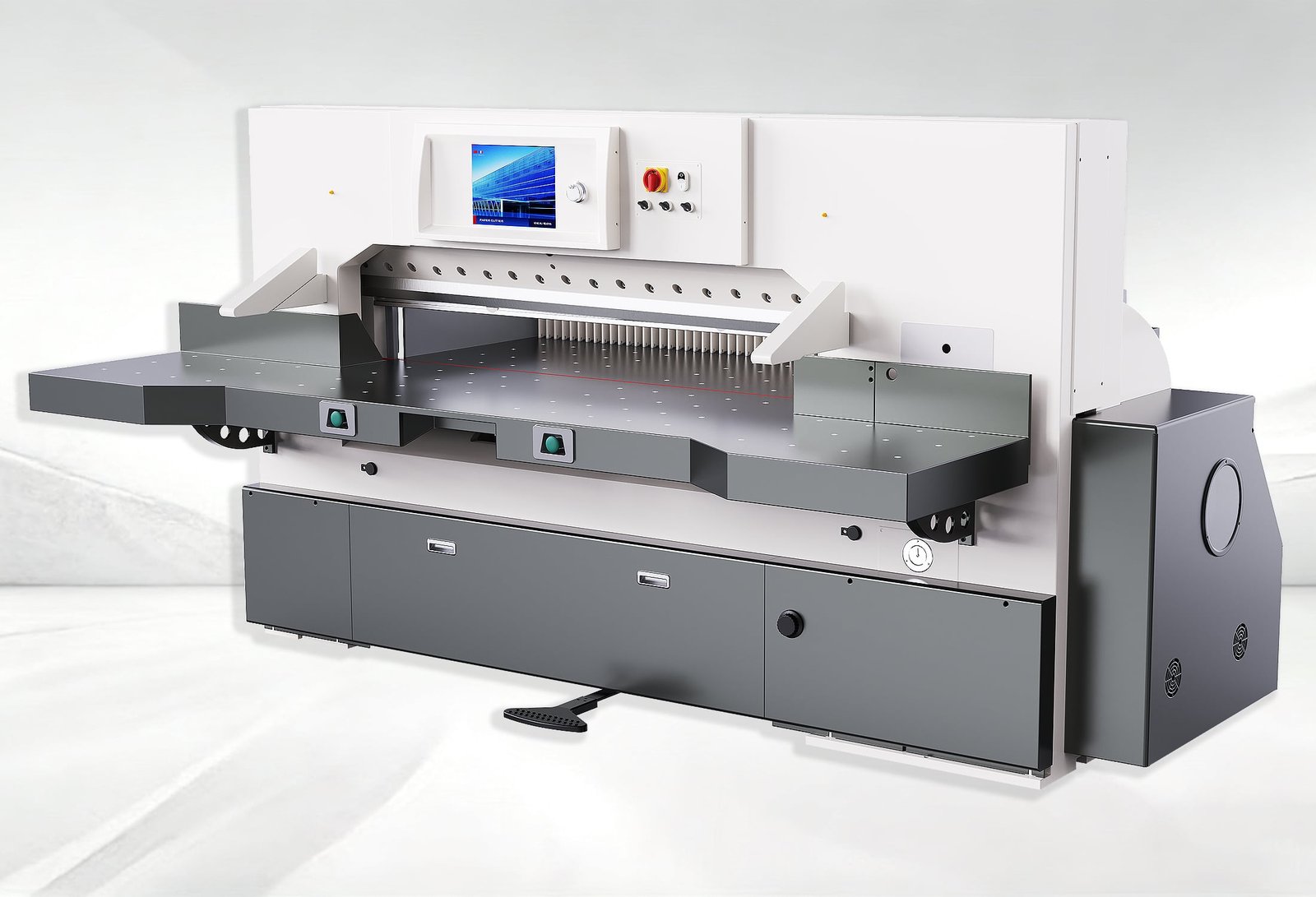

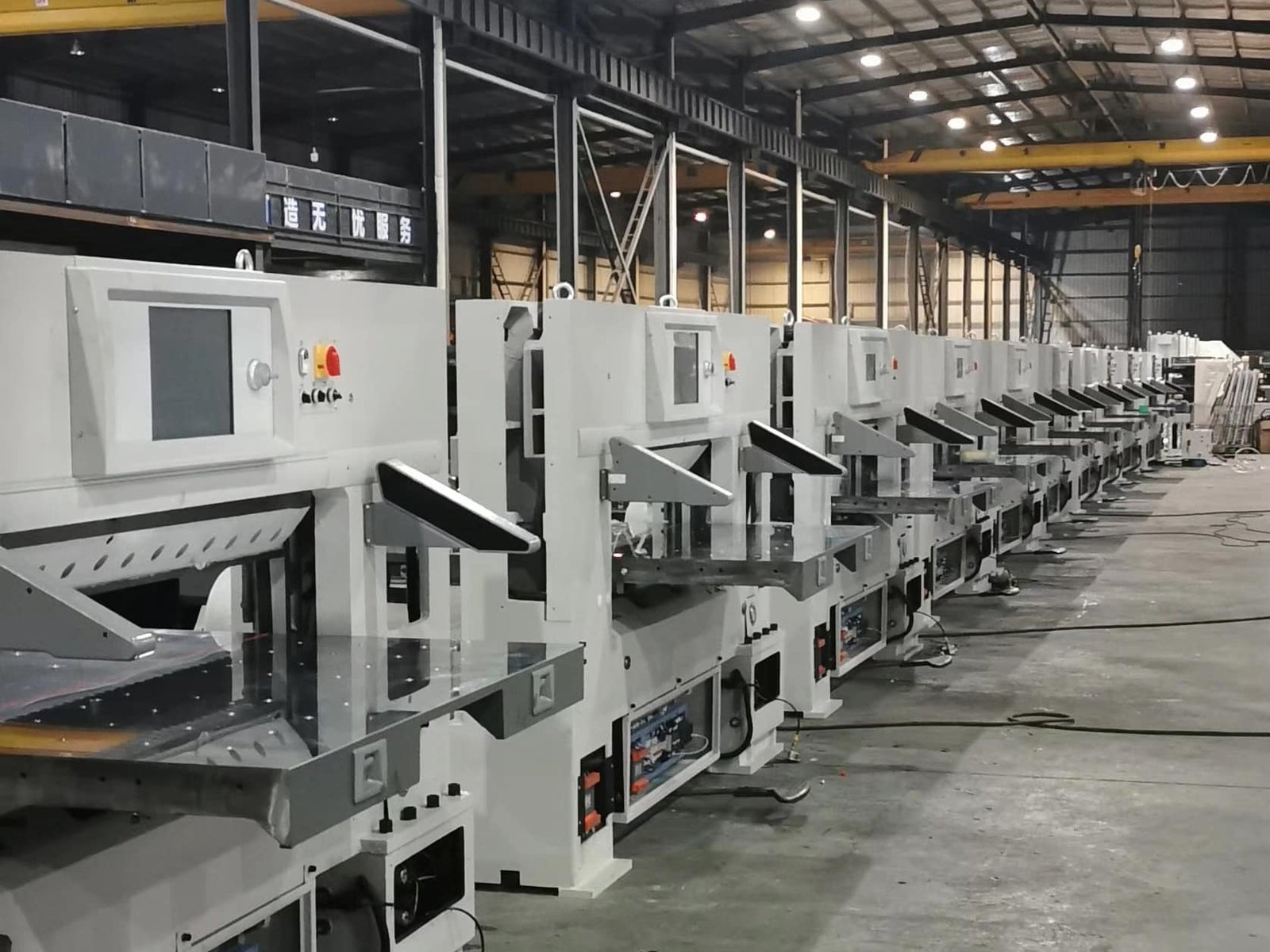

QZK1860M15 Paper Cutting Machine

The M15 series paper cutting machine can bring you advantages in two fields: high cutting range specification, which saves the cutting time, and high-speed, safe and programmable paper cutter, facing the future-oriented control system, which reduces the labor intensity of the operator.

The optimal cutting accuracy of the model with modular design makes the operation convenient and stable, reduces the adjustment time before startup, and speeds up the production time.

Product Parameters

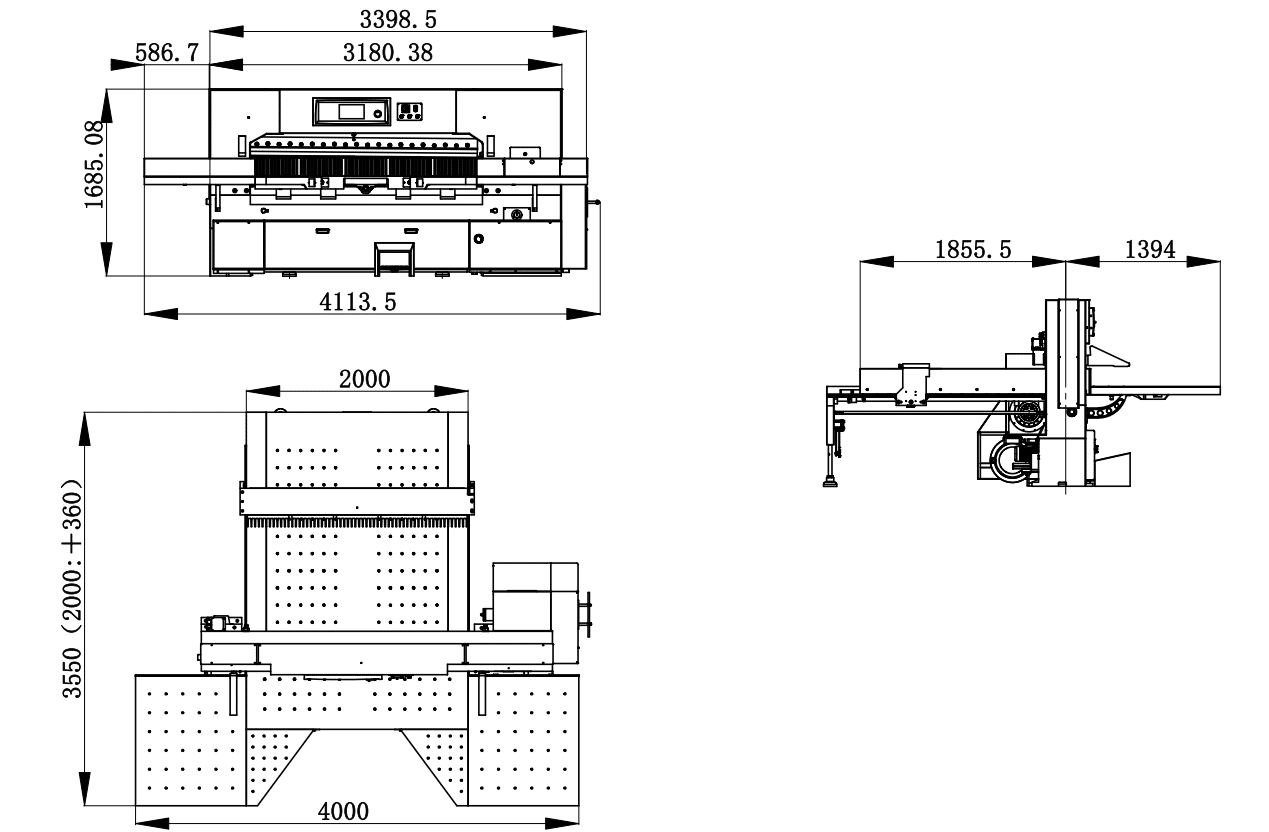

Installation drawing
Detail

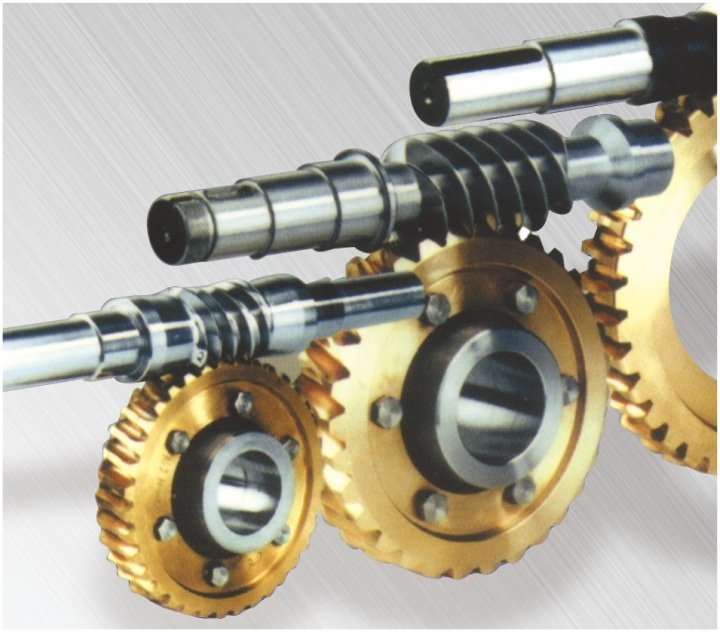

Schneider ac contactor, Delixi air switch, Omron micro opening, NSK transmission bearing, 16 eye dual relay infrared protection, Hansheng sealing ring, linear guide rail and ball screw; Computer display system: 15 inch Taiwan LCD screen, with a storage capacity of 10000 programs and a paper pushing speed of up to 18 meters/minute. It has a fault self-diagnosis function and a data resolution of 0 01 mm, standard with servo drive system, brand PLC. Paper cutting system: secondary enveloping turbine reducer, dual hydraulic clutch, more stable and gentle cutting. The main motor is Yaojiang brand, with a power of 7.5KW. The air pump is manufactured by Zhejiang Sensen Group, with a power of 0.75kW and a large air volume, ensuring easy and flexible movement of the paper on the electroplating surface. Added convenient tool changing device, blade ejection device, and centralized oil supply device Hydraulic system: The height of the straight top oil cylinder is 160mm, and it is equipped with a secondary function of flexible paper pressing. The pressure of the pressing plate can be adjusted according to the material and material accuracy requirements.

model	unit	QZK1860M15
Cutting width	mm	1860
Cutting length	mm	1860
The cutting height	mm	160
Front extension of bench	mm	700
Table height	mm	930
The motor power	kw	7.5
Maximum paper pressure	daN	6500
Cutting speed	times/min	42
The net weight	kg	7500
Overall dimensions	m	3.4×3.2×1.7
Packing size	m	3.6×1.7×2.25

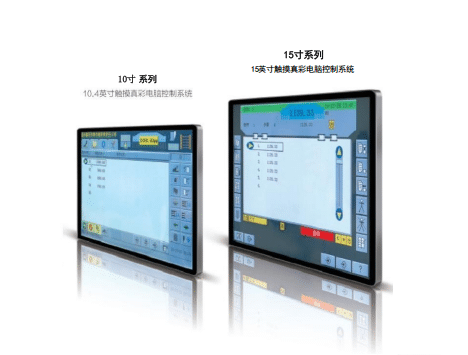

Uses Taiwan 15 inch colortouch LCD comput- er control system,witha capacity of 1,000,000 programs and over 50 self-diagnosing,functions.Self-diagnosis displays cause of
problem and solution.The interface color can be changed at the operator’s discretion,All major languages are available at the touch of a button.Display precision is 0.01mm,the
system’s mechanical accuracy is 0.15mm, backguage speed is 18m/min.

Imported hydraulic components are adopted in
hydraulic system, the pressure can be adju- sted, The paper is pressed twice by pressureincreased system

Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.

Imported electric components LG、OMRON、
SIEMENS
