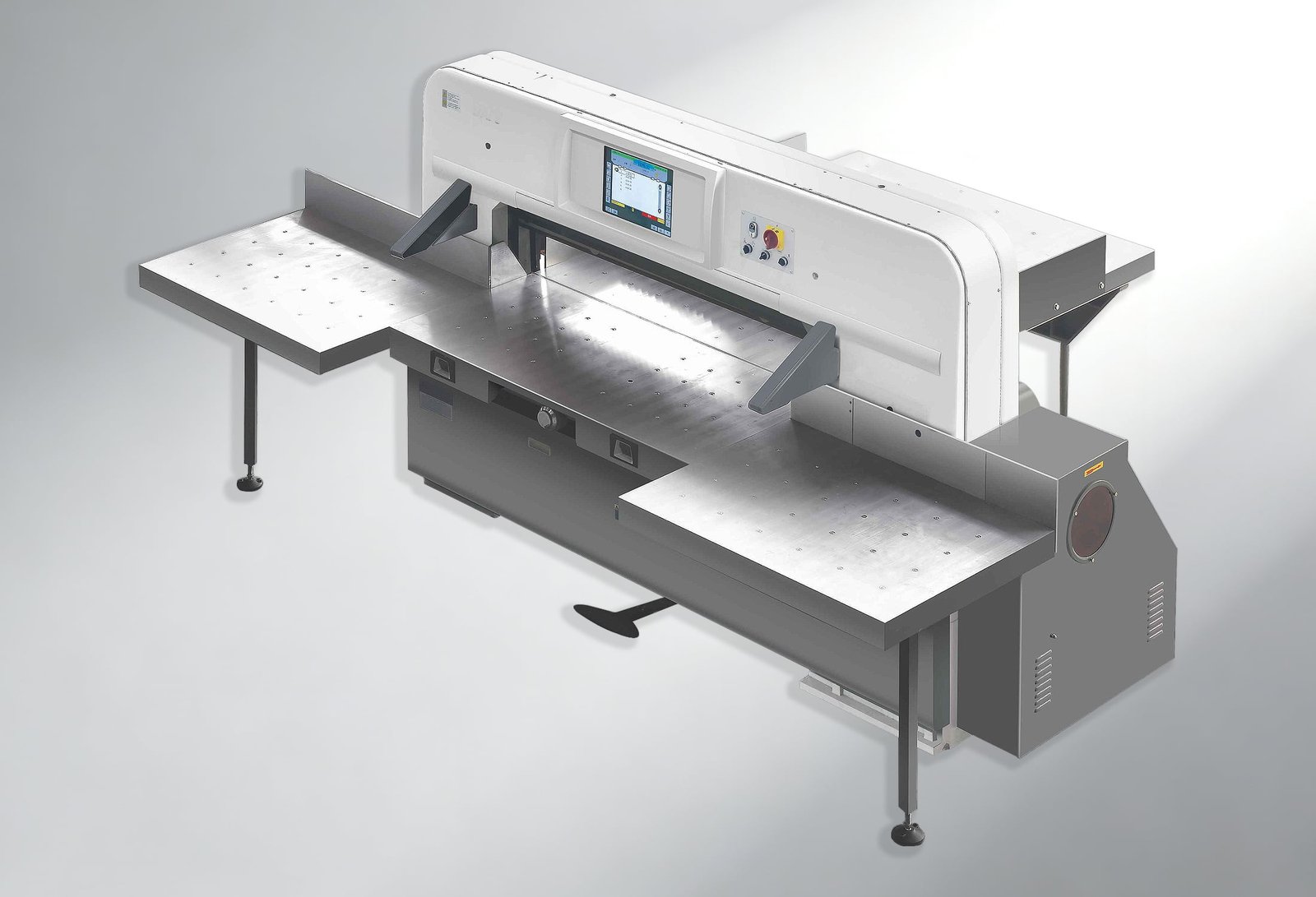

QZK1640M15 Automatic Paper Cutting Machine Manufacturer

M15系列切纸机可在两个方面为您带来优势:切割范围规格高,节省切割时间;高速、安全、可编程的切纸机,面向未来的控制系统,降低操作人员的劳动强度。

采用模块化设计的机型具有最佳切割精度,操作方便稳定,减少了启动前的调整时间,加快了生产速度。

施耐德交流接触器、德力西气动开关、欧姆龙微动开关、NSK传动轴承、16眼双继电器红外保护、汉盛密封圈、直线导轨和滚珠丝杠;计算机显示系统:15英寸台湾液晶屏,程序存储容量10000个,送纸速度高达18米/分钟。具备故障自诊断功能,数据分辨率0.01毫米,标配伺服驱动系统和品牌PLC。切纸系统:二次包覆式涡轮减速机,双液压离合器,切纸更稳定柔和。主电机为耀江品牌,功率7.5千瓦。气泵为浙江森森集团制造,功率0.75千瓦,风量大,确保纸张在电镀面上移动轻松灵活。新增便捷的换刀装置、刀片弹出装置和集中供油装置。液压系统:直顶油缸高度为165mm,并具备柔性纸张压紧的辅助功能。压板压力可根据材料和材料精度要求进行调节。
模型 单元 QZK1640M15
切割宽度 毫米 1640
切割长度 毫米 1640
切割高度 毫米 160
长凳前部延伸 毫米 700
桌子高度 毫米 930
电机功率 千瓦 7.5
最大纸张压力 5500
切割速度 次数/分钟 42
净重 公斤 5500
整体尺寸 3×3.2×1.7
包装尺寸 3.15×1.7×2

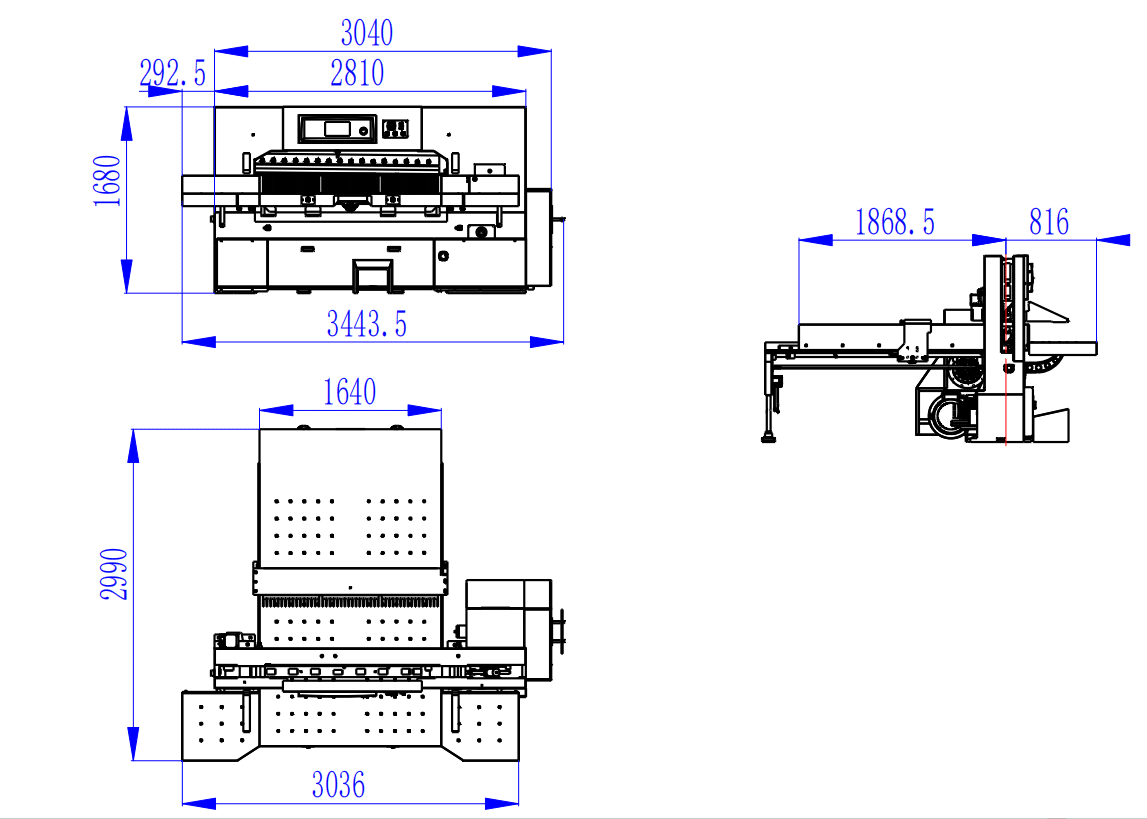

Technical drawing showing three views of the OZK1640M15 paper cutting machine, including detailed dimension annotations.

M10-15 inch computer screens for industrial equipment, showing operation interfaces of two different sizes.

采用台湾产15英寸彩色触摸液晶电脑控制系统,程序容量达100万个,具备50余项自诊断功能。自诊断功能可显示
故障原因及解决方案。界面颜色可由操作员自行更改,一键切换所有主流语言。显示精度为0.01mm,
系统机械精度为0.15mm,后挡料速度为18m/min。

液压系统采用进口液压元件
,压力可调,纸张经增压系统压制两次。

滚珠丝杠和直线导轨使纸张叶轮运行平稳、噪音低、定位准确,大大提高了切割精度和速度,延长了切纸机的使用寿命。

进口电子元件:LG、欧姆龙、
西门子

DAIS PRINTING MACHINE CO.,LTD

Dai’s Printing Machinery Co., Ltd. is by production Postpress equipment has a long history of Ruian City, Zhejiang Province, Xinhua printing machine factory with the French Bafang company, in 1993 as a joint venture, planning a total investment of 19 million dollars, covers an area of 50000 square meters. Company name from the original NPC vice chairman Long Fei personally wrote, located in the beautiful scenery of Zhejiang Province Lishui City Economic Development Zone and Ruian international automobile and motorcycle fittings industrial park, the traffic is very convenient. So far, Dai’s main products have been sold in more than 50 countries and regions of the United States, Britain, France, Italy, Russia, Brazil and other.

For more than 30 years, our glorious become member of China Printing Industry Printing Machinery Industry Association, and was the State Administration of quality and technical supervision sampling of qualified, the QZH1300 cutter won the provincial technical appraisal of new products, was awarded the title of famous and excellent technological products, master a number of national patents, has pentahedron gantry machining center, high precision vertical machining center and the robot plasma cutting machine, and so on computer numerical control equipment more than 150 sets, escort for the production of excellent quality products.
