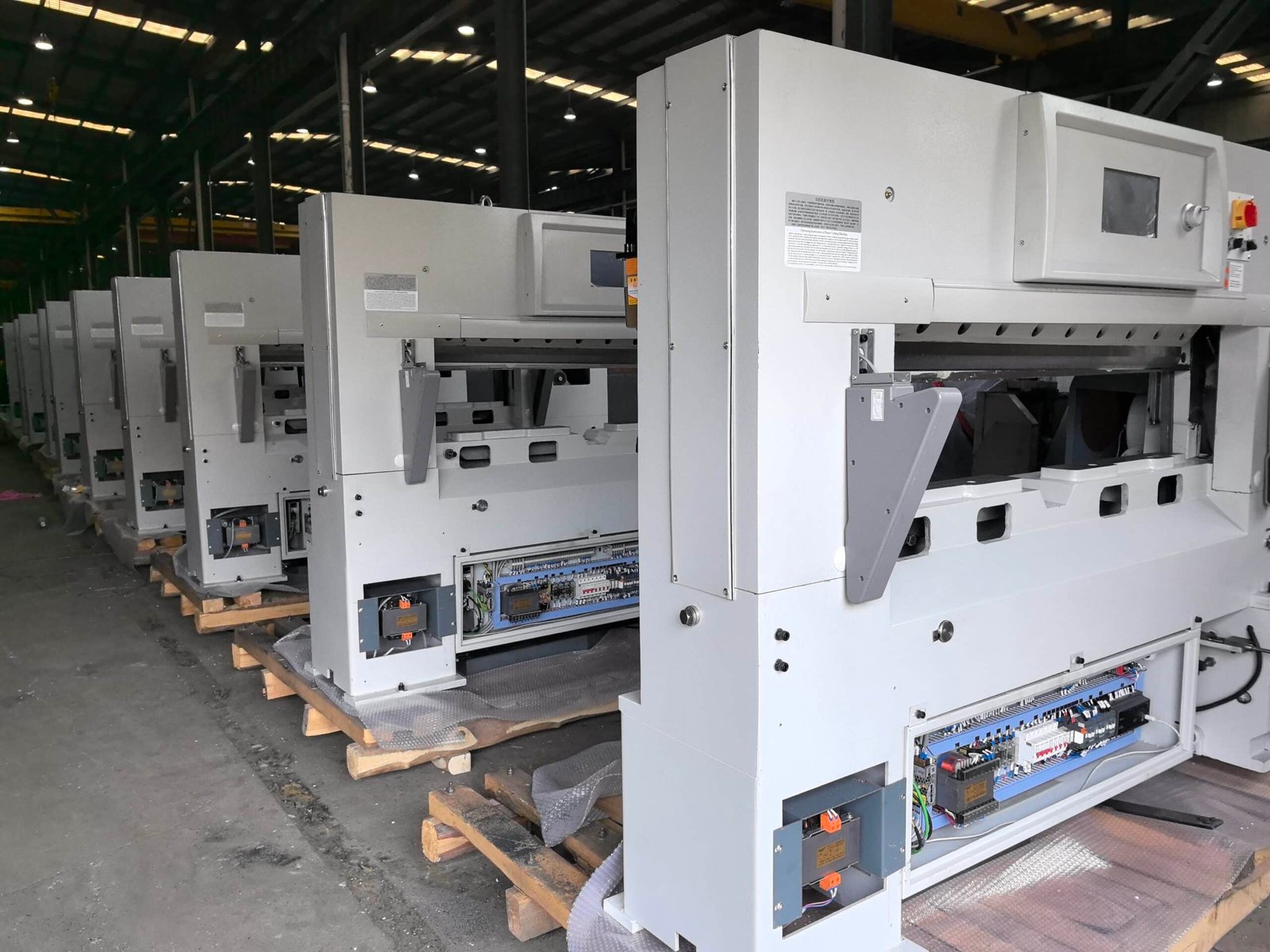

Row of new hydraulic paper cutting machines in warehouse with electrical control panels open for inspection and wiring verification.

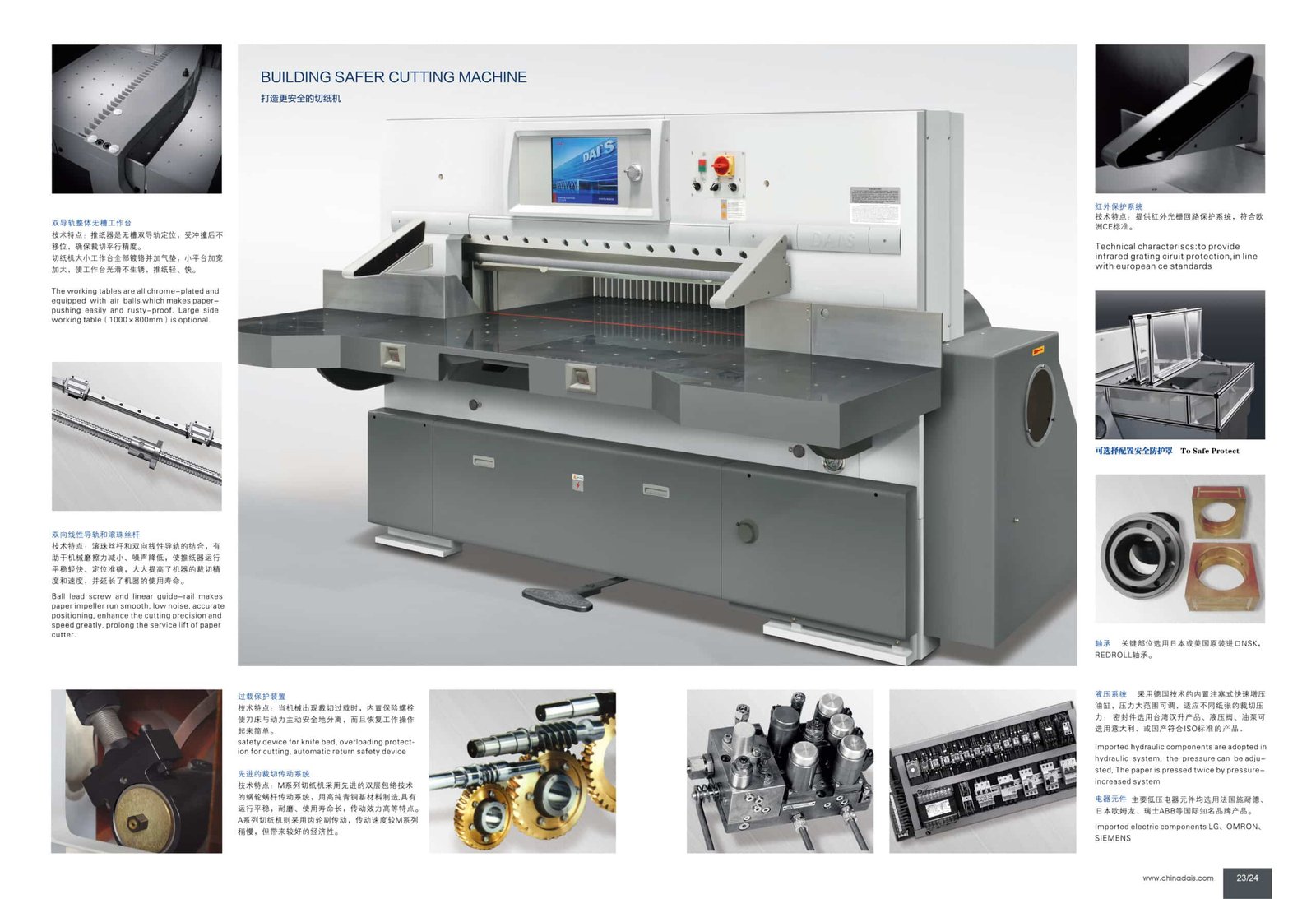

DAIS Industrial Paper Cutting Machine with Digital Control Panel and Safety Light Curtain Dual Linear Guide and Ball Screw System for Smooth Paper Feeding

QZK1150M10 Paper Cutting Machine

There is a relatively long maintenance interval.

There are various models, which are suitable

for all kinds of paper cutting operations,

featured with the remote fault online diagnosis

function. There is the European safety

standard certification, so that the operator is

proficient and can use it freely.

Product Parameters

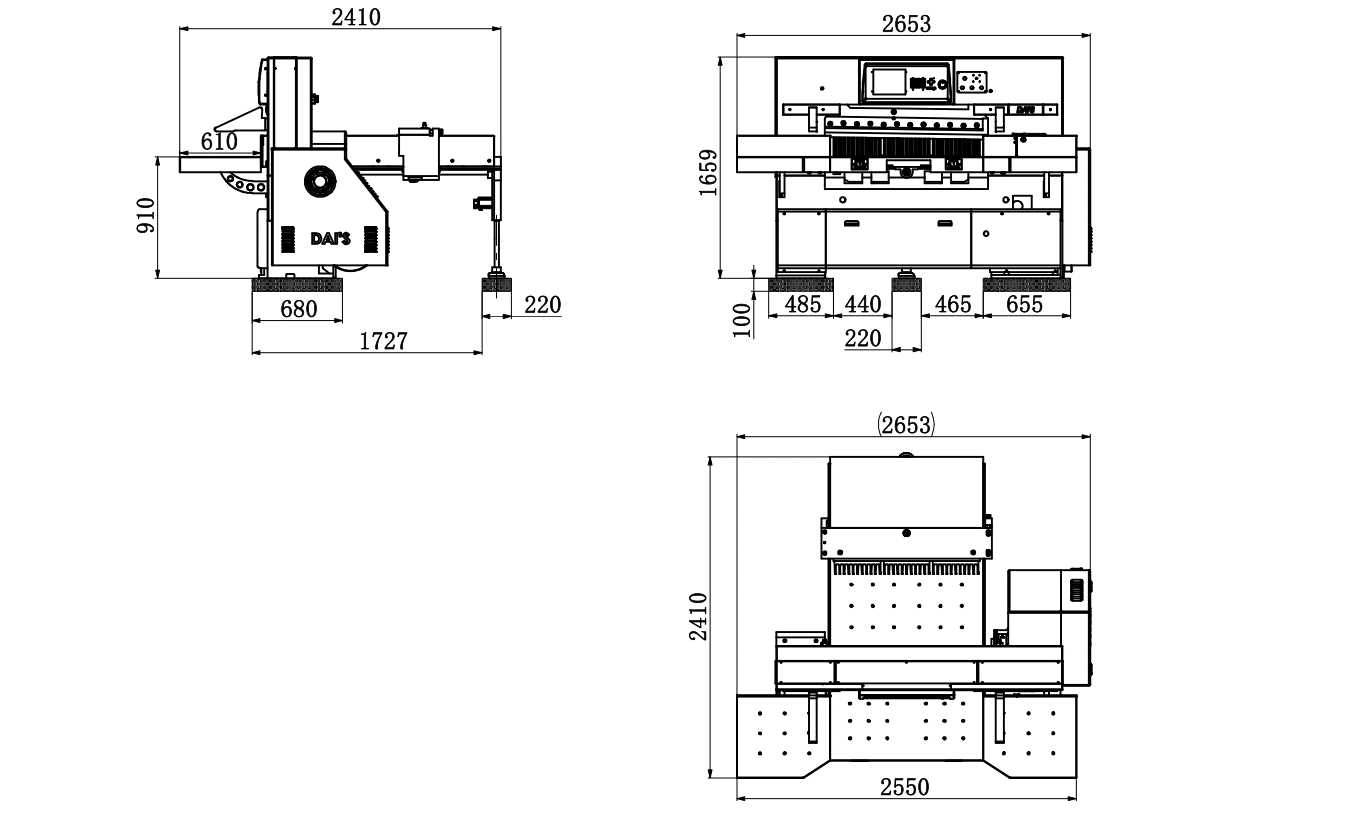

Installation drawing
Detail

Schneider AC contactor, Delixi air switch, Omron micro opening, NSK transmission bearing, 16 eye dual relay infrared protection, Hansheng sealing ring, linear guide rail and ball screw; Computer display system: 10 inch Taiwan LCD screen, with a program storage capacity of up to 10000 pieces, a paper pushing speed of up to 15 meters/minute, with fault self diagnosis function, data resolution of 0.01 millimeters, standard servo drive system, brand PLC. Paper cutting system: secondary enveloping turbine reducer, electromagnetic clutch, more stable and gentle cutting. The main motor is Yaojiang brand, with a power of 5.5KW. The air pump is manufactured by Zhejiang Sensen Group, with a power of 0.75kW and a large air volume, ensuring easy and flexible movement of the paper on the electroplating surface. Added convenient tool changing device, blade ejection device, and centralized oil supply device Hydraulic system: The height of the straight top oil cylinder is 160mm, and it is equipped with a secondary function of flexible paper pressing. The pressure of the pressing plate can be adjusted according to the material and material accuracy requirements

model	unit	QZK1150M10
Cutting width	mm	1150
Cutting length	mm	1150
The cutting height	mm	160
Front extension of bench	mm	700
Table height	mm	930
The motor power	kw	5.5
Maximum paper pressure	daN	5000
Cutting speed	times/min	42
The net weight	kg	3800
Overall dimensions	m	2.5×2.7×1.6
Packing size	m	2.65×1.7×1.9

The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table(1000X800mm) is optional

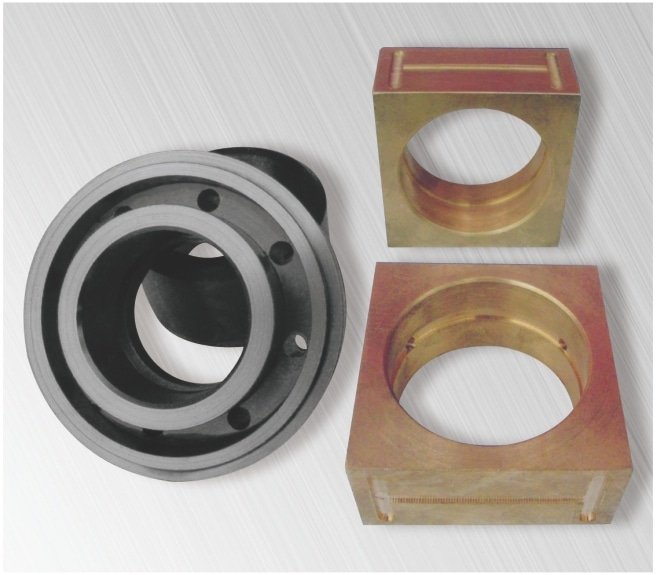

The critical bearing components are selected as NSK REDROLL bearings, originally imported from Japan or the USA.

Imported hydraulic components are adopted in
hydraulic system, the pressure can be adju- sted, The paper is pressed twice by pressureincreased system

Imported electric components LG、OMRON、
SIEMENS
