D1500SQ Auto Feeder Die Cutting Machine with Waste Stripping
Automatic flat pressure die cutting machine is the key equipment of paper card, carton, carton, trademark and other paper packaging and decoration supplies, die cutting indentation, cold pressure concave and convex. This machine adopts high precision intermittent mechanism, pneumatic lock, pneumatic clutch, manual pressure regulation and other unique transmission mechanism, to ensure the high speed and stable operation of the equipment. The key parts of the machine are all international famous brands, the main parts are all close CNC machine tool processing, using the machine to achieve the maximum capacity, highly safe and humanized operation interface.
| 1.die cutting | flat |
| 2.max.paper size | 1500*1100mm |
| 3.min.paper size | 550*500mm |
| 4.max.die-cutting size | 1490*1090mm |
| 5.min.mouth size | 8mm |
| 6.max.working pressure | 400t |
| 7.scope of application | White board ≥250g corrugated paper thickness≤9mm |
| 8.die cutting precision | ± 0.25mm |
| 9.max.working speed | 5000 r/h |
| 10.max.heap height | 1500mm |
| 11.max.paper collecting height | 1350mm |
| 12.main motor power | 18.5kw |
| 13.rated power | 35.5kw |
| 14.machine weight | 22t |

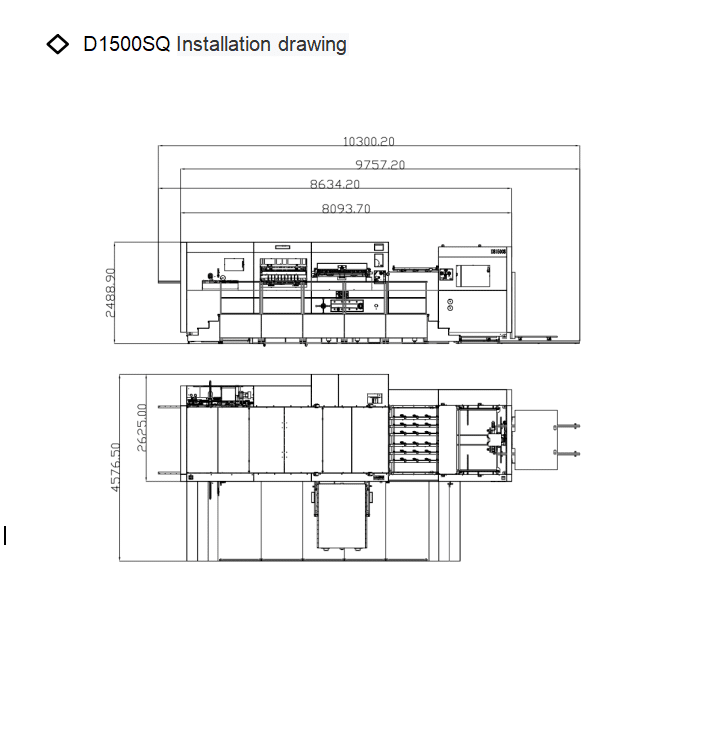

| 15.overall dimension | 10300X4577X2489mm |
Feida 、paper delivery part
European technology manufacturing precision Feida head cardboard, corrugated paper, and grey board paper are commonly used By controlling Feida through servo motors, the suction angle and height of the paper can be adjusted according to the deformation of the paper The suction angle and height can be adjusted according to the deformation of the paper Unique paper receiving mechanism, suitable for different deformations of paper The high-speed Feida head is made of special aluminum alloy material, and all parts are imported

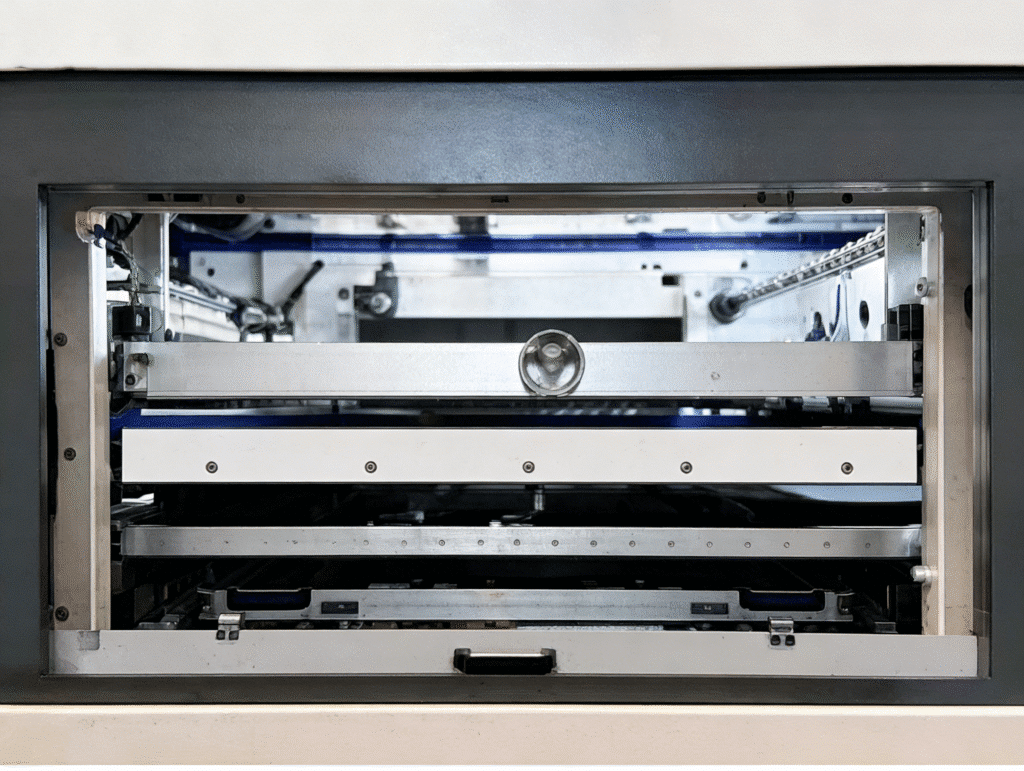

Die cutting part
* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.Taiwan imported ultra-wear-resistant worm gear and worm.Convenient and fast tool template turning device.
Plate waste stripping
Adopting a central positioning system, the calibration is fast and easy to adjust. It can achieve the removal ofinternal small holes,and completely remove the waste on
the outer three sides except for the waste on the edge of the biting paper.
Receiving department
* Automatic paper leveling device,paper receiving two-way blowing device to ensure. Thick and thin paper can collect paper neatly.
* Paper collecting department is equipped with control to realize more humane operation.
