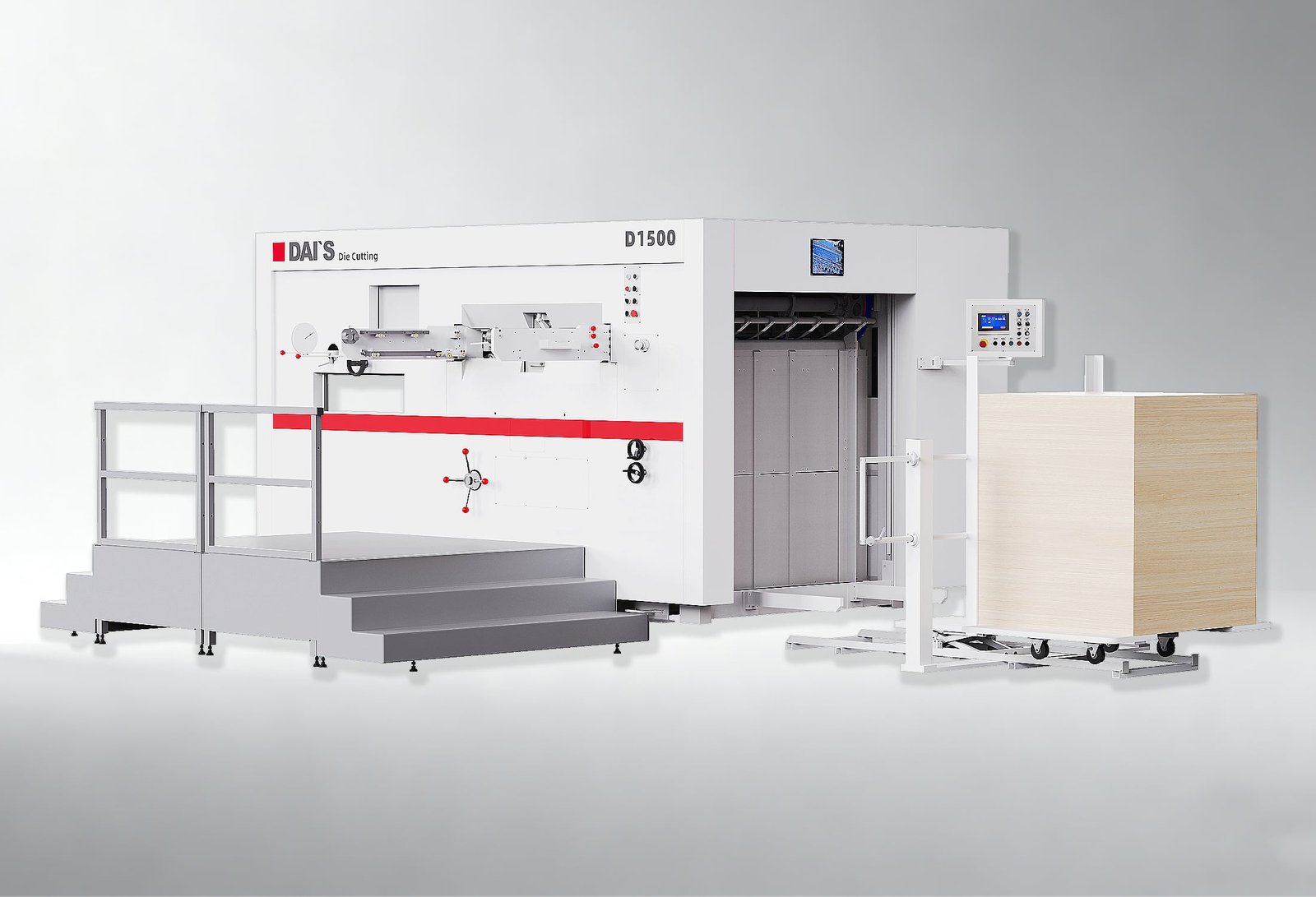

D1500 High-Speed Automatic Die Cutter for Carton Box

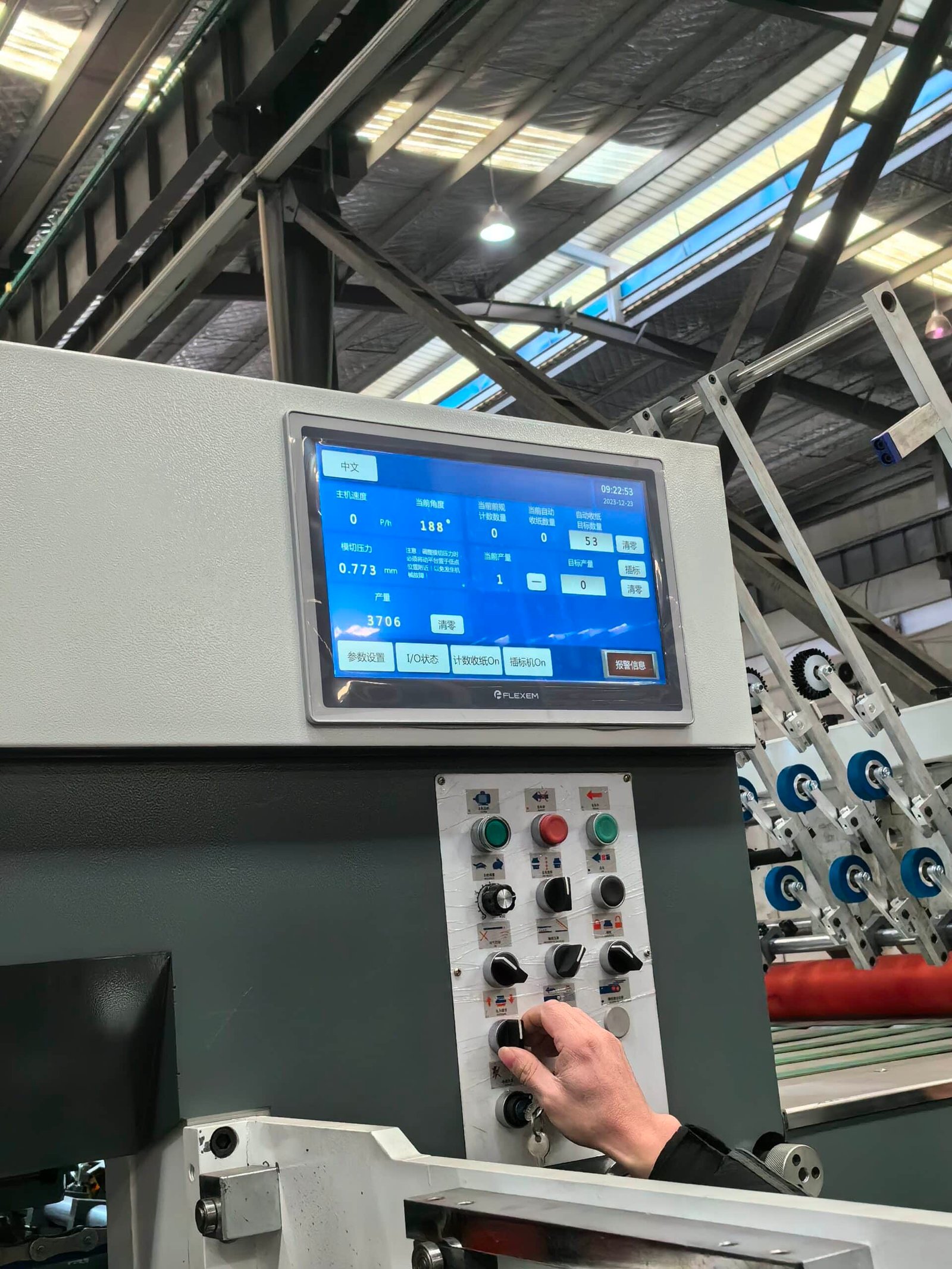

Semi-automatic leveling die cutting machine can be> 250g, <9mm cardboard, corrugated cardboard processing, suitable for cartons, cardboard boxes and other die cutting indentation, especially good at die cutting bending cardboard. The worm worm drives the crankshaft connecting rod, the single point pull rod pressure regulation is the core of the equipment stability, PLC programmable controller centralized control, realizing the full automation of paper feeding, die cutting, paper collection, and fault detection. The main motor is controlled by frequency converter, with pless variable speed and runs smoothly. Imported chain, main transmission shaft bearing and various switches using Taiwan Japanese products, excellent performance, high precision, long service life
| 1.die cutting | flat |
| 2.max.paper size | 1500*1100mm |
| 3.min.paper size | 550*500mm |
| 4.max.die-cutting size | 1490*1090mm |
| 5.min.mouth size | 8mm |
| 6.max.working pressure | 400t |
| 7.scope of application | white board≥250g corrugated paper thickness≤9mm |
| 8.die cutting precision | ± 0.25mm |
| 9.max.working speed | 5500 r/h |
| 10.max.heap height | 1500mm |
| 11.max.paper collecting height | 1350mm |
| 12.main motor power | 15kw |
| 13.rated power | 17.3kw |
| 14.machine weight | 16t |

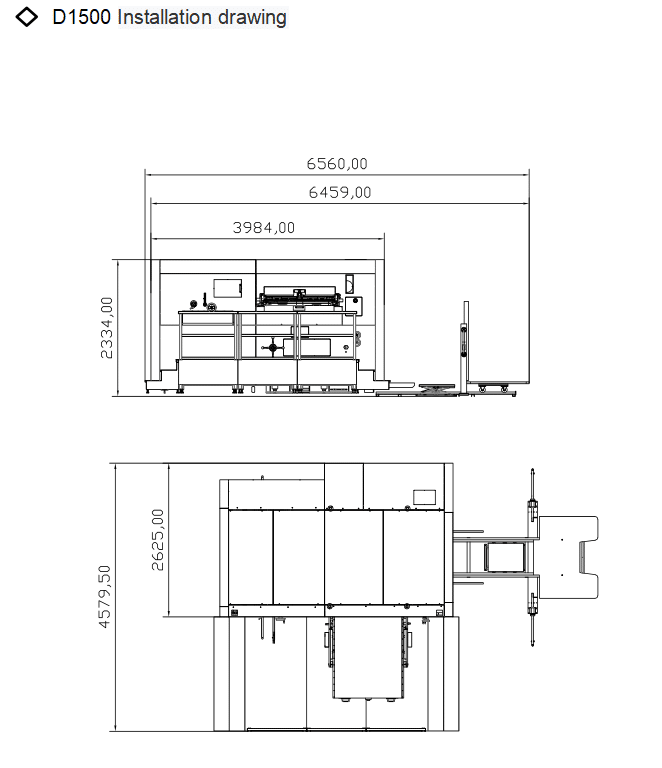

| 15.overall dimension | 6560*4580*2334mm |

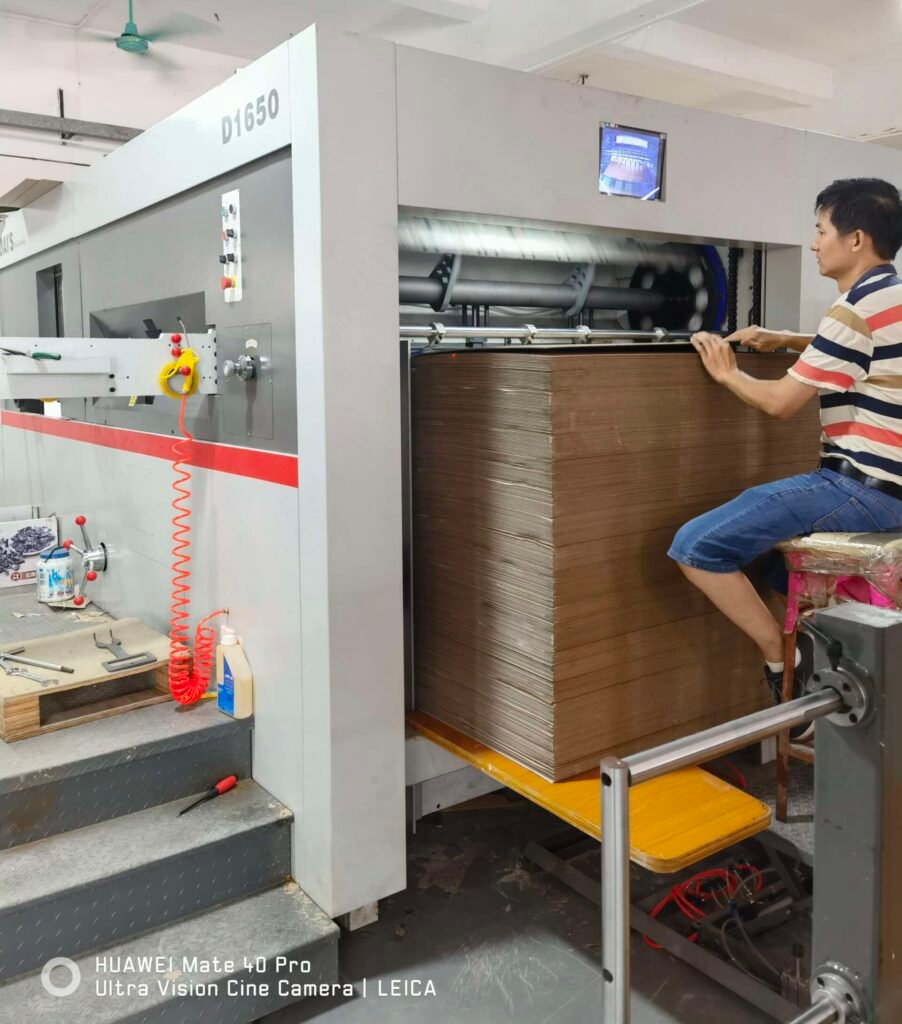

Place the product on the pre-coded paper stack and manually feed it into the paper structure.

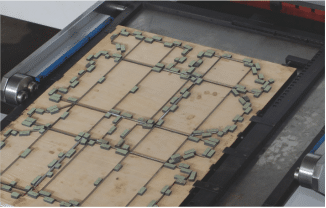

Die cutting part
* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation. Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.Taiwan imported ultra-wear-resistant worm gear and worm.Convenient and fast tool template turning device.

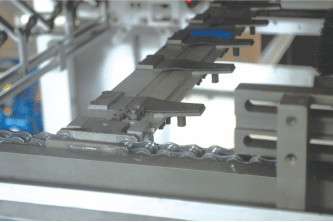

Front /side gauge
* Pre-test ensures paper arrival rate.Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

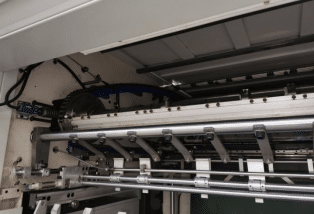

Receiving department
* Automatic paper leveling device,paper receiving two-way blowing device to ensure.Thick and thin paper can collect paper neatly.
* Paper collecting department is equipped with control to realize more humane operation.
DAI‘S PRINTING MACHINE CO.,LTD
Dai’s Printing Machinery Co., Ltd. is by production Postpress equipment has a long history of Ruian City, Zhejiang Province, Xinhua printing machine factory with the French Bafang company, in 1993 as a joint venture, planning a total investment of 19 million dollars, covers an area of 50000 square meters. Company name from the original NPC vice chairman Long Fei personally wrote, located in the beautiful scenery of Zhejiang Province Lishui City Economic Development Zone and Ruian international automobile and motorcycle fittings industrial park, the traffic is very convenient. So far, Dai’s main products have been sold in more than 50 countries and regions of the United States, Britain, France, Italy, Russia, Brazil and other.

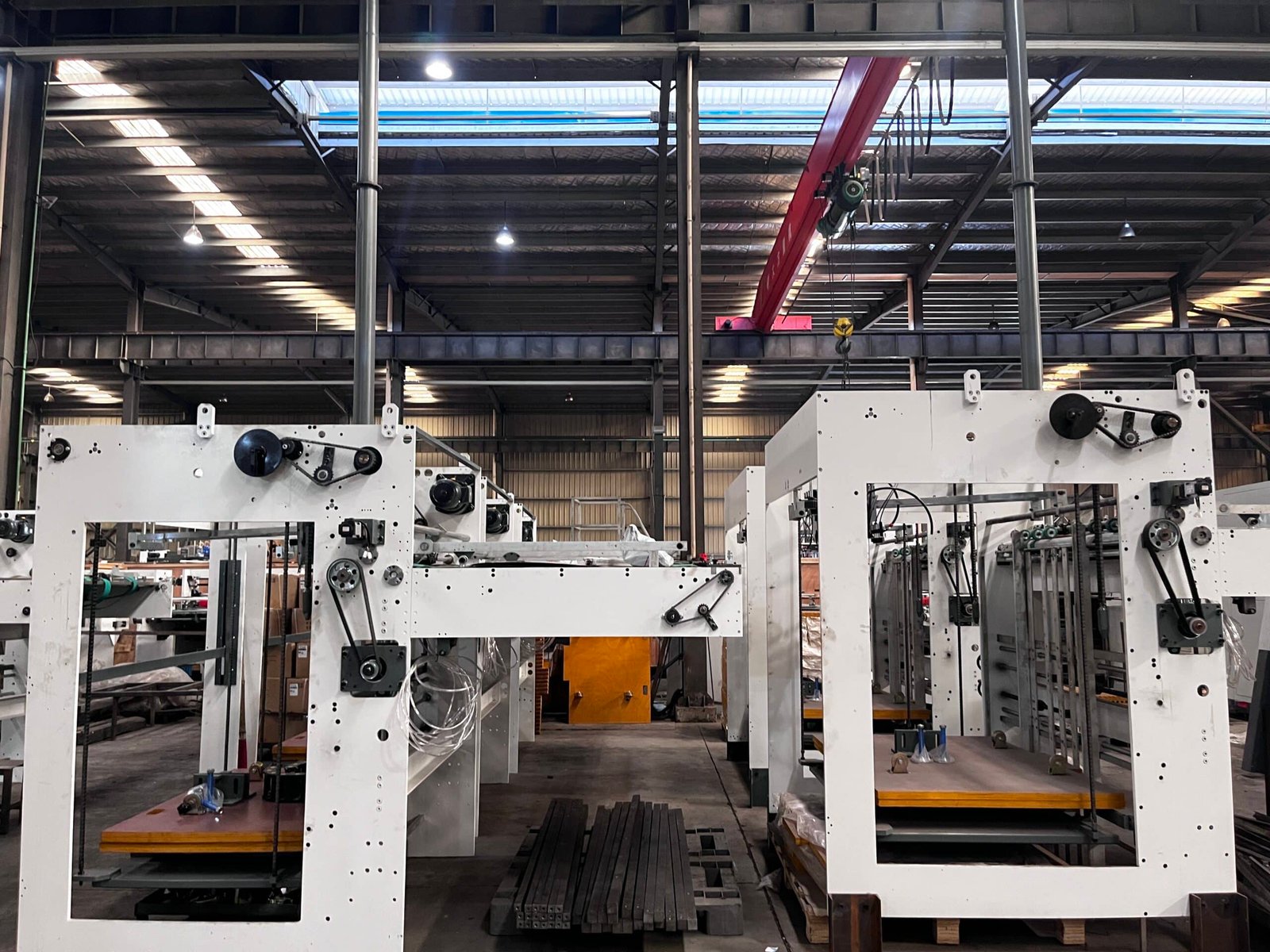

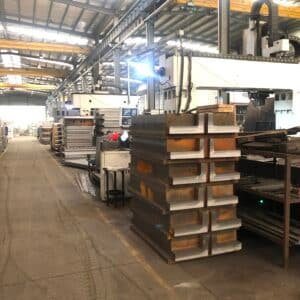

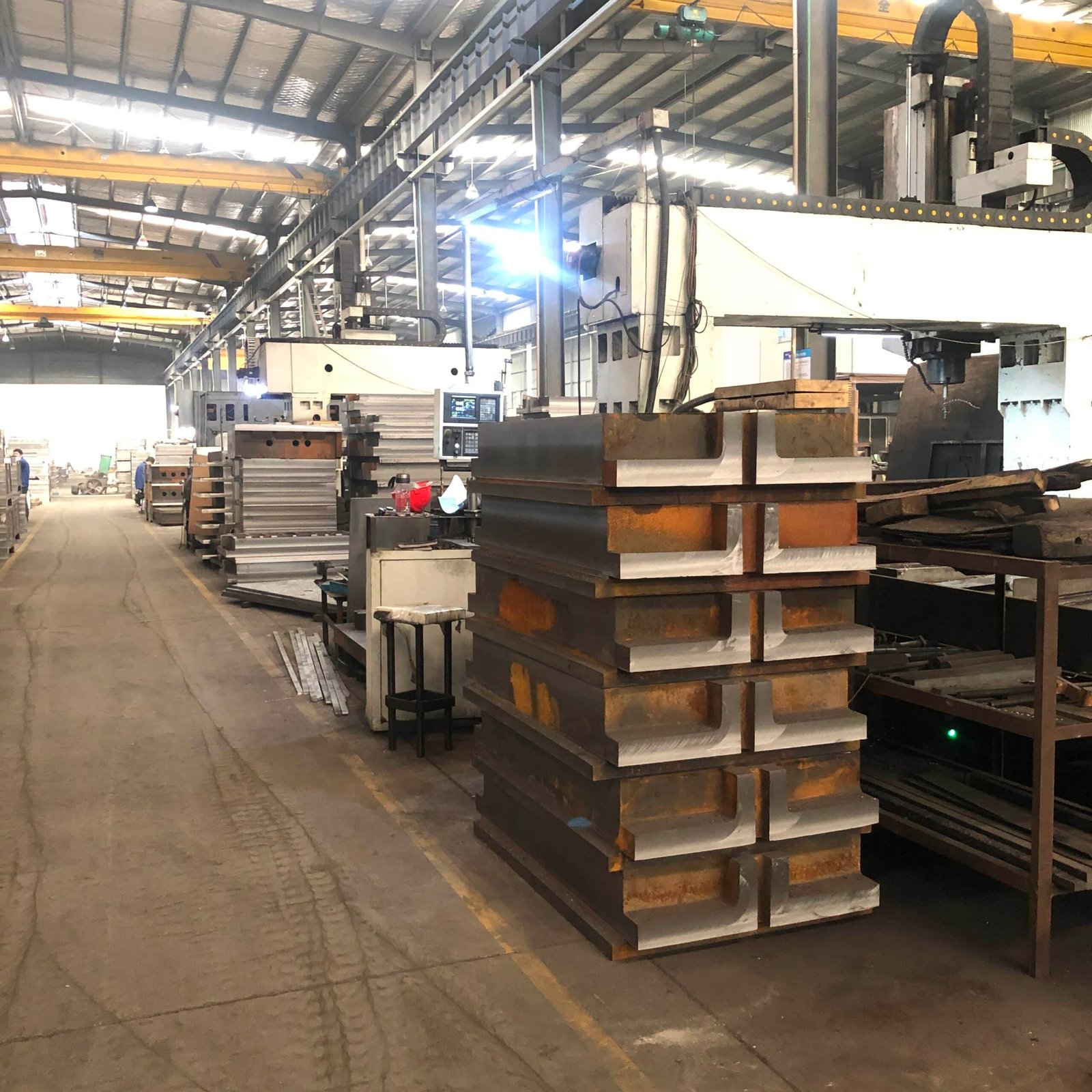

For more than 30 years, our glorious become member of China Printing Industry Printing Machinery Industry Association, and was the State Administration of quality and technical supervision sampling of qualified, the QZH1300 cutter won the provincial technical appraisal of new products, was awarded the title of famous and excellent technological products, master a number of national patents, has pentahedron gantry machining center, high precision vertical machining center and the robot plasma cutting machine, and so on computer numerical control equipment more than 150 sets, escort for the production of excellent quality products.
