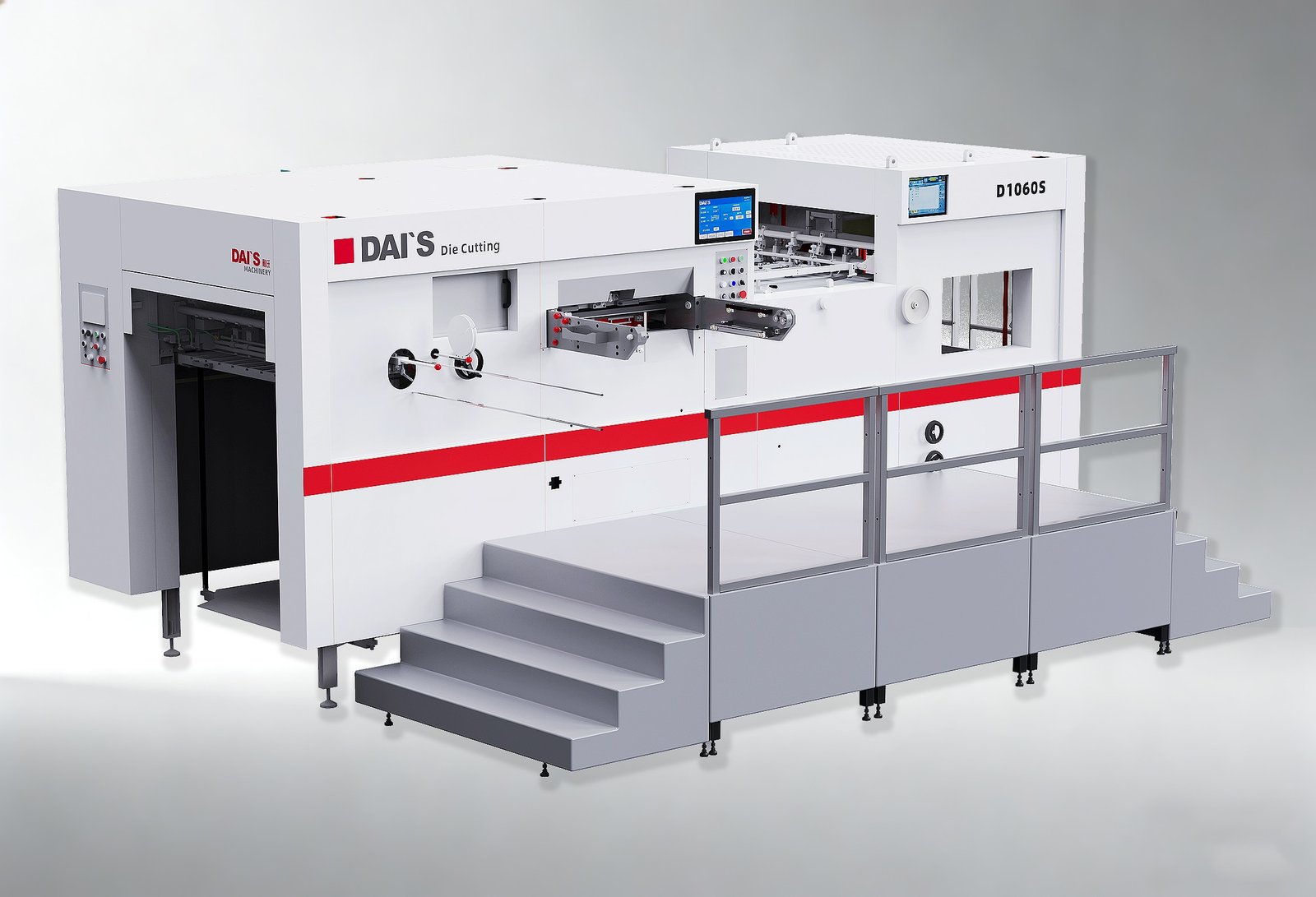

D1060S Paper Die Cutting Machine
平压模切机是纸卡、纸盒、商标等纸质包装及装饰用品的关键设备,用于模切压痕、冷压凹凸。本机采用间歇机构、气动锁、气动离合器、手动压力调节等独特的传动机构,确保设备高速稳定运行。关键部件均采用国际知名品牌,主要部件均由数控机床精密加工,最大限度地发挥了机器的性能,并配备了高度安全和人性化的操作界面。
- Product Parameters

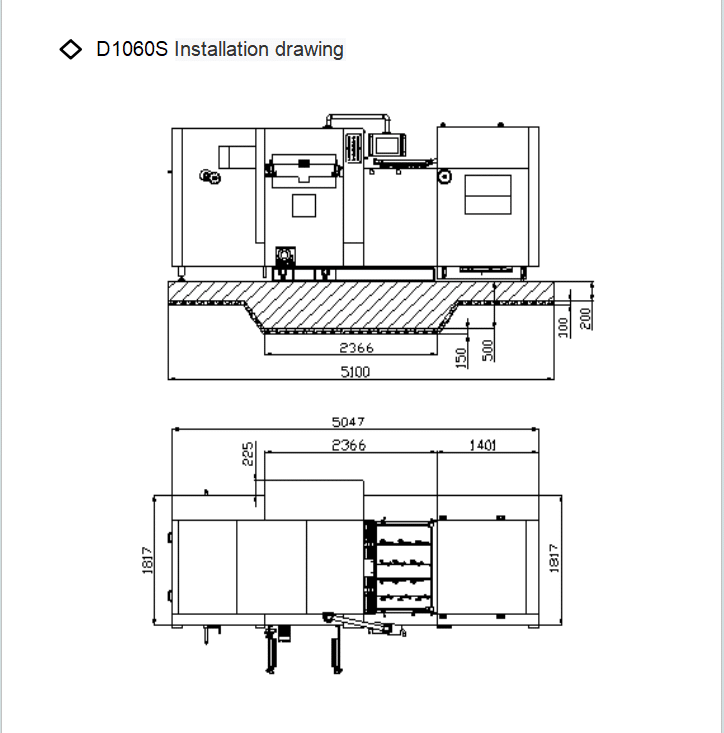

- Installation drawing
- Detail
| 1.模切 | 屋顶的 |
| 2.最大纸张尺寸 | 1060*760毫米 |
| 3.最小纸张尺寸 | 450*360毫米 |
| 4.最大模切尺寸 | 1050*750毫米 |
| 5.最小嘴巴尺寸 | 8毫米 |
| 6.最大工作压力 | 300吨 |
| 7.适用范围 | 白板≥100克 瓦楞纸厚≤9mm |
| 8.模切精度 | ±0.1毫米 |
| 9.最大工作速度 | 7500转/小时 |
| 10.最大堆高度 | 1600毫米 |
| 11.最大纸张收集高度 | 1500毫米 |
| 12.主电机功率 | 11千瓦 |
| 13.额定功率 | 18.6千瓦 |
| 14.机器重量 | 14吨 |
| 15.整体尺寸 | 6823*4048*2182毫米 |

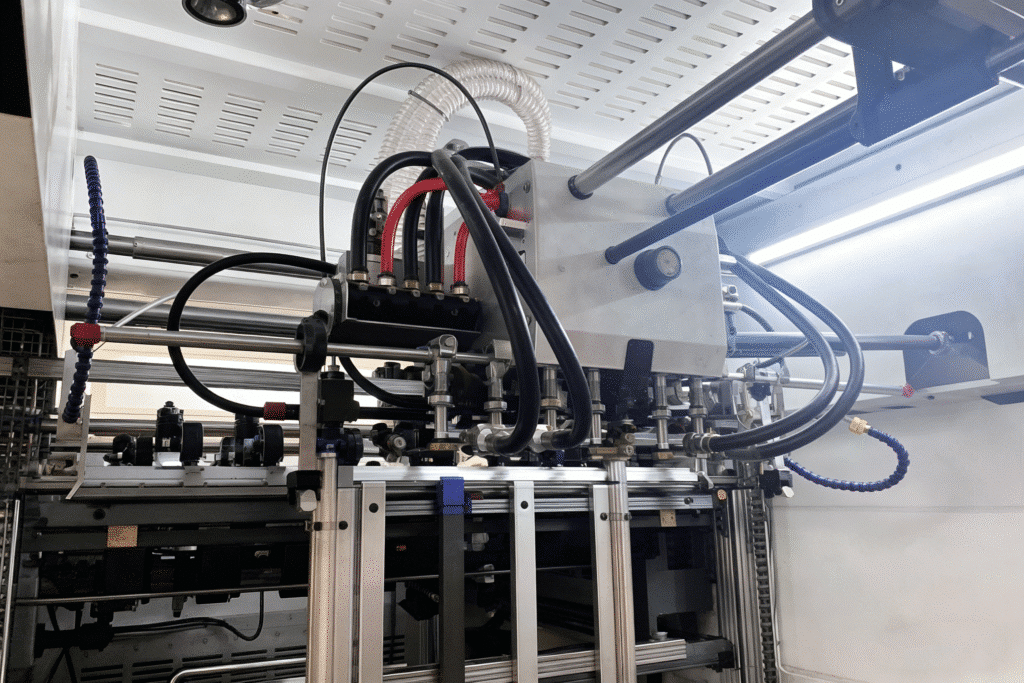

飞达、纸张组成部分
采用欧洲技术制造的精密飞达吸头,适用于纸板、瓦楞纸和灰板纸等常用纸张。飞达吸头通过伺服电机控制,可根据纸张变形情况调节吸纸角度和高度。独特的接纸机构,适用于不同变形的纸张。高速飞达吸头采用特殊原材料制成,所有部件进口。
模切部件
承压部件采用高强度球墨铸铁QT600-3,经特殊工艺铸造,具有高强度和永久变形能力。曲轴采用德国进口钢材,经特殊工艺处理,材质为镍铬钼金钢。蜗轮蜗杆和蜗杆均采用台湾进口超耐磨材料。配备便捷的快速刀具模板车削装置。

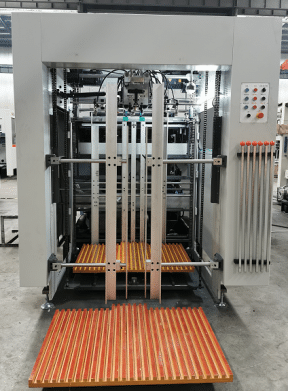

前/侧仪表板
预确保测试纸张满足率。采用左右双推拉式量规,满足不同的印刷套准要求。
钢板压纸,力道均匀可靠。
送纸开关防盗操作装置下方装置
双飞达头碰撞检测装置,需不需要可切换主辅送纸机构;可选预编码纸张机构套件;鱼鳞式送纸机构,平稳精准;送纸台调节机构,可连续调节;双用途送纸台;配备一套辅助纸张支撑杆和两套纸板支撑板;配置15英寸人机界面和7英寸辅助电脑屏幕;配置高清实时生产监控屏幕;配置电脑电压调节。
